Hi all,

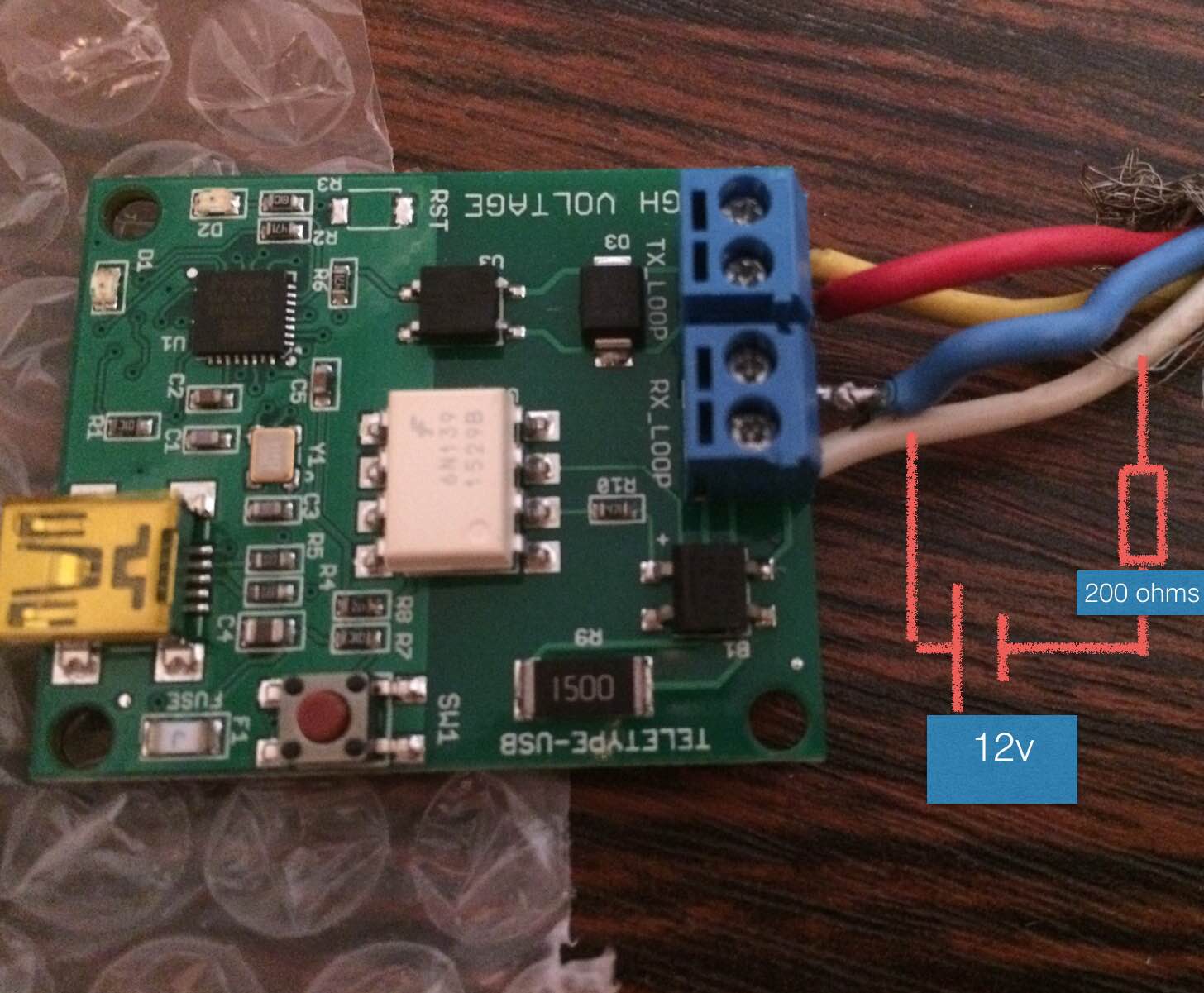

Could you please have a look to the photograh I joined and confirm me
that I have understood well : an old PC power supply for the 12v and a 200
ohms resistor linked to the blank wire.
Thank you!
Bests regards,
Julien
