[GreenKeys] teletype motor with the 'night light' on it!

[Richard Knoppow]

    At 60Hz there is enough flicker from a low wattage incandescent lamp
to work a strobe disc, for instance the little discs once sold for
checking phonograph turntable speed.
    BTW, when I was a kid my parents visited the Canadian side of Niagra
Falls, the power there was 25Hz, I could never get quite used to the
flicker.

On 2/27/2016 8:18 AM, Ed Sharpe Archivist for SMECC via GreenKeys wrote:
> Ok   got it!
> I  figured the    incandescent  light  would not on off on off  to
> well at  60 Hz....
> Ed!
> In a message dated 2/27/2016 4:45:32 A.M. US Mountain Standard Time,
> ka2ivy at verizon.net writes:
>
>
>
>     The light is to shine across the paint stripes  so they can be
>     viewed through the shutter on the tuning fork when setting the
>     motor speed. When it's done right, the strobe effect is easy to
>     see. There isn't much noticable flicker when the bulb is lit by 60
>     cycles, on 25 cycles the flicker is so far off from the strobe
>     speed that the only effect is the image of the stripes growing
>     brighter and dimming.  At the correct speeed, they will stand
>     still like they do on 60 cycles or DC.
>
>            Bruce Gentry, KA2IVY
>
>     On 2/27/16 2:54 AM, Ed Sharpe Archivist for SMECC via GreenKeys wrote:

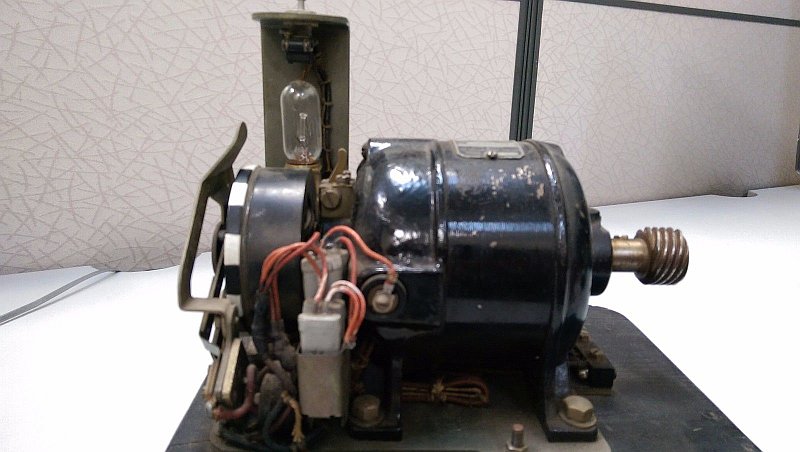

>>     *teletype motor with the /'night light'/ on it! *
>>     ebay  141913812722  -  of  course they say it  is ... 'stream
>>     punk..<<grin!>>
>>
>>     But  riddle me this.... does the incandescent  lamp  really
>>     give a 60 hz  strobe effect
>>      so you can time this or is the  'night light'  just to  light a
>>     tuning fork?
>>     Added  question is this sitting on a  shipping board or!?!?!?!
>>      What  mode  TTY  should this  be in!?
>>     Ed Sharpe archivist  for SMECC www.smecc.org
>>
>>
>>     ______________________________________________________________
>>     GreenKeys mailing list
>>     Home:http://mailman.qth.net/mailman/listinfo/greenkeys
>>     Help:http://mailman.qth.net/mmfaq.htm
>>     Post:mailto:GreenKeys at mailman.qth.net
>>
>>     2002-to-present greenkeys archive:http://mailman.qth.net/pipermail/greenkeys/
>>     1998-to-2001 greenkeys archive:http://mailman.qth.net/archive/greenkeys/greenkeys.html
>>     Randy Guttery's 2001-to-2009 GreenKeys Search Tool:http://comcents.com/tty/greenkeyssearch.html
>>
>>     This list hosted by:http://www.qsl.net
>>     Please help support this email list:http://www.qsl.net/donate.html
>>     Message delivered toka2ivy at verizon.net
>
>
>
>     ______________________________________________________________
>     GreenKeys mailing list
>     Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>     Help: http://mailman.qth.net/mmfaq.htm
>     Post: mailto:GreenKeys at mailman.qth.net
>
>     2002-to-present greenkeys archive:
>     http://mailman.qth.net/pipermail/greenkeys/
>     1998-to-2001 greenkeys archive:
>     http://mailman.qth.net/archive/greenkeys/greenkeys.html
>     Randy Guttery's 2001-to-2009 GreenKeys Search Tool:
>     http://comcents.com/tty/greenkeyssearch.html
>
>     This list hosted by: http://www.qsl.net
>     Please help support this email list: http://www.qsl.net/donate.html
>     Message delivered to couryhouse.smecc at gmail.com
>
>
>
> ______________________________________________________________
> GreenKeys mailing list
> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:GreenKeys at mailman.qth.net
>
> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html
> Message delivered to 1oldlens1 at ix.netcom.com

--
Richard Knoppow
1oldlens1 at ix.netcom.com
WB6KBL
