[GreenKeys] Need Picture of board placement in the ST-6

[tony.podrasky]

Hi Eric & al;

Thanx for the picture.

The ST-6 manual I have says that 1/2 the board having the
components facing left and the others facing right...

Steve - yes, if it's not too much trouble, please send me
a picture of your ST-6 - and we'll see if your looks like
Erics. If so, I'll check some of the wiring and see if it
was a typo in the manual.

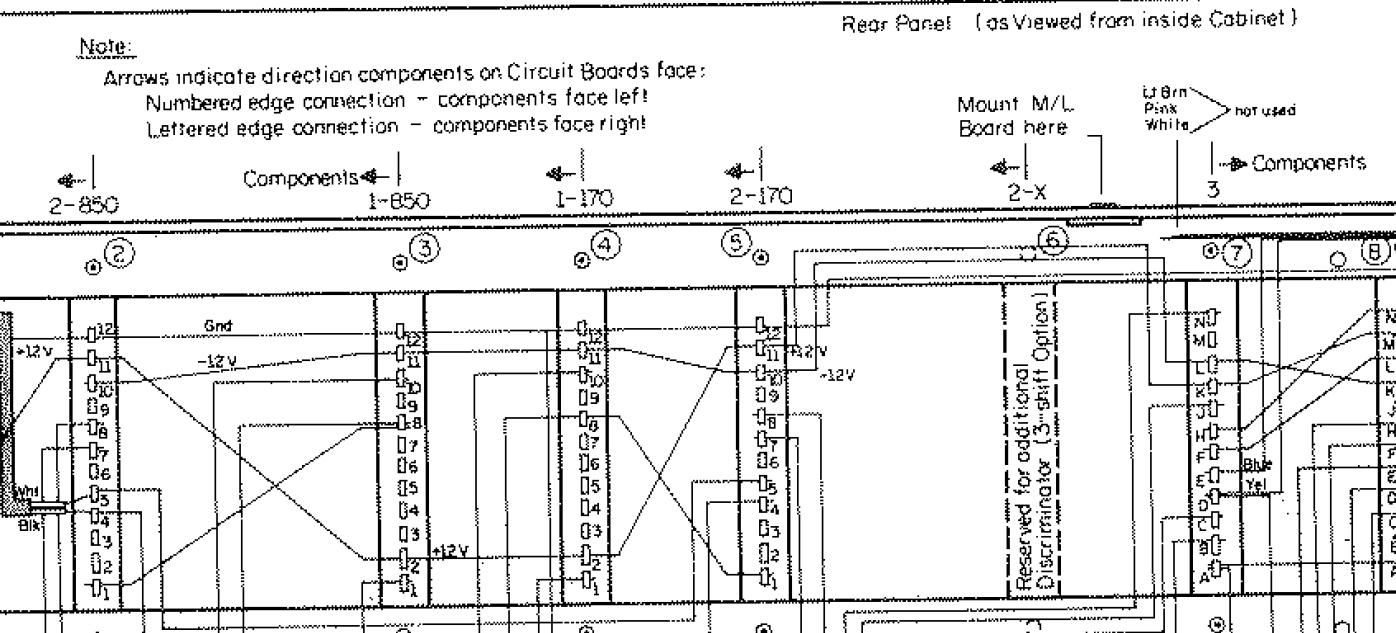

Attached is a picture of the slots (back plane).


On 02/20/2016 11:20 AM, epvgk at limpoc.com wrote:
> On Fri, Feb 19, 2016 at 09:20:18PM -0800, tony.podrasky wrote:
>> GN OMs;
>>
>> Does anyone have a picture of the board placement inside the ST-6?
>>
>> I've got the boards and the cabinet - and I know what each board
>> is - but I don't know what slot most of them go into. The AK-1
>> is far left and the P/S far right.
>>
>> UE,
>> K2EAA - TONY
>> NNNN
>> ZCZC
>
> Here's the inside of mine.  http://teletweety.com/st6.jpg
>
> I've labeled all the board positions. In case it's hard to read from
> the picture, from left to right:
>
>
> AK-1
> 850 Discriminator
> 850 Input
> 170 Input
> 170 Discriminator
> Keyer
> Autostart
> Power Supply (component side facing right, unlike all other boards)
>
> eric
>
>>
>> --
>> I've been thinking about all my cool electronic
>> gadgets and how they've never brought me any real
>> happiness. I guess it's because I don't have
>> enough of them.                     -Matt Diamond
>> ______________________________________________________________
>> GreenKeys mailing list
>> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>> Help: http://mailman.qth.net/mmfaq.htm
>> Post: mailto:GreenKeys at mailman.qth.net
>>
>> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
>> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>>
>> This list hosted by: http://www.qsl.net
>> Please help support this email list: http://www.qsl.net/donate.html
>> Message delivered to epvgk at limpoc.com
> .
>

--
Why does your dog keep staring at me and growling?
  Because he thinks you're stealing food from him.
   Why would he think that?
    Prolly 'cuz that's his bowl you're eating out of...
                                   - Tony J. Podrasky
-------------- next part --------------
A non-text attachment was scrubbed...
Name: st-6_backplane.jpg
Type: image/jpeg
Size: 174238 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20160220/77a96583/attachment-0001.jpg>
