On Fri, Feb 19, 2016 at 09:20:18PM -0800, tony.podrasky wrote:
> GN OMs;
>
> Does anyone have a picture of the board placement inside the ST-6?
>
> I've got the boards and the cabinet - and I know what each board
> is - but I don't know what slot most of them go into. The AK-1
> is far left and the P/S far right.
>
> UE,
> K2EAA - TONY
> NNNN
> ZCZC

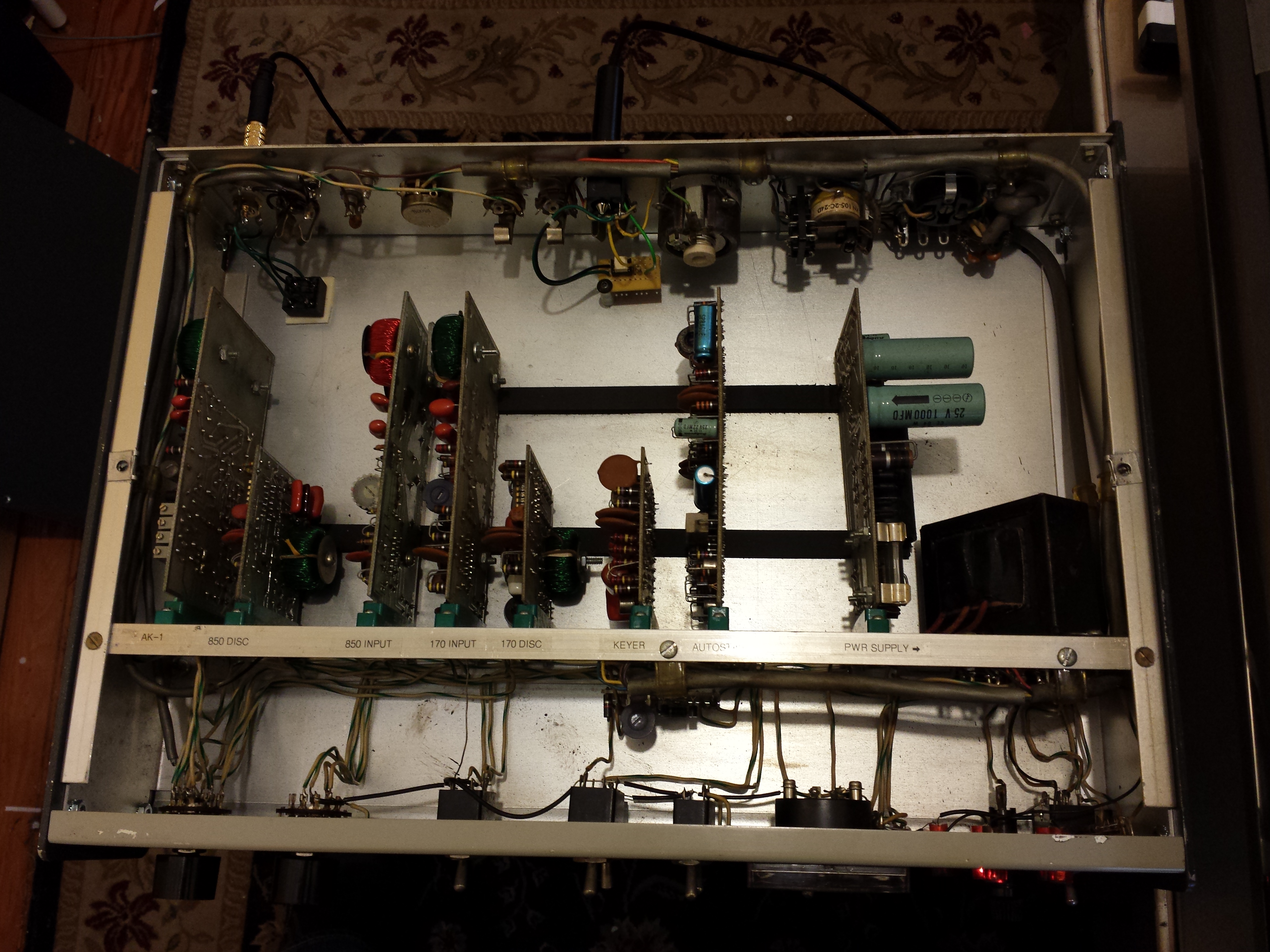

Here's the inside of mine.  http://teletweety.com/st6.jpg

I've labeled all the board positions. In case it's hard to read from
the picture, from left to right:


AK-1
850 Discriminator
850 Input
170 Input
170 Discriminator
Keyer
Autostart
Power Supply (component side facing right, unlike all other boards)

eric

>
> --
