Anyone ever heard of a Collins 709D-1FSK keyer/exciter and /or have any
info on it?  We just got one in at the AWA Museum.  I looked on the
Internet and could not find any mention of it.  (I did find mention of a
Collins 709B-1, but it was about 10 times bigger and black wrinkle
painted, so apparently a much older version.)

Scratched into the crystal oven case was number in the 3200 range; so
apparently the unit directly FSKs the crystal and then the unit drives
the transmitter in place of a regular crystal or VFO.

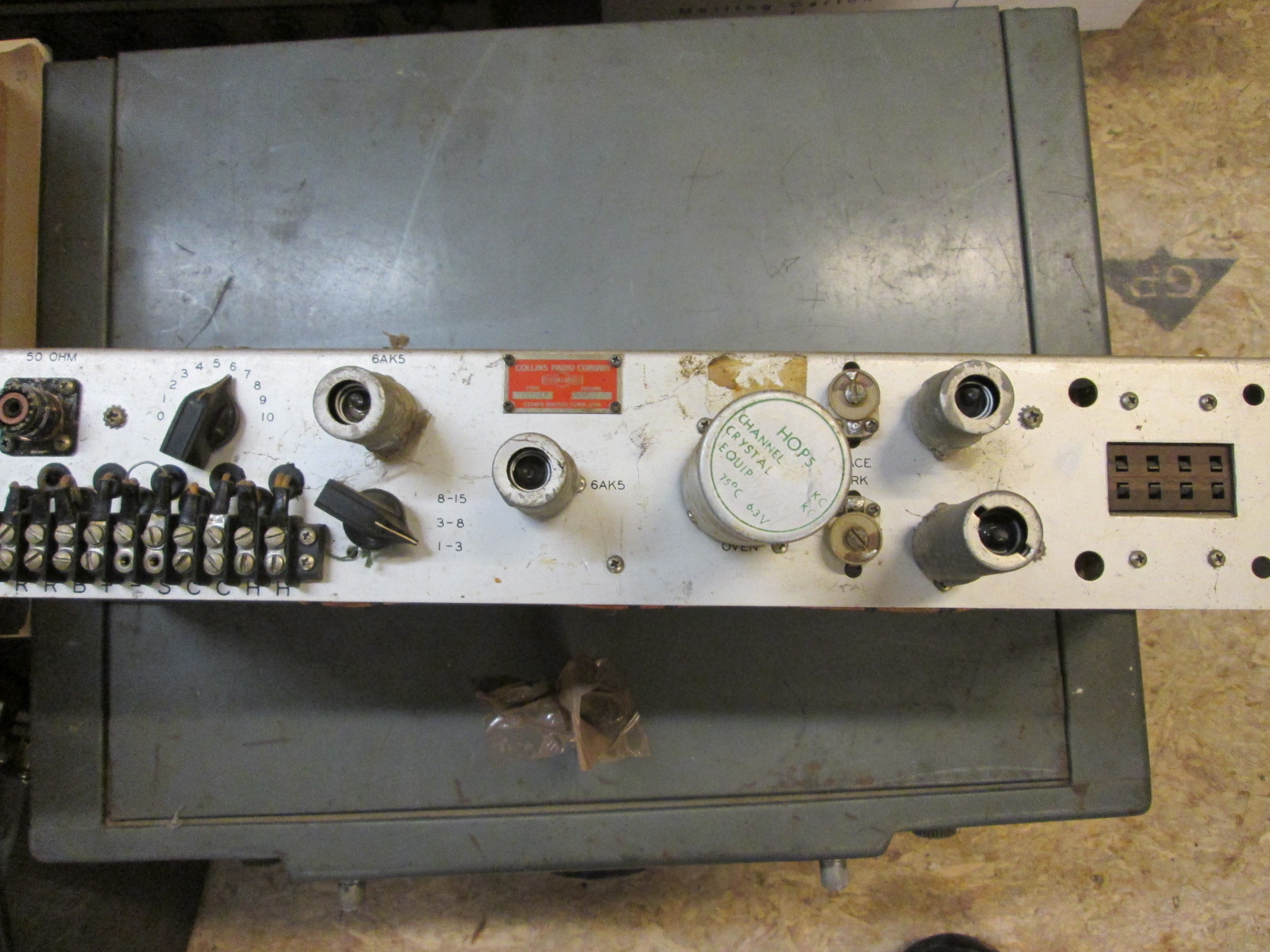

Picture enclosed.  Any comments on this unit would be appreciated.

Thanks & 73,

Duncan Brown, K2OEQ
USASA  31J30

Antique Wireless Association Museum Asst. Curator, Commercial Equipment
(also Chief TTY operator & repairman)
