Jim, W0EB:

The old equipment ran better than some of todays' junk because it was built
 to last
and built to be reliable at a time when the military demanded quality from
industry.

Dave
----------------------------------------------------------------------------
-------------------------------------




In a message dated 12/17/2013 6:10:27 P.M. Eastern Standard Time,
duncanancy at earthlink.net writes:



Jim,

Welcome1

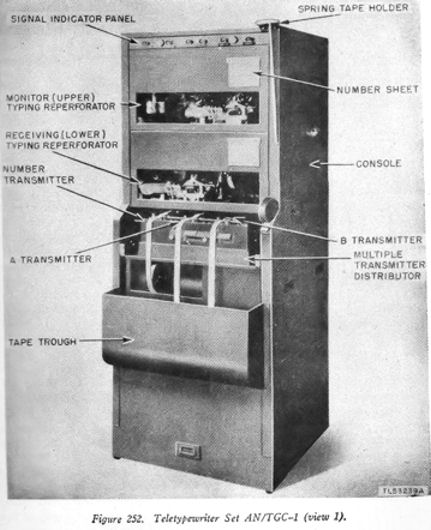

The "Coke Machine" you refer to  was probably an AN/TGC-1, the first of the
"store & forward", torn-tape  relays.  It was made by Teletype Corporation.



There is only one or two of  these still around that anyone knows about.
One is owned by K6OSM.   Later, both Teletype Corp. & Kleinschmidt Labs made
fancier ones,  generally 6 or 12 channels.

I was an Army-trained TTY repairman.   In 1966, we trained on both the
M14/15/19 and on the Kleinschmidt TT-4/98/76,  FGC-25.  Also trained on the
TGC-1, though it was obsolete at the  time.  I guess it was just to give us a
feel for tape relay  equipment.

have fun,

Duncan Brown, K2OEQ
USASA   31J

Antique Wireless Association Museum Asst. Curator, Commercial  Equipment
(also Chief TTY operator & repairman)
http://www.antiquewireless.org/

On 17-Dec-13 11:47, Jim Sheldon wrote:


Hi all -- Been an RTTY enthusiast/operator since I was first licensed in
1963.  I was in the Army, stationed in Northern Japan at the time.  Over the 3
years I was there I got to work with a whole bunch of older Teletype Corp.
Model 14, 15, 19 and there ancillary equipment.  I was operating the base
MARS station during the big earthquake that tore up Anchorage, Alaska back
then and because of our location, propagation wise, we handled most of the MARS
health & welfare between Elmendorf AFB and the U.S.  We had one unique
piece of equipment that we called the "Coke Machine".  Not sure what company
made it but it was a stack of typing reperforators and
transmitter/distributors.  Receivers were Collins R-390A's and the transmitters were OLD (even then)
BC-610's that ran about 400 watts out.  We did have one huge 5KW CW/RTTY
transmitter (don't remember the number but it used a pair of 833 triodes in
push/pull).  We were set up to receive & transmit simu

 ltaneou

sly on several frequ

 encies and picked up the traffic from Elmendorf on 8.080 MHz,
re-transmitting it to AF Headquarters in Hawaii on 14.832 MHz.  The typing reperfs were
punching tape and when it got long enough, we fed the tape into the T/D's
for re-transmission.  We also were communicating directly with Hawaii on
13.995 MHz using another BC-610 and Model 15 so if they got a garbled message, we
could stop the tape and either back it up or break the bad msg out and feed
it into the T/D on the "order wire" re-running it until they got it.



Haven't had to do anything anywhere near that hectic in the years since,
but we really wound up with a sense of accomplishment and a lot of thank-you
letters from the Army, Air Force and the recipients of the messages.  Amazing
that the mechanical machines ran better then than some of the electronic
stuff we use today - LOL.



Jim - W0EB

Park City, KS



Retired Army Sergeant

Retired Master Electrician
