[GreenKeys] RPE28 Reperforator

[Duncan Brown]

On 15-Dec-13 12:20, Roy Morgan wrote:
>> ... The "Single Magnet" name was to differentiate between the earlier, multiple magnet units, that were multiplexed using parallel transmissions.
> I did see the magnet down in there.
It has what you would think of as a "standard" selector mechanism with
two coils.

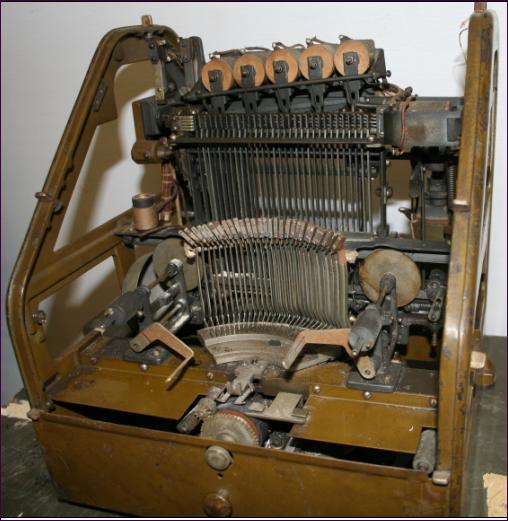

The parallel units had five solenoids across the top (one for each bit)
and  they used the standard Baudot/Murry code. There was also a "print"
solenoid that was the address line (think "chip select") The AWA Museum
has a Kleinschmidt Electric  Co. Model 20A, c1920, made for Western Union:



There was a similar Morkrum model, the 21A.


>> I have never seen or heard of anything that would read a tape and then type on it.
> Not surprised, but the world of teletypes is full of odd machines.
>
> Roy Morgan

The Navy had units that would convert CW to Baudot and Baudot to CW.
See http://www.navy-radio.com/


Duncan
K2OEQ



---
