[CW] Hollow state keyer

[John]

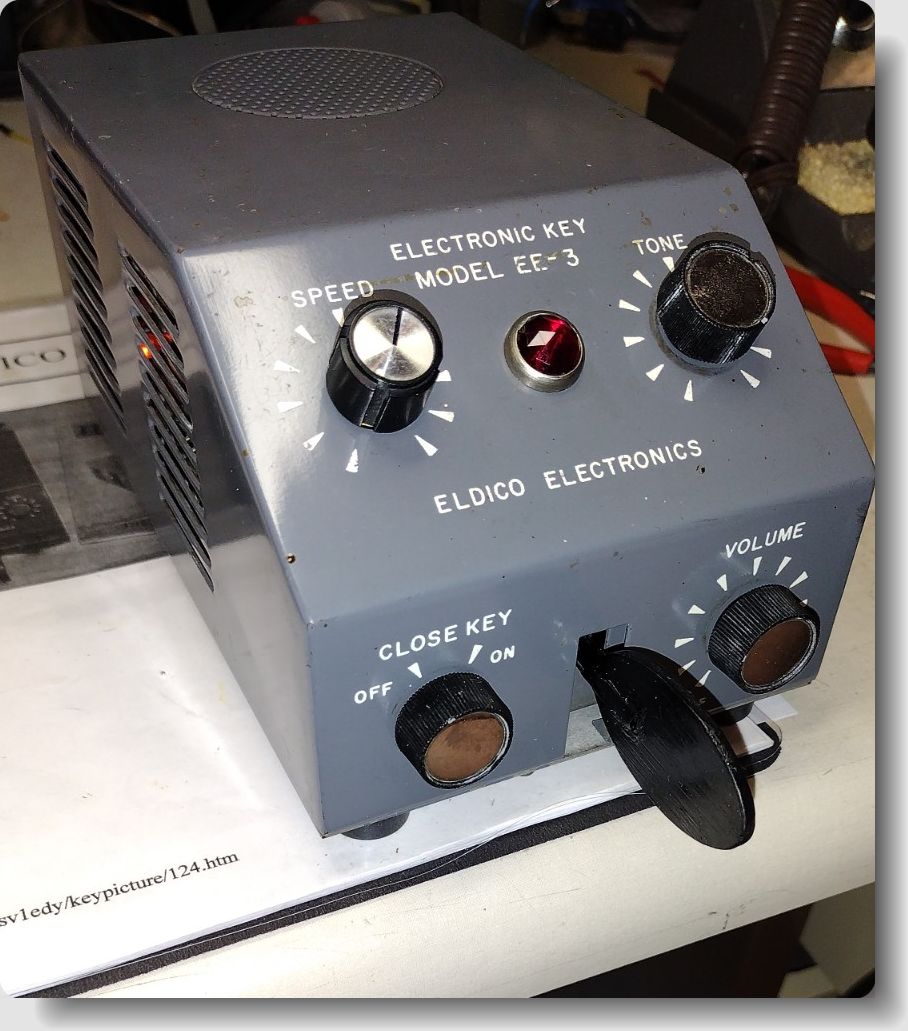

I picked this Eldico keyer up at a recent hamfest, and did some repair
(rectifiers/filter caps/timing circuit) and it's working well now.

The mechanical portion of the thing is interesting. The whole  works seems
to be mounted in a black resin cast housing which is then machined and
fitted with the paddle arm and the adjustment screws for travel and
centering.   While the spacing of the arms is a bit wide for my tastes, the
adjustment screws don't want to  budge.  I've broken enough things in a
similar state to leave well enough alone and use it as is, rather than
getting out the TorqueMaster screwdriver.

The relay ticking away with the CW is kind of soothing!

John K5MO

PS: Next up: The M&M Electronics "Dah Ditter"
