[CW] Vibroplex Champion Question

[D.J.J. Ring, Jr.]

If you are talking about hitting the top or the bottom of the damper
wheel, the adjustment is the trunnion adjustment screw located below
the trunnion and accessible by a slotted screw on the underside of the
bug.

The Lightning Bug, Champion and Zether all used the same vibrator parts.

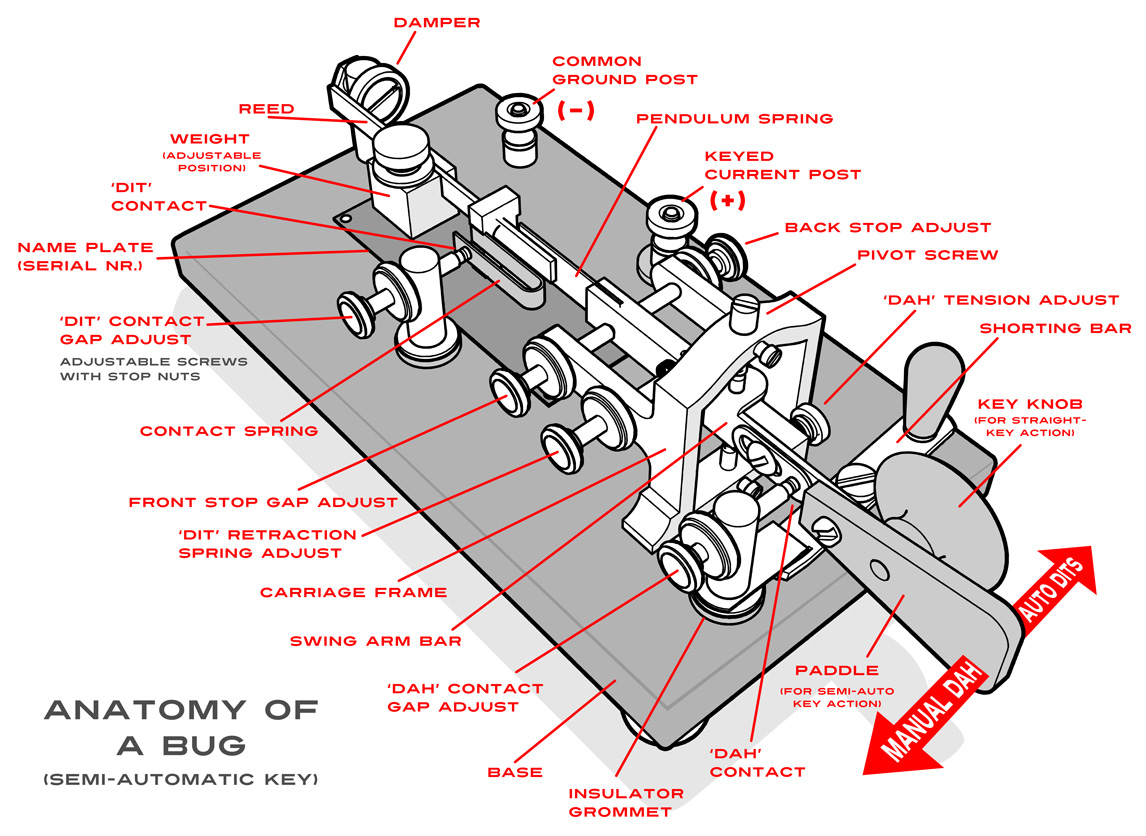

Here is a diagram with alternate names for the parts used by Vibroplex.
Vibroplex's J-36 Machine drawing:
http://www.vibroplex.com/techdocs/lightning_bug_machine_drawing.pdf
Vibroplex's J-36 Parts Lists (corresponds to the machine drawing for
names of parts)
http://www.vibroplex.com/techdocs/parts_LBUG_011814.pdf

73

DR
N1EA
