[ARC5] BC-453-E and C-570A/A Question

[zakariya.abu at yandex.com]

With the reference to my yesterday's posting, after studying more old
manuals for larger aircraft from the 1950s and 1960s, incl. the KC-97F,
I realized that there must have been a late line of the
ARC-5/SCR-274-related equipment which accommodated the Dzus fasteners.

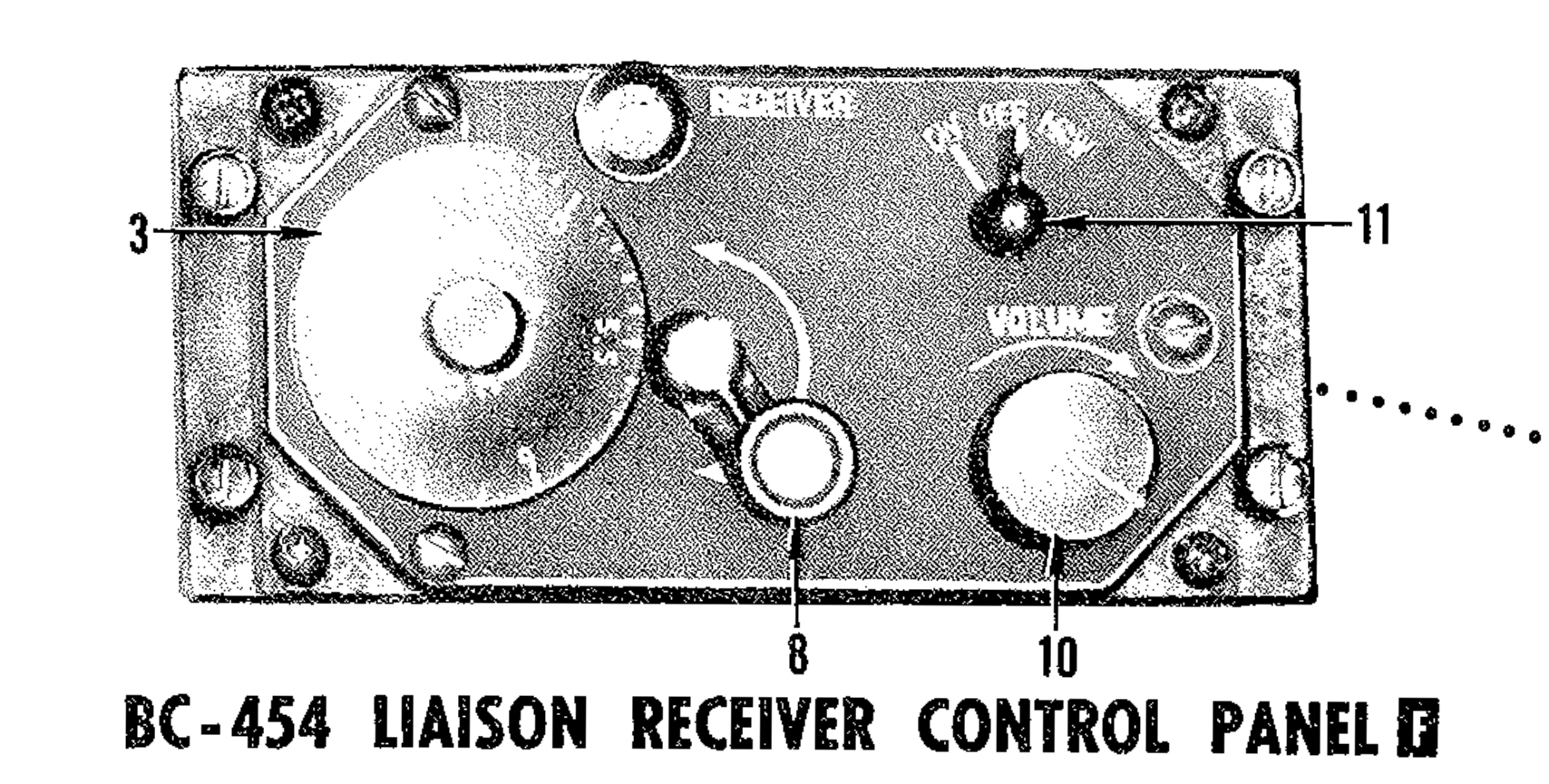

Enclosed is a copy of a page from the KC-97 flying tanker manual
depicting the BC-454 receiver's remote control (3 to 6 MHz). The set was
used on-board along with the ART-13 transmitter.

Does anyone have a manual for the ARC-5 or SCR-274, which listed the
late version control units with Dzus fasteners in the shape as from the
enclosure, and could share it?

73,

Jan SP5XZG

W dniu 01.01.2025 o 13:59, zakariya.abu at yandex.com pisze:
> Happy New Year, Colleagues!
>
> Does anyone have a manual with sketches of the peculiar setup of the
> BC-453-E with the C-570A/A control unit from the 1950s as used on the
> KB-50 flying tanker (a deep modification of the B-29 Superfortress
> bomber) and could share it?
>
> The setup employed the C-570A/A control unit as evidenced in the
> attachment (item #20). This control unit's shape resembled the early
> ARC-3 remote control with Dzus fasteners. I wonder if it still used the
> Bowden cable for tuning considering the distance from the KB-50 pilots'
> overhead radio panel to the avionics bay.
>
> 73,
>
> Jan SP5XZG
>
