[ARC5] A-61-A phantom antenna question...

[Michael Hanz]

Like most of the dummy loads in WWII, this resistive load is designed to
be relatively independent of frequency.  It is simply nichrome wire
wound on asbestos forms with a layer of mica riveted on top of the
asbestos before winding.  The A-61-A is rated at 50 watts, so that gives

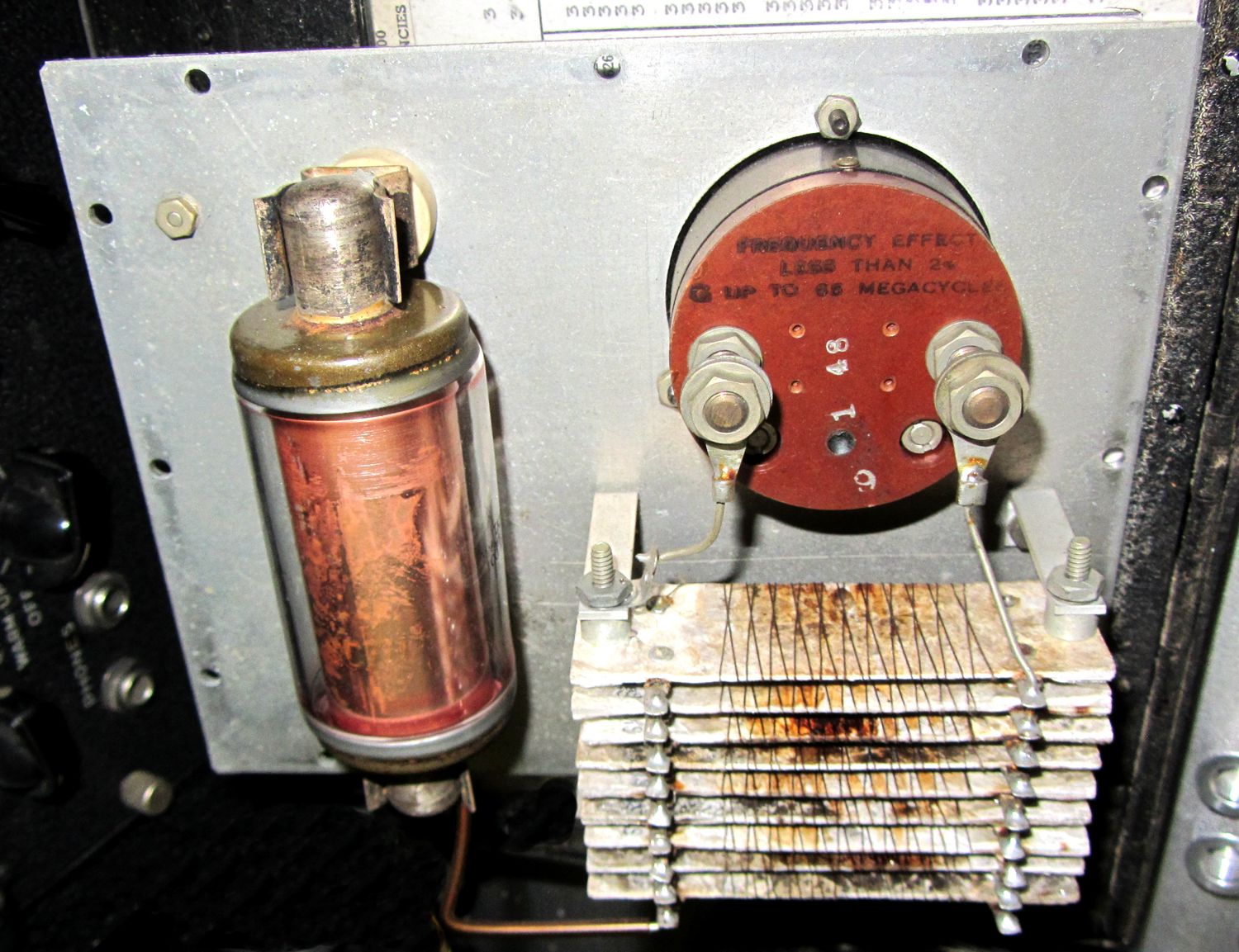

you a good target.  Photo below.

-Mike  KC4TOS



On 8/23/2023 12:10 PM, Michael Hanz wrote:
>
> Aircraft Radio Corp Part 8046 fixed vacuum capacitor
>
> Rated Capacitance 100 pF
>
> Peak Voltage 5 KV
>
> Current Amps (RMS) Maximum 5 Amps
>
>
> I'll take a look at the resistor later today.
>
>
> Mike  KC4TOS
>
>
>
> On 8/23/2023 11:45 AM, Craig Cantwell via ARC5 wrote:
>> I haven't had any luck find one of these over the couple of years
>> I've been searching. I was wondering if anyone has one in their
>> collection and if so, would you be willing to look at the internals
>> and see if you can see the ratings on the capacitor and the resistor
>> within the unit? The schematic shows it to be a 100pF cap and a 5 ohm
>> resistor, but no other rating info. I figure that a 2kV cap rating
>> and 100 watts on the resistor would be plenty, but want to be sure on
>> the cap. I hate having things go bang on the bench that are not meant
>> to do so.
