[ARC5] P-40 SCR-274-N Display

[J Mcvey]

 Yeah, he went all out on "presentation" which is great to see that kind of creativity!

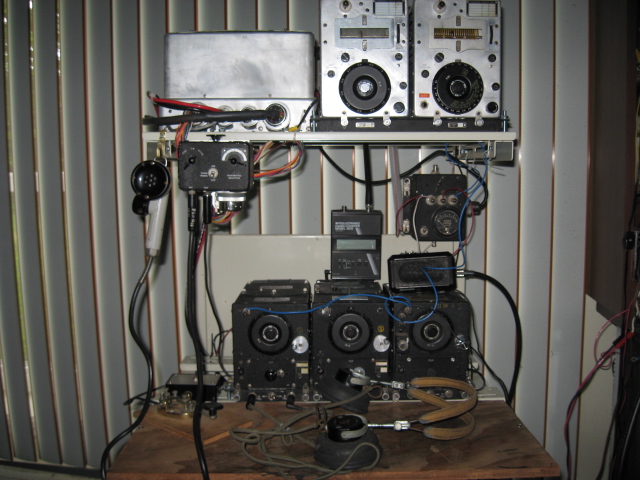

Me, not so much...Here is my original SCR-274 TX with ARC-5 RX setup. I have since swapped out the TX system for an ARC-5, once I was able to find a rack!



    On Saturday, November 6, 2021, 08:05:23 PM EDT, Mark K3MSB <mark.k3msb at gmail.com> wrote:

 That's a very nice and unique display setup he has!!

Yes, a number of us have full up and running SCR-274N systems.   You can see mine at
http://www.k3msb.com/scr274n/main.html
The only thing I would note that stands out to me is the leg mount straight key.  I doubt they were ever used, as I doubt any straight key was ever used in a "real" SCR-274N setup. The  SCR-274N system was used for short range plane to plane and plane to ground transmissions using AM.   To the best of my knowledge, SCR-274N's were not used for CW communications as we use them today.   The only operational usage for CW was when the pilot pushed the large button on the pilots control box (key down) so that a ground station could provide a bearing to the aircraft.

Thanks for sharing those images!   Very nice!

73 Mark K3MSB



On Sat, Nov 6, 2021 at 4:52 PM Adam Castellani via ARC5 <arc5 at mailman.qth.net> wrote:

Saw this posted on an FB group. Is the builder a member here?

Has anyone else built a display as extensive outside an aircraft?

https://i.imgur.com/Ew8QlyY.jpg

https://i.imgur.com/CbP0S0i.jpg
