[ARC5] Waking up Command Receivers

[Bill Cotter]

Likewise, I never restuff the cans, I find the
reward less than the effort. What I have used on
the last six ARC-5 receivers are the recap kits
from N3LLL. See attached. They are modestly
priced and make a quick and tidy job of recapping.

n3lll at kitparts.com

73 Bill N4LG



At 11:53 AM 7/5/2021, Mark K3MSB wrote:
>I never repot the caps.  I just replace them
>with individual capacitors.    Recapping the
>SCR-274N receivers is straightforward and takes
>just a few hours time (if you're slow like me.....).
>
>
>
>On Mon, Jul 5, 2021 at 11:49 AM J Mcvey
><<mailto:ac2eu at yahoo.com>ac2eu at yahoo.com> wrote:
>
>Yes the caps tend to be very leaky. The big ones
>on the power lines will go dead short all of
>sudden- even after the radio has been on a while!
>If you intend to use the radio, definitely
>consider re-potting all of the caps. The
>performance will probably improve also.
>I use a pipe cutter to make a clean cut, but a
>hack saw will work too...
>
>I've has less problems with the resistors, but
>that may depend on how the radio was stored.
>On Monday, July 5, 2021, 11:27:34 AM EDT,
><<mailto:gewhite at crosslink.net>gewhite at crosslink.net> wrote:
>
>
>I have a couple of power supplies for the
>AN/ARC-5 and SCR-274N that plug into the
>dynamotor receptacle and  are powered by 110
>volts AC. One was made by the lab at Aircraft
>Radio Corp and I made the other myself.
>Reasonably neat construction. I want $50 each
>plus postage. - Gordon Eliot White, po box 129,
>Hardyville, VA 23070 804-695-4628
>
>
>
>
>-------- Original Message --------
>Subject: Re: [ARC5] Waking up Command Receivers
>From: Mark K3MSB <<mailto:mark.k3msb at gmail.com>mark.k3msb at gmail.com>
>Date: Mon, July 05, 2021 5:48 am
>To:
>Cc: ARC-5 <<mailto:arc5 at mailman.qth.net>arc5 at mailman.qth.net>
>
>Alternatively, you could just use a 28V
>dynamotor powered off of a 24 V supply  (or
>build a 28V linear supply as I did).  28V
>Supplies are pretty cheap on Amazon (just be
>sure to bypass the output lines as these are switching supplies).
>
>In Feb 2020, using a stock BC-453B,  I logged
>68 NDBs during a weekend listening sprint with
>the receiver connected to my 160M INV-L antenna.
>
>73 Mark K3MSB
>
>
>
>On Sat, Jul 3, 2021 at 11:19 AM Al Klase
><<mailto:ark at ar88.net>ark at ar88.net> wrote:
>Gang,
>
>We all have these things languishing in our
>collections.  Here's how to use one without
>building up a complete system.
><http://www.skywaves.ar88.net/homebrew/ARC-5_PS/ARC-5_PS.html>http://www.skywaves.ar88.net/homebrew/ARC-5_PS/ARC-5_PS.html
>Let me know if you have comments or corrections.
>
>73,
>Al
>
>--
>
>Al Klase - N3FRQ
>
>Jersey City, NJ
>
><http://www.skywaves.ar88.net>http://www.skywaves.ar88.net
>______________________________________________________________
>ARC5 mailing list
>Home:
><http://mailman.qth.net/mailman/listinfo/arc5>http://mailman.qth.net/mailman/listinfo/arc5
>Help:
><http://mailman.qth.net/mmfaq.htm>http://mailman.qth.net/mmfaq.htm
>Post: mailto:ARC5 at mailman.qth.net
>
>This list hosted by: <http://www.qsl.net>http://www.qsl.net
>Please help support this email list:
><https://www.qsl.net/donate.html>https://www.qsl.net/donate.html
>
>
>----------
>______________________________________________________________
>ARC5 mailing list
>Home:
><http://mailman.qth.net/mailman/listinfo/arc5>http://mailman.qth.net/mailman/listinfo/arc5
>Help:
><http://mailman.qth.net/mmfaq.htm>http://mailman.qth.net/mmfaq.htm
>Post: <mailto:ARC5 at mailman.qth.net>mailto:ARC5 at mailman.qth.net
>
>This list hosted by: <http://www.qsl.net>http://www.qsl.net
>Please help support this email list:
><https://www.qsl.net/donate.html>https://www.qsl.net/donate.html
>
>______________________________________________________________
>ARC5 mailing list
>Home:
><http://mailman.qth.net/mailman/listinfo/arc5>http://mailman.qth.net/mailman/listinfo/arc5
>Help:
><http://mailman.qth.net/mmfaq.htm>http://mailman.qth.net/mmfaq.htm
>Post: mailto:ARC5 at mailman.qth.net
>
>This list hosted by: <http://www.qsl.net>http://www.qsl.net
>Please help support this email list:
><https://www.qsl.net/donate.html>https://www.qsl.net/donate.html
>
>______________________________________________________________
>ARC5 mailing list
>Home: http://mailman.qth.net/mailman/listinfo/arc5
>Help: http://mailman.qth.net/mmfaq.htm
>Post: mailto:ARC5 at mailman.qth.net
>
>This list hosted by: http://www.qsl.net
>Please help support this email list: https://www.qsl.net/donate.html
-------------- next part --------------
A non-text attachment was scrubbed...

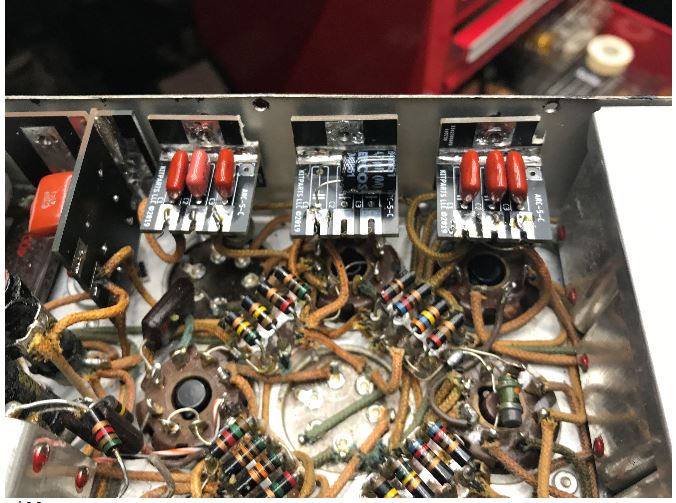

Name: N3LLL Capacitor Boards.JPG
