[ARC5] [Milsurplus] Hacked ARR-7 question

[J Mcvey]

 Wide coverage in only 6 bands. Even though there is a selectivity switch that says "sharp", it suspect it would be difficult to tune in that mode.Interesting radio, though.

    On Wednesday, September 16, 2020, 8:04:50 AM EDT, Michael Hanz <aaf-radio-1 at aafradio.org> wrote:

  On 9/16/2020 4:34 AM, arc5 at ix.netcom.com wrote:


 The ANT connector has been replaced with a pilot light.  One can only imagine what other magical "improvements" are waiting inside to delight you.

 True that.  Not to mention the fact that a pilot light is already built into the set - the one behind the frequency dial.  That warm golden light is hard to miss.

 But I have seen worse.  The set, an adaptation of the Hallicrafters SX-28 in an ARINC enclosure, is still my favorite WWII aircraft receiver, passing the BC-348 only because of its IF selectivity options.  With the isolation stage tube socket jumpered with a small capacitor, it has identical specs to the SX-28A (with the exception of the audio output power, since it was only designed to serve headphones.)

 Removing the adjustable stop limits for autosweep of a selected frequency range of interest seems to force radio buffs to do something with that bare shaft, thus the large knob.  I never understood it.  You can set the end points to the extreme, and the stops then don't function at all.  I guess it's the irresistible ham "need to fiddle" with things that already work but do no harm if not enabled.

 73,
 - Mike  KC4TOS


 ______________________________________________________________
ARC5 mailing list
Home: http://mailman.qth.net/mailman/listinfo/arc5
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:ARC5 at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: https://www.qsl.net/donate.html
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20200916/e5e28d3e/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

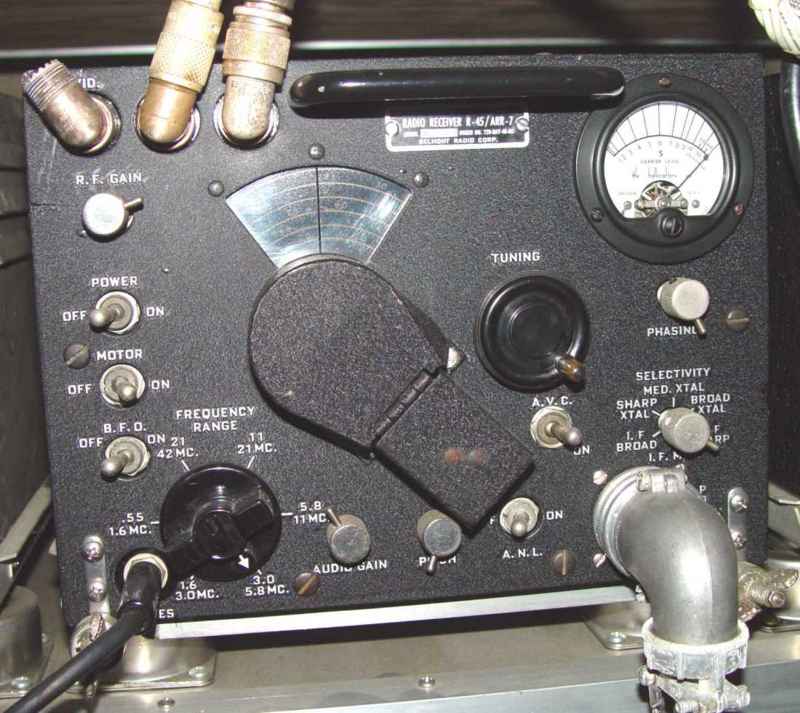

Name: ARR-7-2.jpg
