[ARC5] T23/R28 documentation

[Michael Hanz]

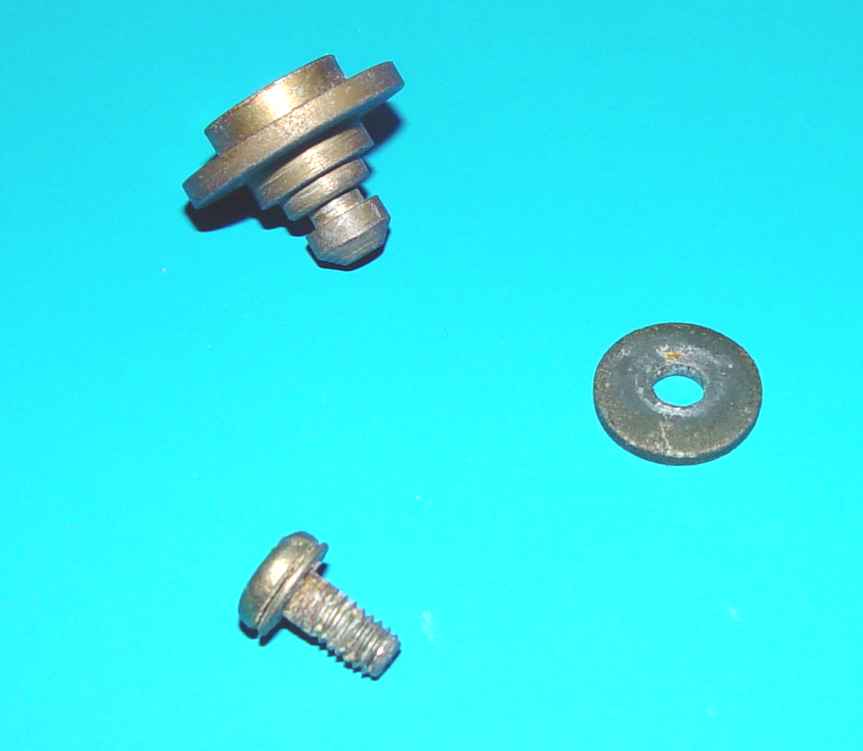

That's a pan head screw, of course.  Sorry about the conflation.  It des
sort of have a flat top, I guess.

Happy New Year,
  - Mike

On 1/1/2020 6:53 PM, Michael Hanz wrote:
> You are correct, Hans.  It's a solid piece of steel with a #8x32 flat
> head screw and washer holding it on to the chassis.
>
>
>
> I'll make a fabrication sketch of the actual part tomorrow - the
> machining is trivial on a good lathe, although there are no metric
> dimensions.  Not even any safety wire holes to drill!
>
>     73,
>  - Mike   KC4TOS
>
> On 1/1/2020 4:33 AM, Hans van der Marel wrote:
>>
>> The supports on the VHF sets are different to the HF sets.
>> What Dave shows here are for fitting on the HF sets.
>>
>> The VHF sets uses inside thread about ¼”.
>>
>> Hans PE1KWH
>>
>> PS All have a great 2020 !
>>
>> *Van:* arc5-bounces at mailman.qth.net *Namens *Dave Merrill
>> *Verzonden:* dinsdag 31 december 2019 23:08
>> *Aan:* ARC-5 <ARC5 at mailman.qth.net>
>> *Onderwerp:* Re: [ARC5] T23/R28 documentation
>>
>> On the dynamotor mounts - these are for post-WWII sets and they are
>> threaded:
>>
>> https://www.ebay.com/itm/Vintage-Shock-Absorbers-Aircraft-Radio-Corp/201505795838
>>
>> Maybe they'll work?
>>
>> Dave
>>
>> N9ZC
>>
>>
>> ______________________________________________________________
>> ARC5 mailing list
>> Home:http://mailman.qth.net/mailman/listinfo/arc5
>> Help:http://mailman.qth.net/mmfaq.htm
>> Post:mailto:ARC5 at mailman.qth.net
>>
>> This list hosted by:http://www.qsl.net
>> Please help support this email list:https://www.qsl.net/donate.html
>
> --
> Michael Hanz - KC4TOS
>
> ______________________________________________________________
> ARC5 mailing list
> Home: http://mailman.qth.net/mailman/listinfo/arc5
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:ARC5 at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: https://www.qsl.net/donate.html

--
Michael Hanz - KC4TOS
