[ARC5] T23/R28 documentation

[Michael Hanz]

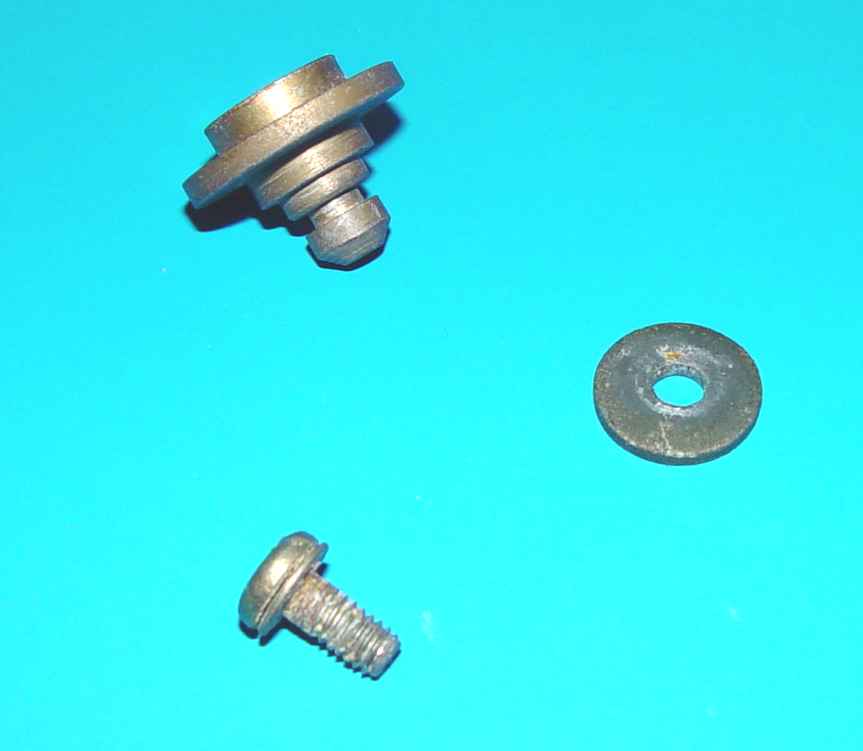

You are correct, Hans.  It's a solid piece of steel with a #8x32 flat
head screw and washer holding it on to the chassis.



I'll make a fabrication sketch of the actual part tomorrow - the
machining is trivial on a good lathe, although there are no metric
dimensions.  Not even any safety wire holes to drill!

     73,
  - Mike   KC4TOS

On 1/1/2020 4:33 AM, Hans van der Marel wrote:
>
> The supports on the VHF sets are different to the HF sets.
> What Dave shows here are for fitting on the HF sets.
>
> The VHF sets uses inside thread about ¼”.
>
> Hans PE1KWH
>
> PS All have a great 2020 !
>
> *Van:* arc5-bounces at mailman.qth.net *Namens *Dave Merrill
> *Verzonden:* dinsdag 31 december 2019 23:08
> *Aan:* ARC-5 <ARC5 at mailman.qth.net>
> *Onderwerp:* Re: [ARC5] T23/R28 documentation
>
> On the dynamotor mounts - these are for post-WWII sets and they are
> threaded:
>
> https://www.ebay.com/itm/Vintage-Shock-Absorbers-Aircraft-Radio-Corp/201505795838
>
> Maybe they'll work?
>
> Dave
>
> N9ZC
>
>
> ______________________________________________________________
> ARC5 mailing list
> Home: http://mailman.qth.net/mailman/listinfo/arc5
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:ARC5 at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: https://www.qsl.net/donate.html

--
Michael Hanz - KC4TOS
