[ARC5] FT-226A rack wiring diagram or pin outs?

[Dave Merrill]

>From the SCR-274-N Manual

Dave N9ZC

On Wed, Feb 12, 2020 at 8:04 AM Peter Bertini <radioconnection at gmail.com>
wrote:

> I've Googled, but I cannot find a wiring diagram for the FT-226A rack..
>
> Can anyone help?
>
> Also, how rare are the screen grid modulators, I haven't seen any show
> for sale on eBay?  BC-456A?
>
> Pete
> ______________________________________________________________
> ARC5 mailing list
> Home: http://mailman.qth.net/mailman/listinfo/arc5
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:ARC5 at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: https://www.qsl.net/donate.html
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20200212/ff10d01e/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

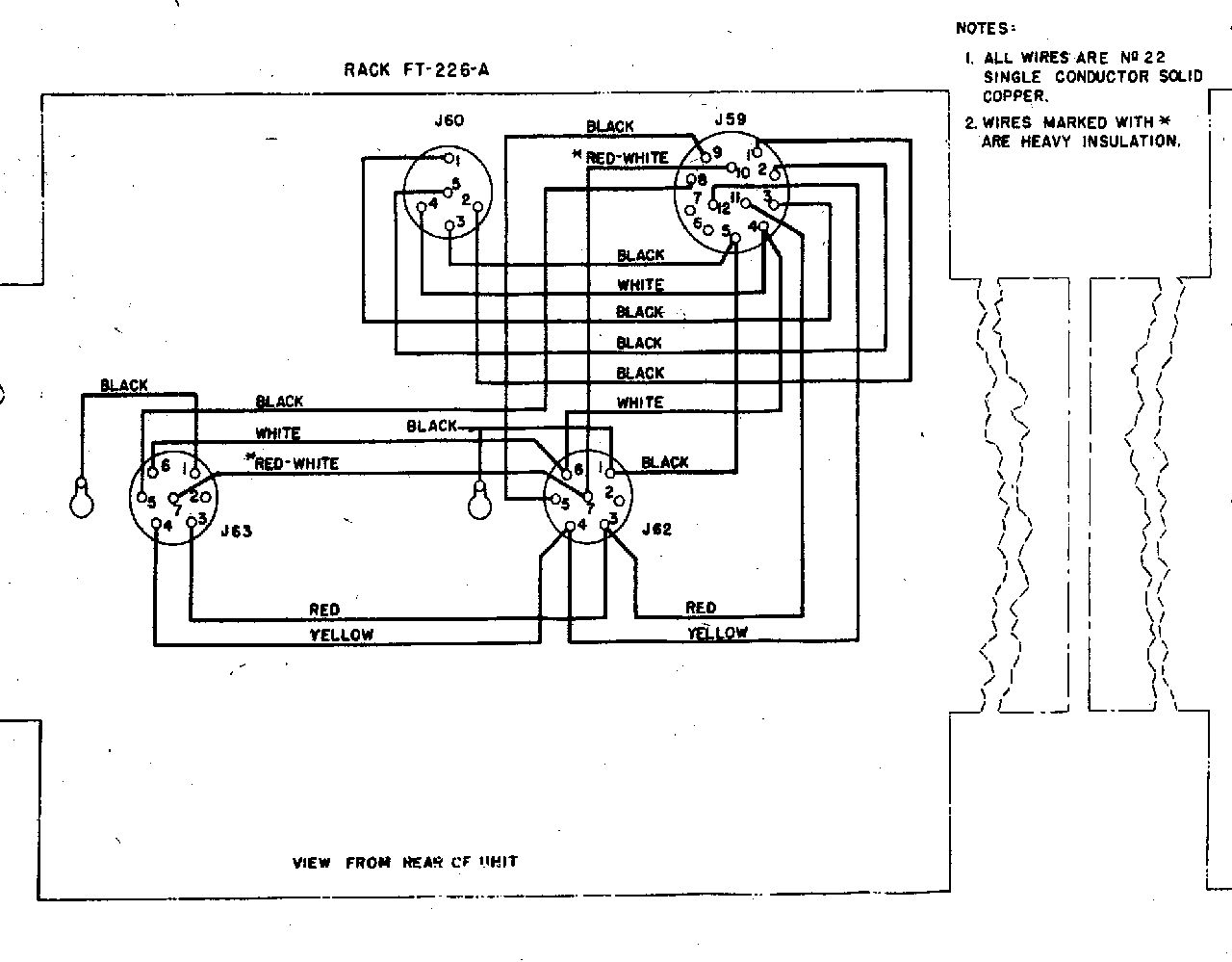

Name: FT-226-A Wiring Diagram.jpg
Type: image/jpeg
Size: 141168 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20200212/ff10d01e/attachment-0001.jpg>
