[ARC5] GRC-9 BC34 Solid State

[DaveJ]

All:

I've attached the jpeg files for the solid state replacements.  There are a
total of 16 files and I expect they will be deleted by the various spam
filters so I sent them to individuals as well. (Jay, David S, Wayne, Robert
and Dennis)

Let me know if you did or did not get them so I can follow up.

Dave, WA4OBJ
-------------- next part --------------
A non-text attachment was scrubbed...

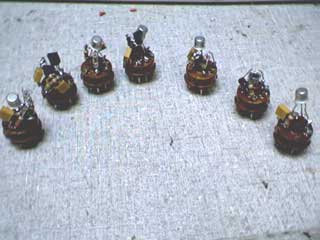

Name: RT77_Modules.jpg
Type: image/jpeg
Size: 12264 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0001.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: RT77_V1.gif
Type: image/gif
Size: 4857 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0014.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

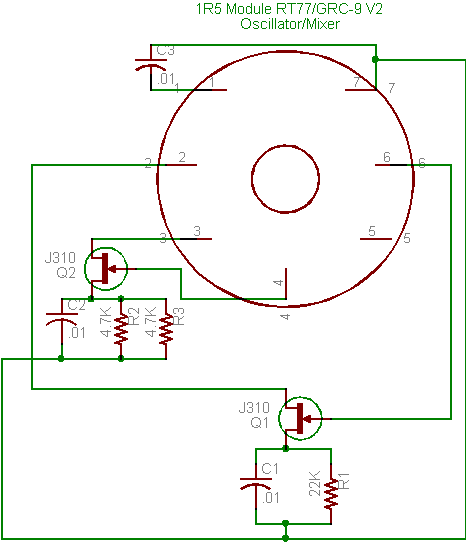

Name: RT77_V2.gif
Type: image/gif
Size: 6978 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0015.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

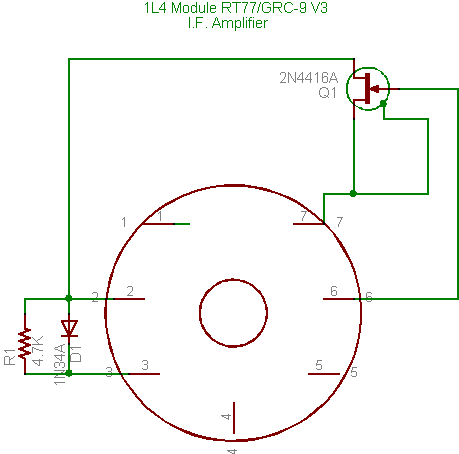

Name: RT77_V3.gif
Type: image/gif
Size: 4876 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0016.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

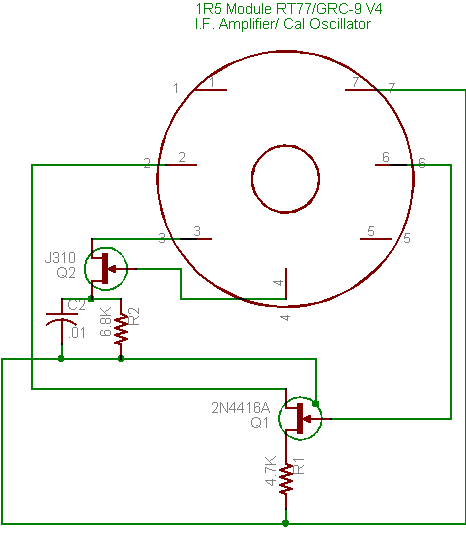

Name: RT77_V4.gif
Type: image/gif
Size: 6360 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0017.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

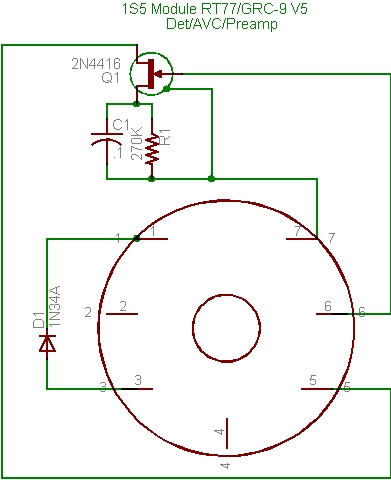

Name: RT77_V5.gif
Type: image/gif
Size: 5270 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0018.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

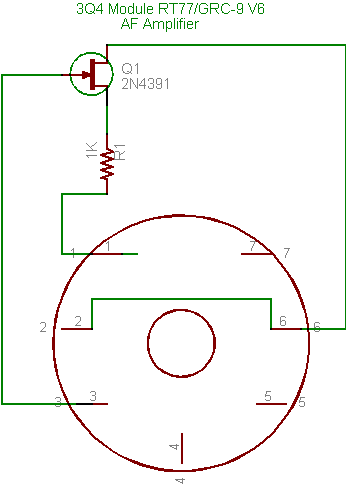

Name: RT77_V6.gif
Type: image/gif
Size: 4421 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0019.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

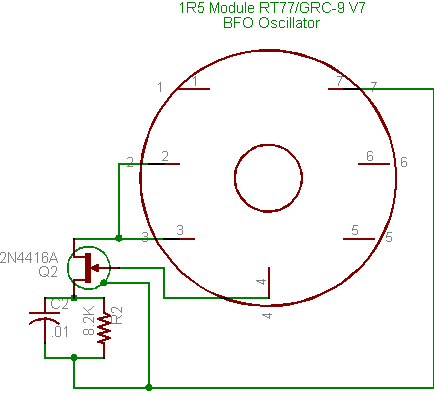

Name: RT77_V7.gif
Type: image/gif
Size: 4556 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0020.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: BC348_VT116_IF3.gif
Type: image/gif
Size: 3876 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0021.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

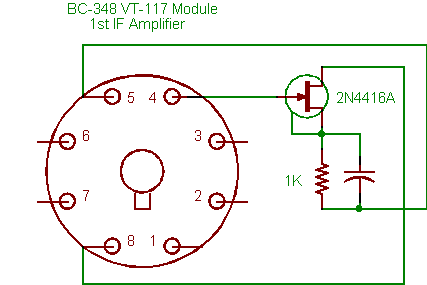

Name: BC348_VT117_IF1.gif
Type: image/gif
Size: 3978 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0022.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

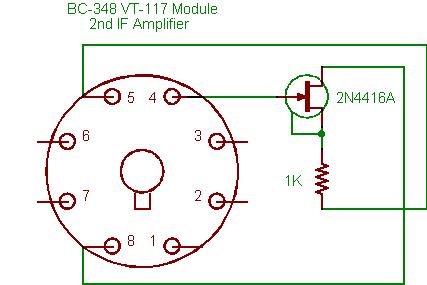

Name: BC348_VT117_IF2.gif
Type: image/gif
Size: 3873 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0023.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

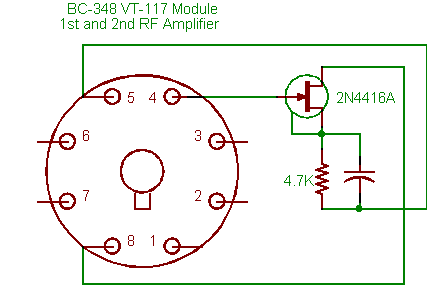

Name: BC348_VT117_RF.gif
Type: image/gif
Size: 4095 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0024.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

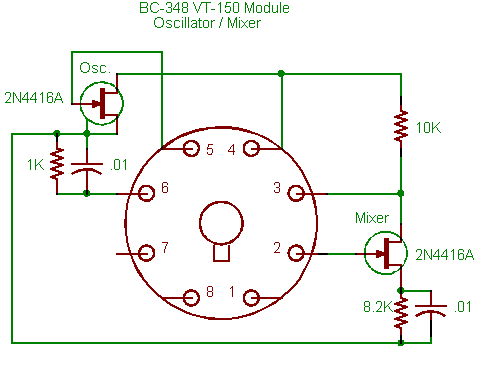

Name: BC348_VT150_OSC.gif
Type: image/gif
Size: 5291 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0025.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

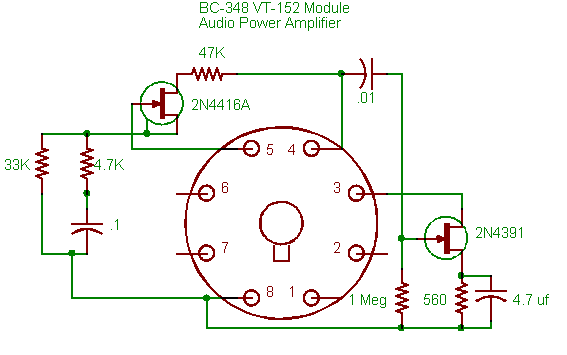

Name: BC348_VT152_AF.gif
Type: image/gif
Size: 5646 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0026.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

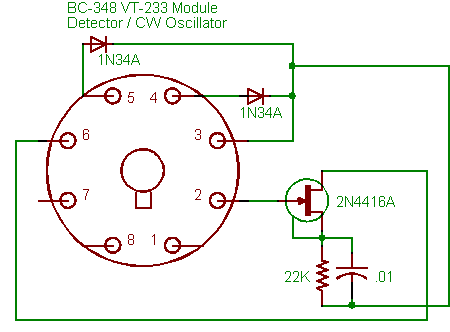

Name: BC348_VT233_DET.gif
Type: image/gif
Size: 4810 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/arc5/attachments/20181218/91f99a34/attachment-0027.gif>
