[ARC5] ARC-5 in the X-1

[Michael Hanz]

On 5/28/2016 12:12 AM, Scott Johnson wrote:
>
> I was looking at some APR-9 ELINT gear the other day, and it seems to
> look like it was built by ARC.  Anyone know if this is the case?
>

Absolutely!  They seem to have gone into the ECM business after the war

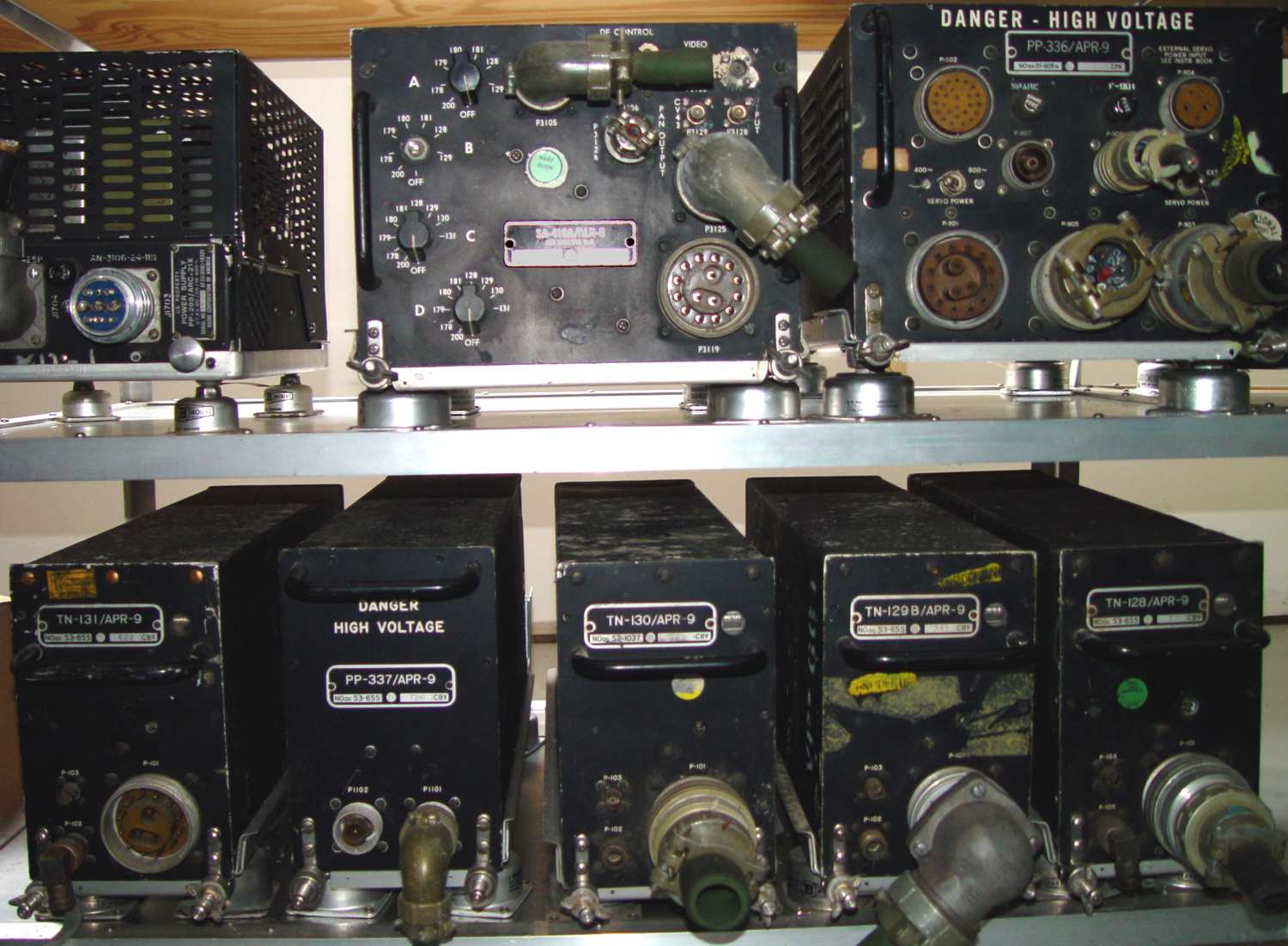

as part of a diversification strategy.  I have an ALR-8 system here, and
all the tuning units and IF amplifier are ARC-made.  Not shown in the
photo are the control head and two different CRT displays, one which is
synchronized with a rotating DF antenna to indicate direction and
strength of a received signal.

       73,
Mike  KC4TOS
