[ARC5] AC Power Supplies

[WA5CAB at cs.com]

Thanks for reminding me about the ones where the HV was taken straight off
of the AC line.  Some of the ones built for the BC-604's and BC-684's were
the same way (transformer only supplied filament power).

Robert Downs - Houston
wa5cab dot com (Web Store)
MVPA 9480

In a message dated 12/25/2016 23:32:07 PM Central Standard Time,
kb8tad at gmail.com writes:

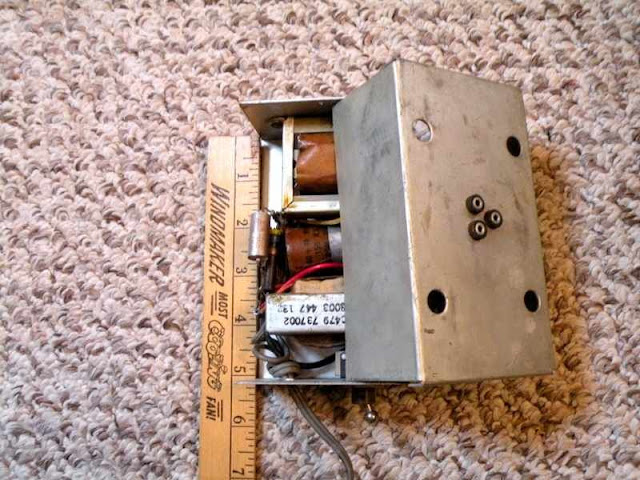

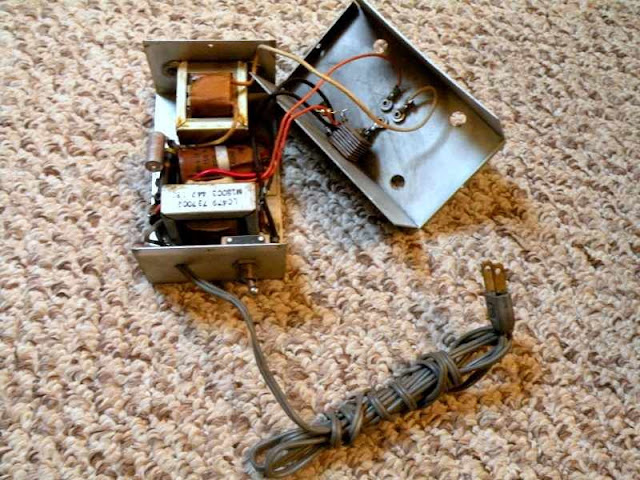

> Here are links to pics of the third part hot chassis design.  One of the
> "transformers" in there is actually a choke.
>
> <
> https://lh5.googleusercontent.com/_tArM141EDZQ/TaR7KGZQXaI/AAAAAAAAAMU/Tt_Kyo9VKy8/s640/DSCN1169-1.JPG>
>
> <
> https://lh6.googleusercontent.com/_tArM141EDZQ/TaR7PqLnCSI/AAAAAAAAAMY/alWlfeGCwRI/s640/DSCN1172-1.JPG>
>
> <
> https://lh6.googleusercontent.com/_tArM141EDZQ/TaR8lQJsmqI/AAAAAAAAAMk/jf8fm9mtyjU/s640/DSCN1170-1.JPG>
>
>
> Rich KB8TAD
>
