 Was wondering if anyone knows the spec's for the meter that goes
into the Phantom Antenna A-61-A (#7777)?

Bought it off of the bay, with the meter gone.  So I wasn't surprised.
Anyway, if you have the spec's for it, sure would appreciate you
sending the info to me.
Thanks,
-Tom  KE4RHH
>
> ----------------------------------------------------------------------
>
> Message: 1
> Date: Fri, 08 Apr 2016 16:04:56 +1000
> From: robinson at tuberadio.com
> To: ARC-5 <arc5 at mailman.qth.net>
> Subject: [ARC5] Phantom Antenna A-61-A (#7777)
> Message-ID: <eec339463fca4116dc219c533dad0675 at tuberadio.com>
> Content-Type: text/plain; charset=UTF-8; format=flowed
>
> Hi there,
>
> My A-61-A Phantom antenna has been got at.
>
> It did not seem to work correctly, so I opened it up,
> and found it had been converted to 50 ohms.
> The series resistor had been rewired for 20 ohms.
> It is just several 2 ohm resistors in series/parallel
> so it was easy  to put it back to the original 5 ohms.
>
> There are 2 clips which had a 30 ohm resistor clipped in.
> It was removed.
> What is the capacitor that goes in here?
> I assume is it a 100 pf vacumn capacitor
> similar to the 50 pf in the antenna relay.
> The 50 pf is too short (3.35 inches long).
> It seems to need a 4.5 inch long capacitor,
> of 100 pf.
>
> Is this reasoning correct?
>
> Regards
> Ray
>
>
>
> ------------------------------
>
> Message: 2
> Date: Fri, 8 Apr 2016 13:09:54 +0000 (UTC)
> From: J Mcvey <ac2eu at yahoo.com>
> To: "robinson at tuberadio.com" <robinson at tuberadio.com>, 	ARC-5
> 	<arc5 at mailman.qth.net>
> Subject: Re: [ARC5] Phantom Antenna A-61-A (#7777)
> Message-ID:
> 	<1595164465.1587523.1460120994527.JavaMail.yahoo at mail.yahoo.com>
> Content-Type: text/plain; charset="utf-8"
>
> I believe 100pf is correct.If I'm not mistaken, the ARC5 manual has a schematic of the phantom antenna if you want to be sure.
>
>
>     On Friday, April 8, 2016 2:04 AM, "robinson at tuberadio.com" <robinson at tuberadio.com> wrote:
>
>
>  Hi there,
>
> My A-61-A Phantom antenna has been got at.
>
> It did not seem to work correctly, so I opened it up,
> and found it had been converted to 50 ohms.
> The series resistor had been rewired for 20 ohms.
> It is just several 2 ohm resistors in series/parallel
> so it was easy? to put it back to the original 5 ohms.
>
> There are 2 clips which had a 30 ohm resistor clipped in.
> It was removed.
> What is the capacitor that goes in here?
> I assume is it a 100 pf vacumn capacitor
> similar to the 50 pf in the antenna relay.
> The 50 pf is too short (3.35 inches long).
> It seems to need a 4.5 inch long capacitor,
> of 100 pf.
>
> Is this reasoning correct?
>
> Regards
> Ray
>
> ______________________________________________________________
> ARC5 mailing list
> Home: http://mailman.qth.net/mailman/listinfo/arc5
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:ARC5 at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html
>
>
>
> -------------- next part --------------
> An HTML attachment was scrubbed...
> URL: <http://mailman.qth.net/pipermail/arc5/attachments/20160408/38e7e446/attachment-0001.html>
>
> ------------------------------
>
> Message: 3
> Date: Fri, 8 Apr 2016 09:56:19 -0400
> From: Michael Hanz <aaf-radio-1 at aafradio.org>
> To: ARC-5 <arc5 at mailman.qth.net>
> Subject: Re: [ARC5] Phantom Antenna A-61-A (#7777)
> Message-ID: <5707B883.5000705 at aafradio.org>
> Content-Type: text/plain; charset="windows-1252"; Format="flowed"
>

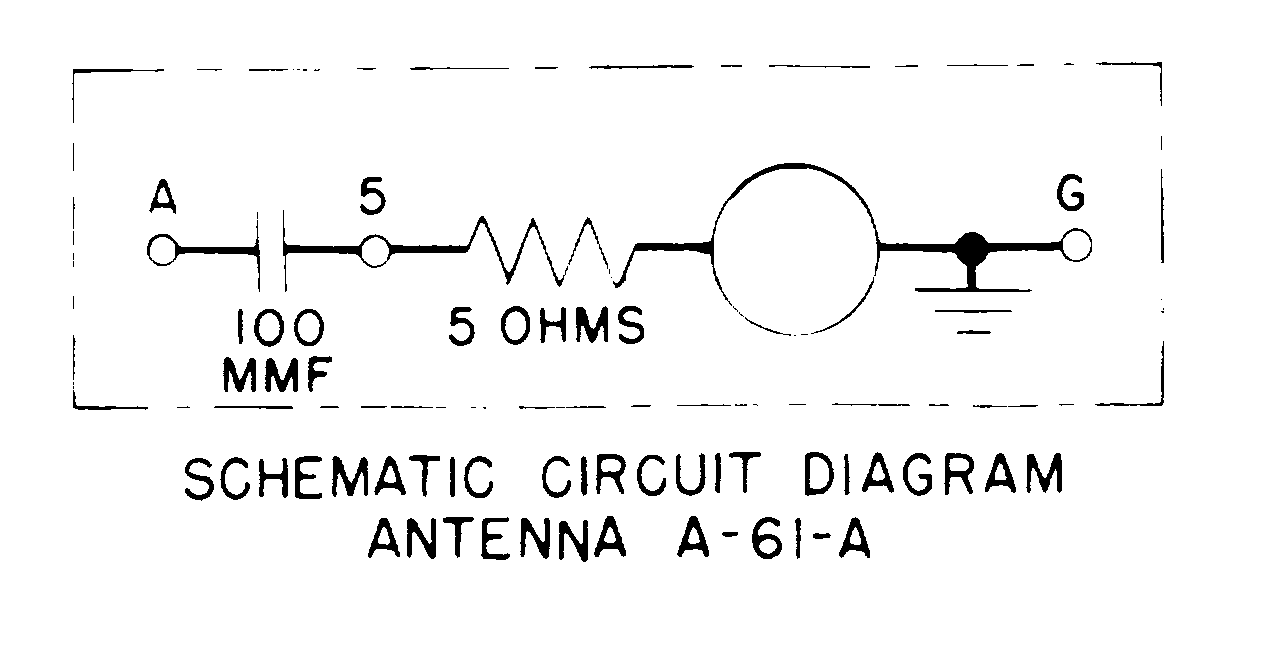

> Not in the ARC-5 manual as far as I recall, but it *is* in one of the
> SCR-274N manuals (T.O. 12R2-3SCR274-2), shown below:
>
> 73,
> Mike  KC4TOS
>
