Hi guy's

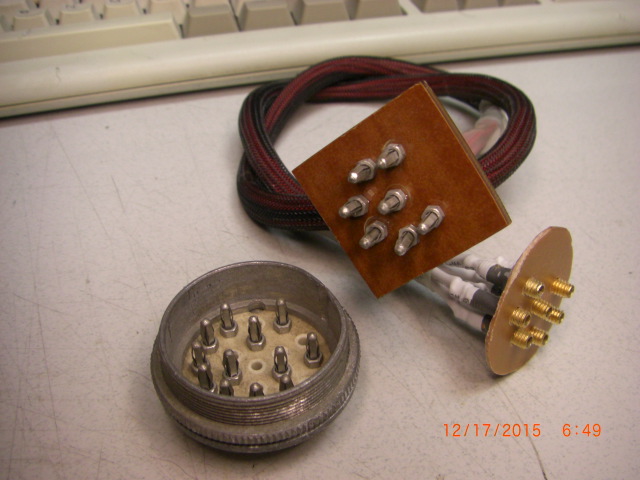

I found a way to make RX/TX connectors. The Connectors for the newer
systems are ceramic backed and the pins are inserted with screws and
nuts and can be removed easy.  By holding a piece of paper to the rear
socket of a Transmitter and pushing with a pencil into the sockets you
make a sample which can be used to drill the holes for the pins into a
piece of pertinax or similar plastic material. The sockets are miniature
banana jacks.
See the attachment.
To all a merry Christmas and a happy New Year.

Peter KC0DGM
