[ADXA] The Never Ending Battle With ^&%$*# Noise

[w5zn at w5zn.org]

Yesterday I began the process of getting my low band RX antennas all set
up for the upcoming season. It takes about 3 or 4 days to get the
current system of short vertical arrays all going. Some of them are
completely removed for the summer and hay cutting, a couple other short
vertical array elements are left out and the electronics just all packed
up.

Yesterday's work was on the HiZ-8 160 meter array. For those of you who
were here a year ago for our ADXA BBQ it is one of the arrays east of
the house along Miller Rd., centered 800 ft from the shack. This doesn't
take too long given the vertical elements are already out. Just getting
the individual signal cables from the center control unit to each of the
elements and connecting the high impedance amplifiers. The longest time
is spent running over 800 ft of signal cable (1/2") and DC voltage
wiring (3 - #12 wires) from the shack out to the control unit. I had it
working after about 4 hours, just in time to catch the football game
yesterday.

What I noticed when I fired it up last night was my noise floor was
about 10 dB higher than when I disassembled it last March and I had some
broad "goober" signal around 1827 KHz that was 20 dB above the noise
floor. Time to start searching for the source. It seems to never fail
that during the summer months something seems to increase the noise
floor.

So I started turning things off and when I turned off one of the shack
computers it went away. What I discovered as the specific source was the
USB connection at that computer from the Elecraft K3S I use on 160. This
connection is necessary for all of the communication between the radio
and computer so simply leaving it disconnected was not an option and
replacing the USB cable did not solve the problem. I'm not sure what

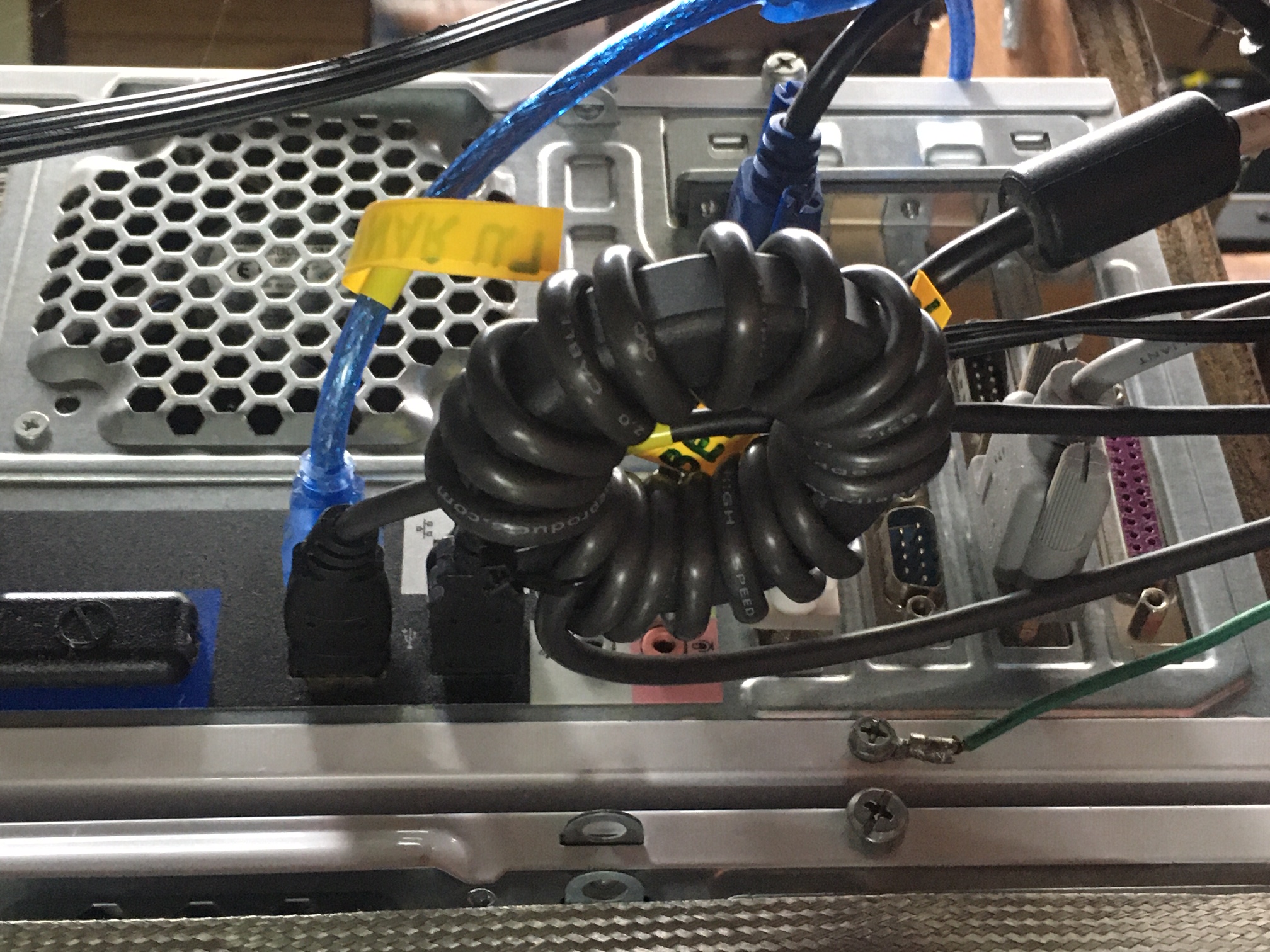

changed over the summer to create this new noise source. I grabbed a 12
ft USB cable and a couple of #31 cores (We've talked about this during
an ADXA technical presentation before) and wrapped the USB cable
completely around a core at each end of the cable (see attached photo).
Goober gone and noise floor back down to -130 dBm!!!!

Now to get the 160 BSEF and 80 meter BSEF vertical arrays put out and
connect the YCCC-9 along with a couple of Beverages.

VK sigs on 160 were decent this morning.

73 Joel W5ZN
