[600MRG] RFI Noise, Need filters.

[Bart Lee]

Two Schaffner FN 2020-3-06 line filters in series in the AC line in,
quieted the worst in-house EMI ever experienced here at K6VK. A new cable
modem totally glitched-out 630 m and everything below, and up to 160m. The
modem had turned the house wiring (and maybe the cable shield) into a big
EMI antenna, reaching the outside antennas. Series toroids did very little.
Only one filter did very little.  Two did the trick, in series, and a
grounding of the shield of the incoming cable at the modem. There are
sellers via Google, including Mouser. 73 de Bart, K6VK ##


-- --
Bart Lee, K6VK, CHRS, AWA, ARRL

Texts only to: 415 902 7168

www.bartlee.com

{Bart(dot)Lee(dot)K6VK(at)gmail(dot)com}
<http://www.lawforhams.com/>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/600mrg/attachments/20181205/a54c04b7/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...

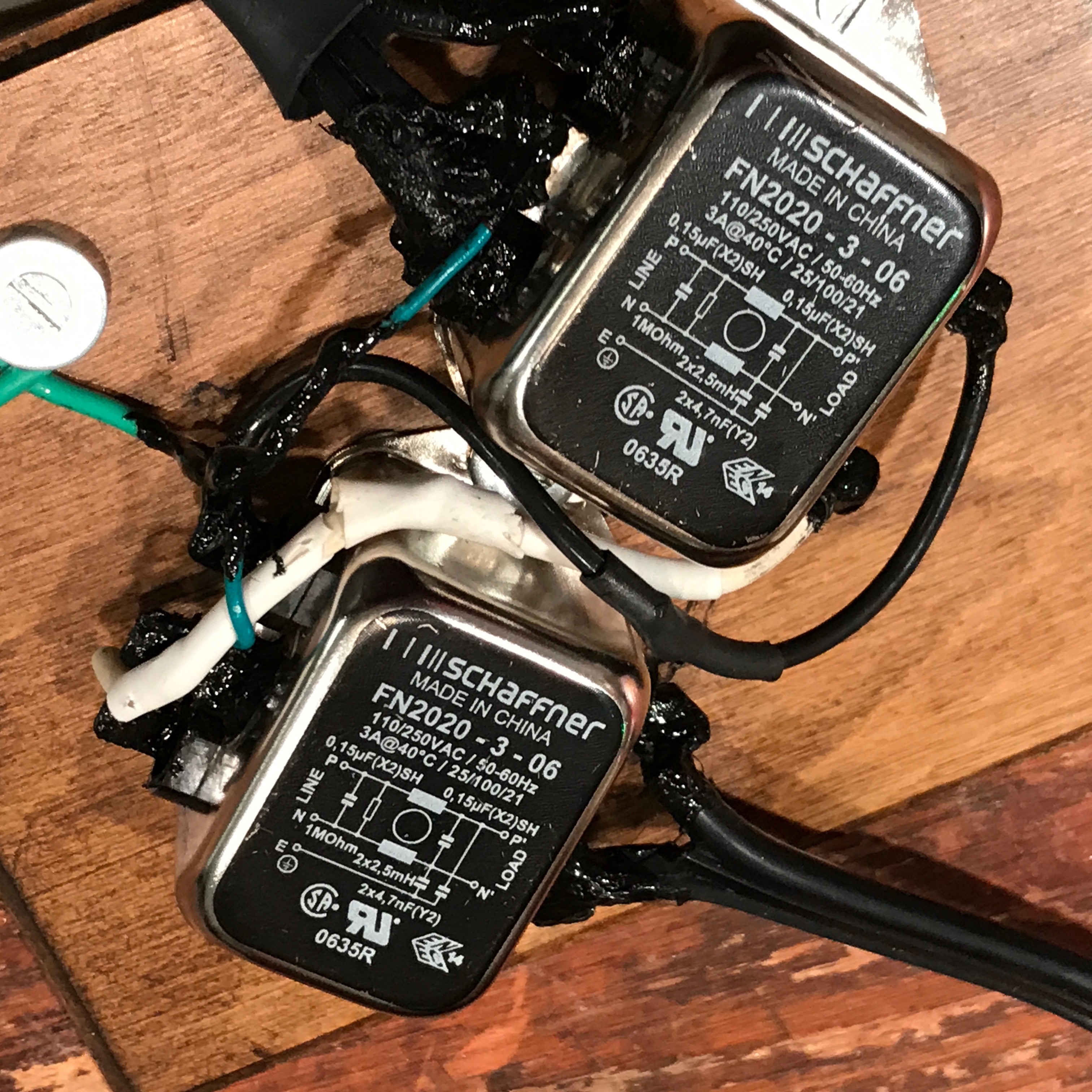

Name: Filter FN 2020-3-06 two in series IMG_7930.jpg
Type: image/jpeg
Size: 1938329 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/600mrg/attachments/20181205/a54c04b7/attachment.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

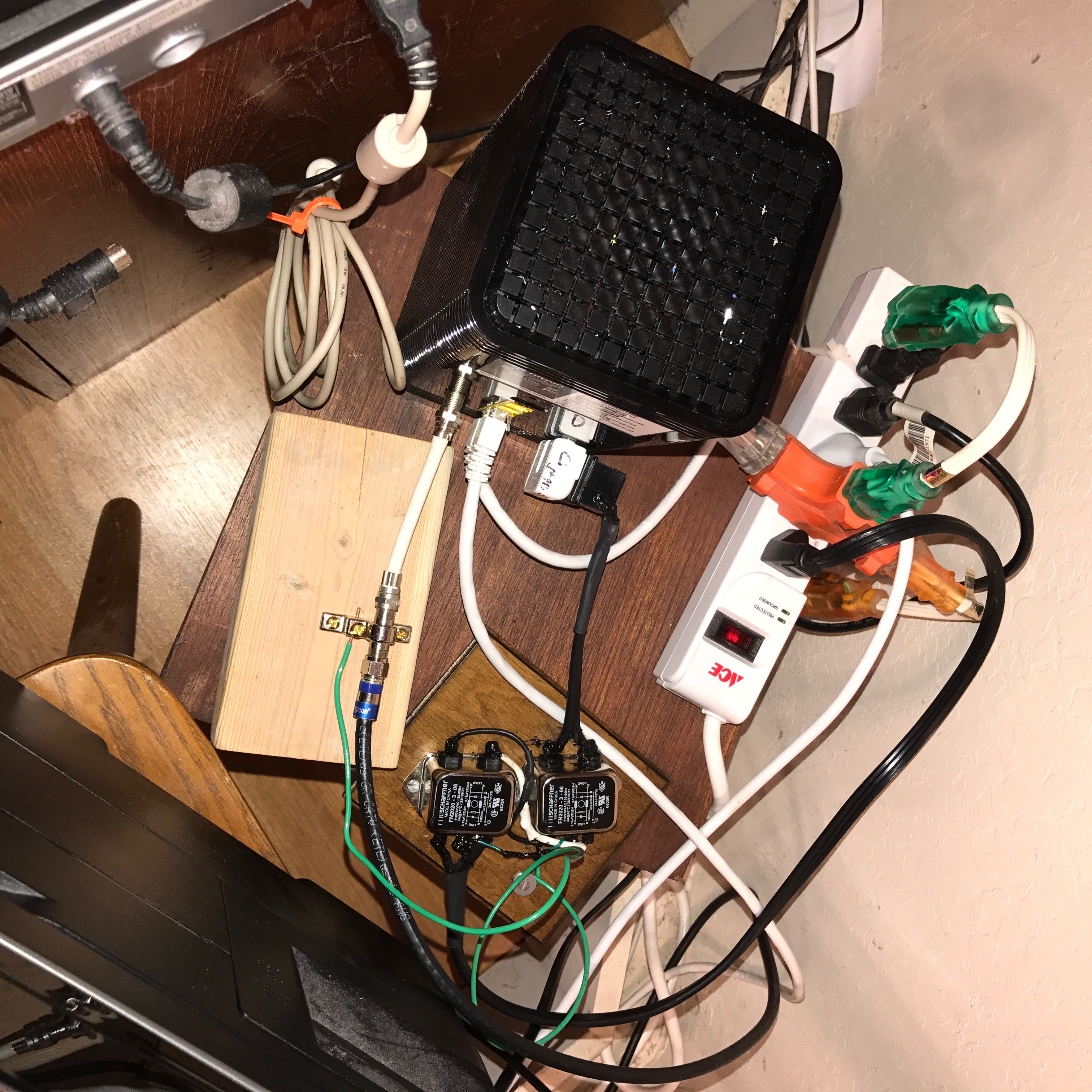

Name: Series filters & cable shield grounded IMG_7931.jpg
