[W2CRA] J Pole Antennas

[Phil Delano]

Here ya go guys...Have fun.  The Copper pipe unit works great but is a single band unit. Make sure to cap the ends so they don't fill up and burst from freezing.  The Dual band unit is also a great performer, and easy to build.There should be enough info for anyone to throw together one of these antennas.Merry ChristmasK2RRXPhil
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/w2cra/attachments/20211217/31a23d28/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: J-Pole Dimensions.jpeg
Type: image/jpeg
Size: 151831 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/w2cra/attachments/20211217/31a23d28/attachment-0001.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...

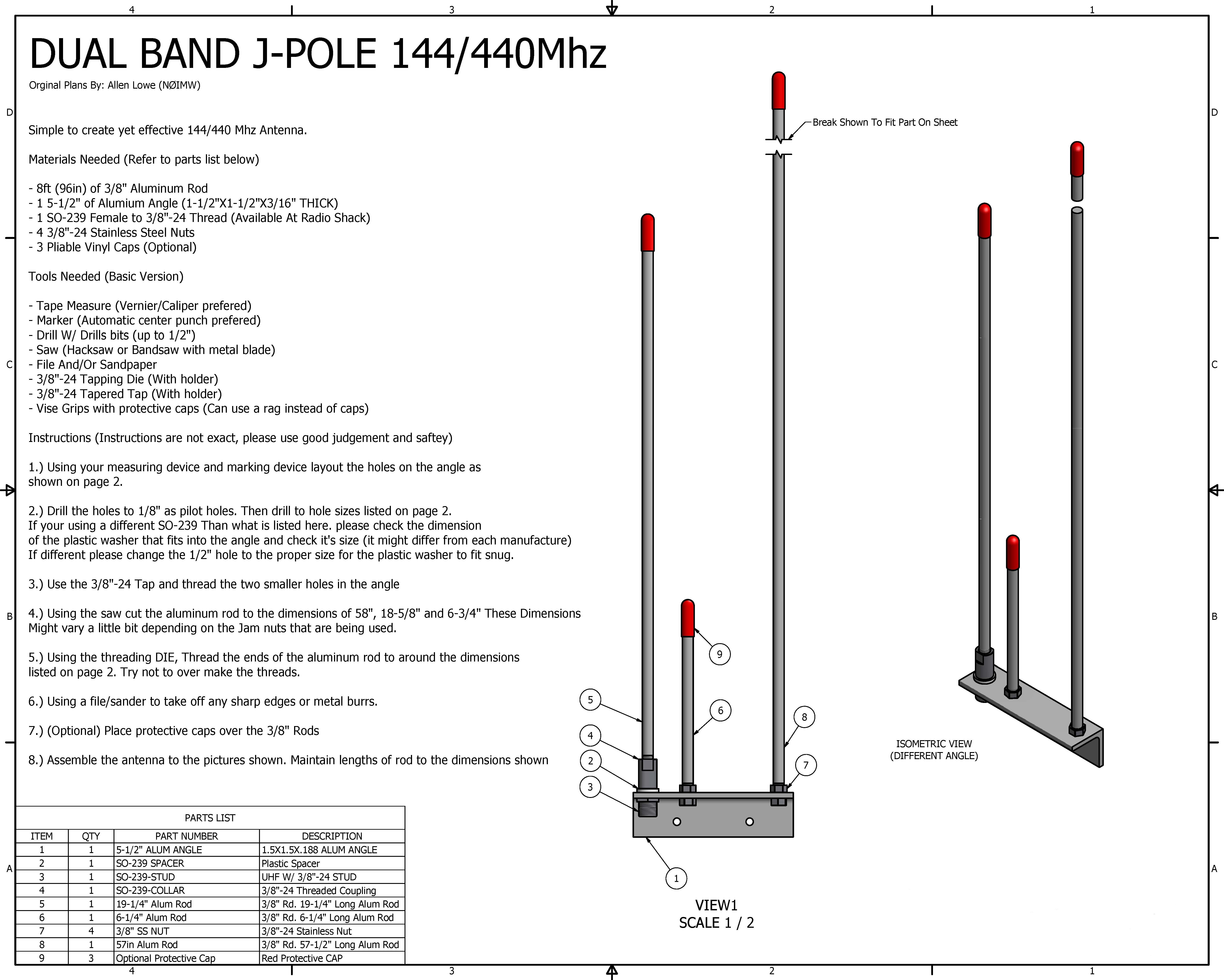

Name: Dual Band J Pole.jpg
Type: image/jpeg
Size: 2996513 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/w2cra/attachments/20211217/31a23d28/attachment-0002.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

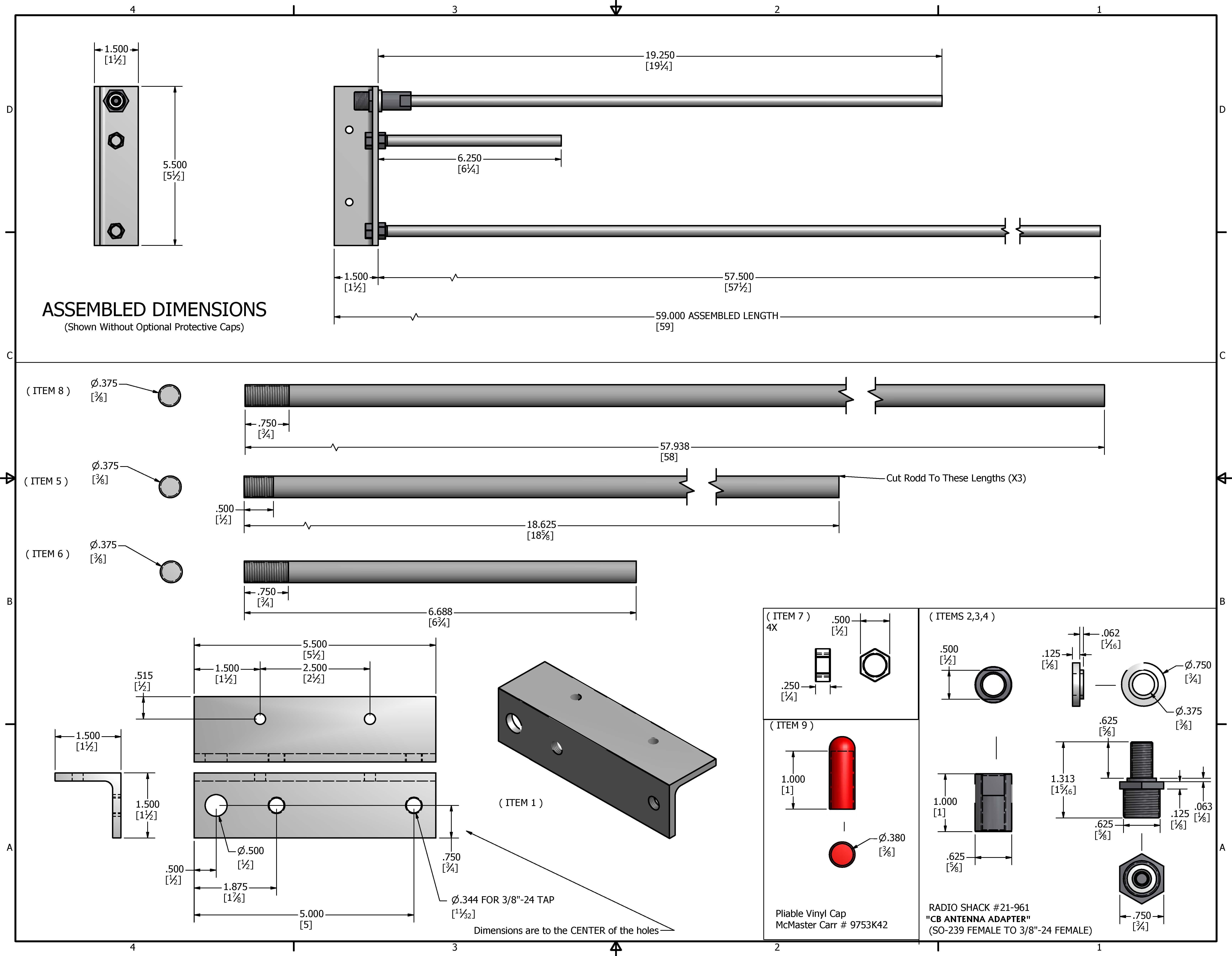

Name: Dual Band J Pole2.jpg
Type: image/jpeg
Size: 2407027 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/w2cra/attachments/20211217/31a23d28/attachment-0003.jpg>
