[W2CRA] CRA: 444.850 Coverage Map

[William Powell]

All,

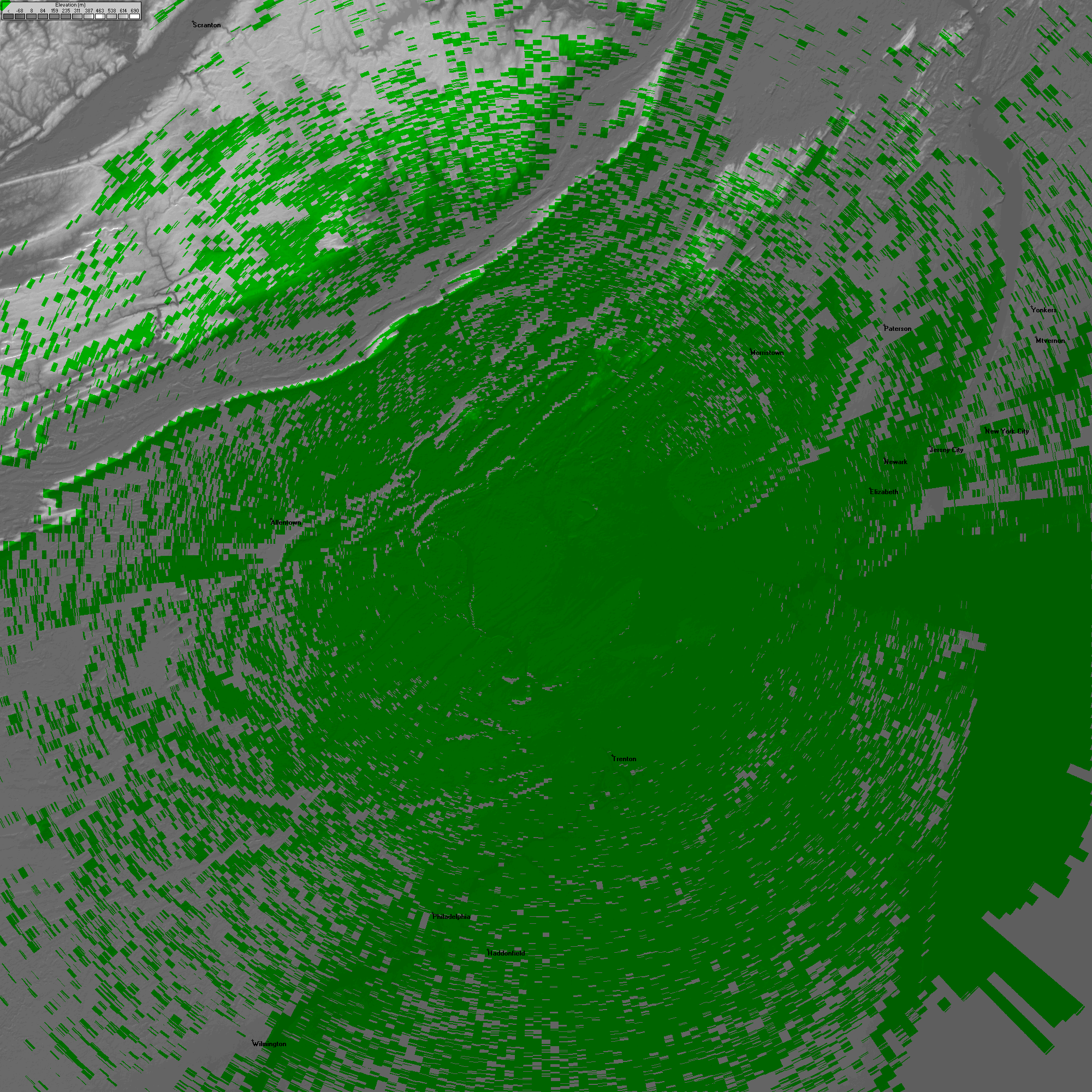

Attached is a calculated coverage for 444.850.
Save both files in a common directory,
Execute the KML file in Google Earth

Notes:
	Repeater TPO (after duplexer) 85W
	Repeater Rx sens (after duplexer) .19 uV
	Repeater Antenna center of radiation 110'
	Repeater Antenna Gain 8.6 dBd
	Repeater line loss 0.9 dB

	Mobile TPO 25W
	Mobile Rx sens 0.5 uV
	Mobile antenna center of radiation 6' (roof mounted)
	Mobile antenna gain 2.35 dBd
	Mobile line loss 0.5 dB

Bill - WB1GOT




--
