[TVARC] Repeater Update 01/09/23

[wa1utq at embarqmail.com]

Status of the repeaters in The Villages Jan.09,2023-update





443.225 Working Fine - PL 103.5hz-TSQ - K4VRC/R - Main Repeater

               Working Fine - EchoLink - K4VRC-R - Node# 848490

                                        - Motorola Repeater Back online and
Controller has been updated.

                                        - Crack Team is working put the DR-2
on 443.225 with the controller

                                        - Waiting for the parts again supply
chain delay.

443.150 Working Fine - FM:PL 103.5hz-T - K4VRC/R

                Working Fine - EchoLink - W2TR-R - Node# 67670 - Allstar -
W2TR-R - Node#435720

                                         - Old Motorola Repeater back online
and Cavity added.

145.110 Working Fine - PL 107.2hz-TSQ - K4VRC/R

                                          - Drop to low power. The Antenna
is bad. Very High SWR.

                                         - New Station master has been
cancelled by mfg. Supply Chain delays.

                                         - The Crack team is working for
another outlet.

441.875 Off the Air      - Digital: N/A. Wires: Local. FM: PL 103.5hz-TSQ

                                         - Power Amp Burnt out. Repeater
will be out for month.

                Working Fine - Wires-x Node# 58179 - W2TR/R - QTH-Marion
County.

                                         - Wires-x is available.

                Not Connect  - Crosslink to 224.740mhz. FM -  Not Link

224.740 Working Fine  - FM: PL 103.5hz-T - W2TR/R

                                          - Not link to 441.875.

146.940 Working Fine  - Digital: Open. Wires: N/A. FM: PL 91.5hz.-TSQ -
WA1UTQ/R

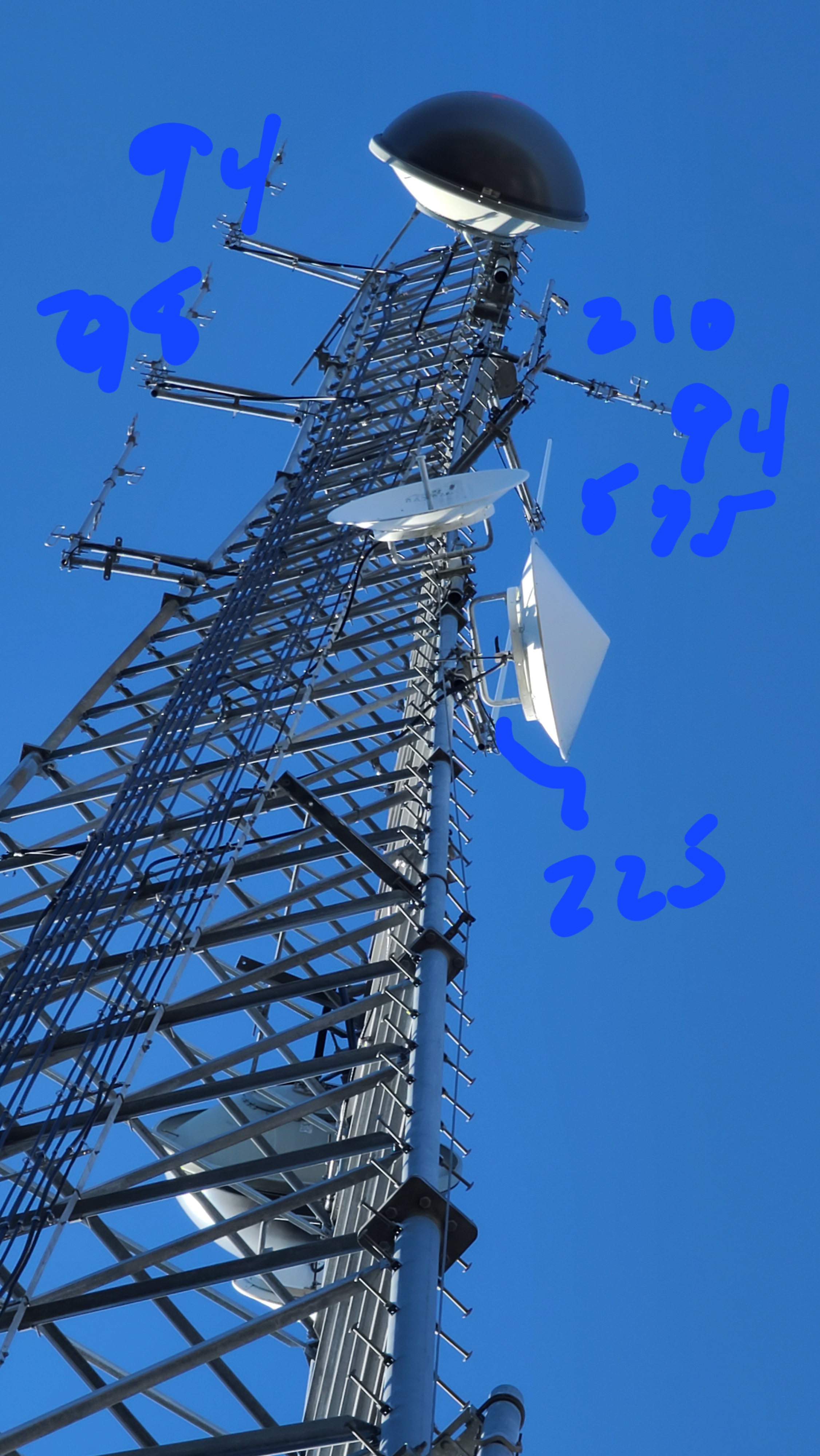

                                          - 4 Bay Antenna is on 90 degrees
angle or Horizontal.

                                          - Plans to move to another
antenna. At 300 ft. this one is bad also.
