[SkyHub] Severe Wx Network / Colo Severe Wx Room

[Gary Maier NC2WX]

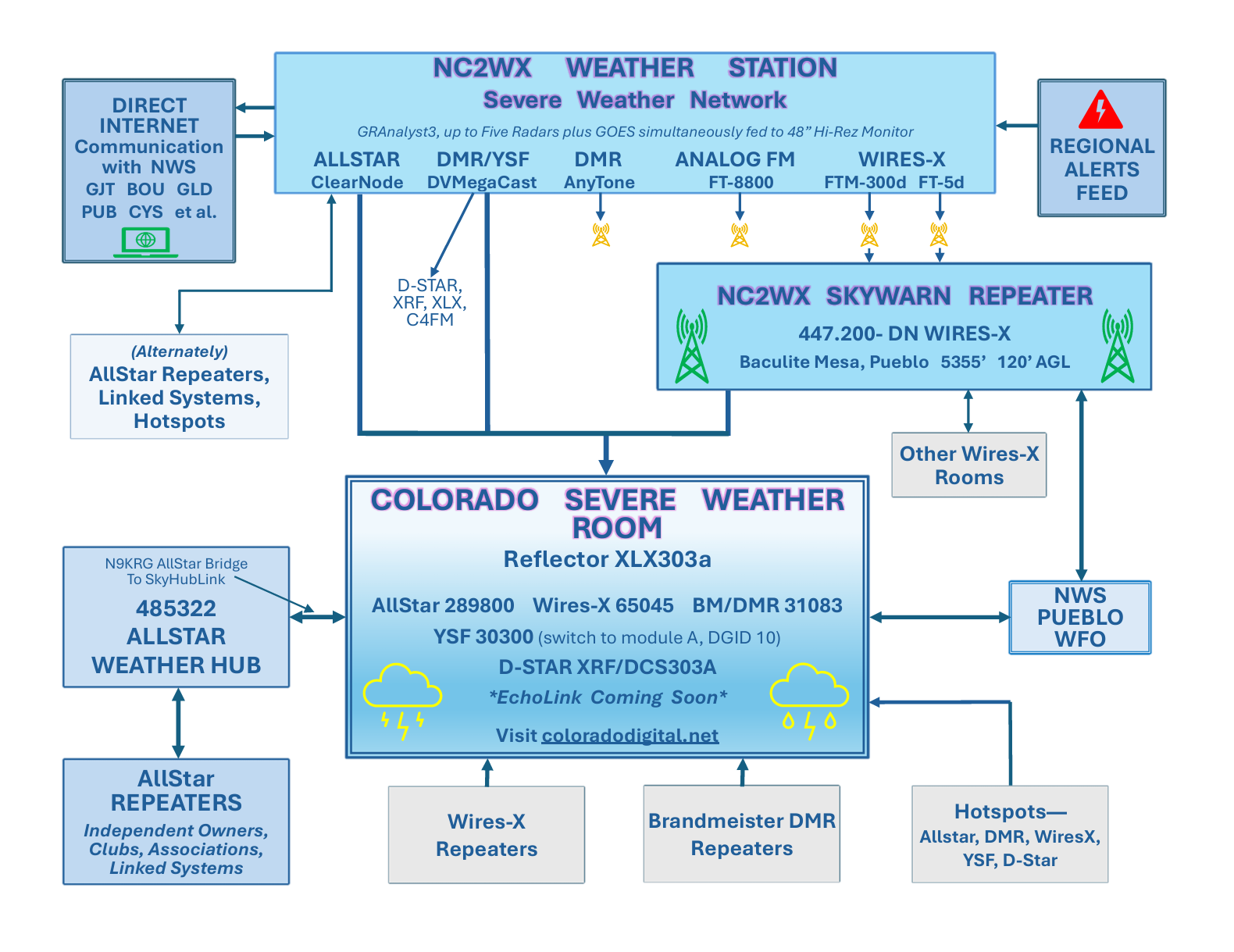

Block Diagram of the Severe Weather Network. Operations are aided by a great amount of flexibility and redundancy, not all of which is demonstrated in the diagram.

To name a few, many thanks to the Skyhublink System including Jack, Skyler, Bucky and Jeremy; the Colorado Digital Multiprotocol Group including Bucky, Jimi, Josh, Bud, Jake and many others; and to Steve KD0SBN (Wires-X Room 65045) for making all this possible! NC2WX

[cid:c879352a-7ac9-43f4-aa7a-f40467815dd0]
