[SJDXA] TXBPF etc.

[Bob Beyer]

These are the images I wanted to share on Zoom this morning.

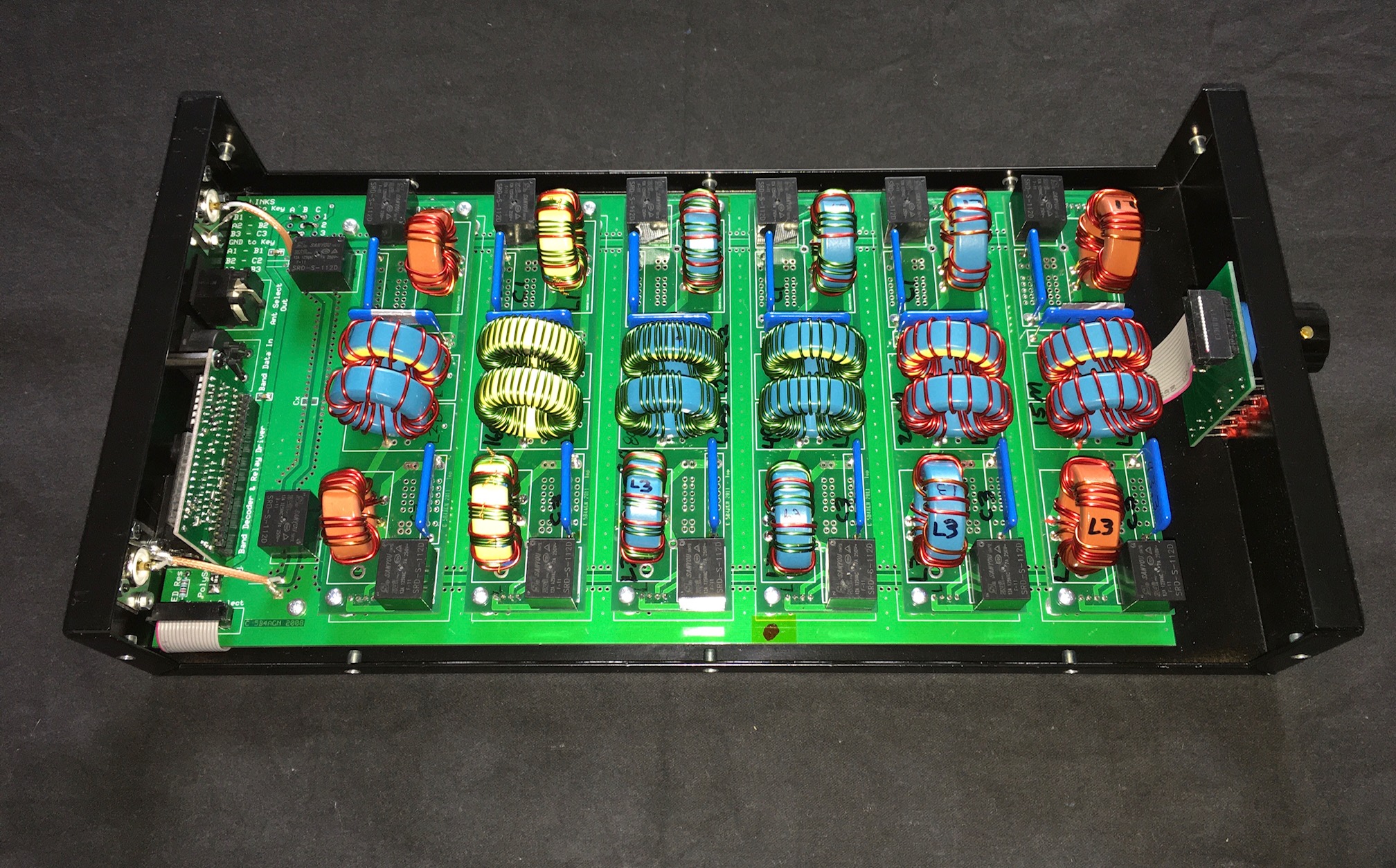

·         Completed 5B4AGN TXBPF

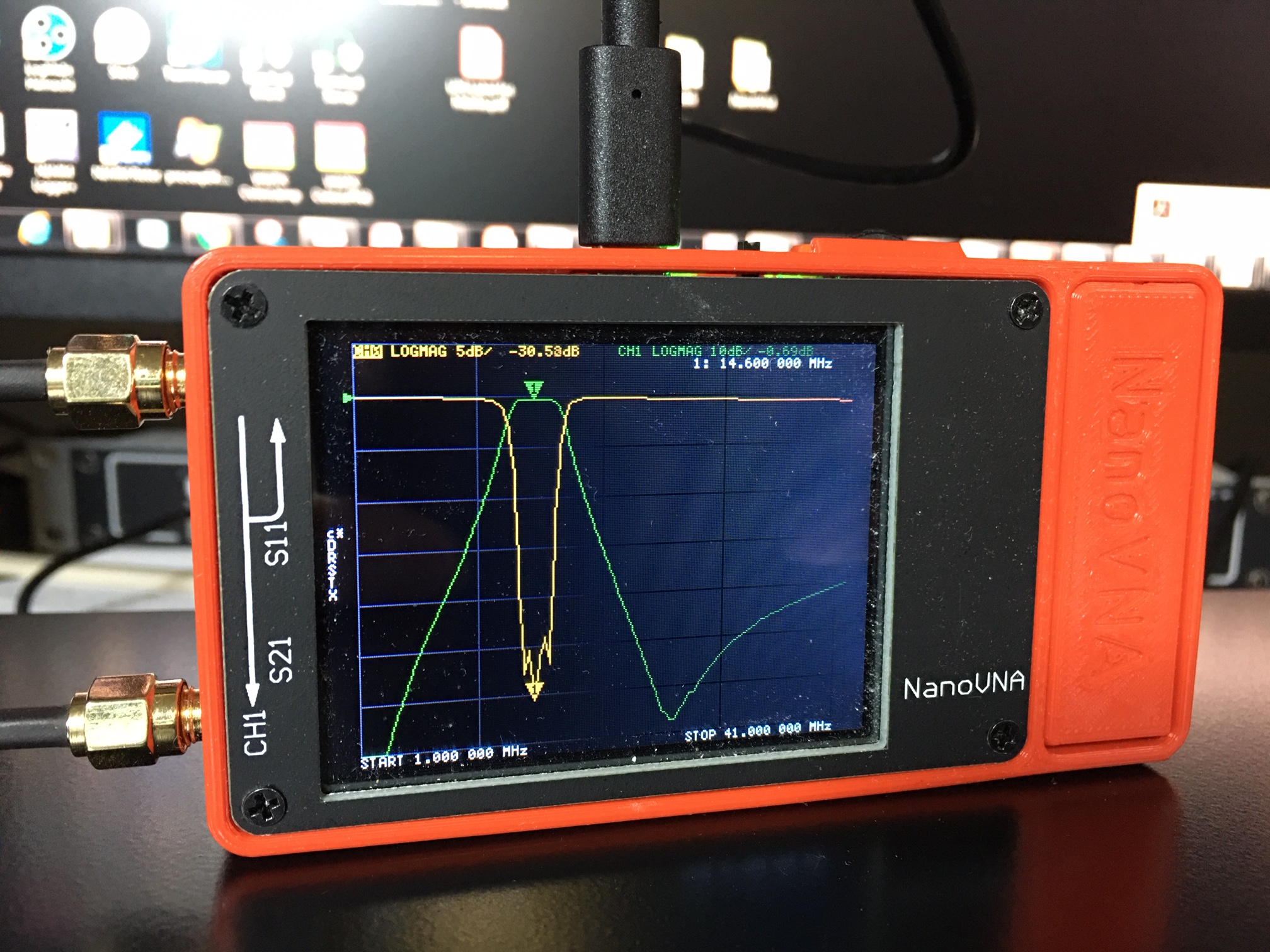

·         NanoVNA from China bought on eBay for <$50 (U.S. distributor in stock)

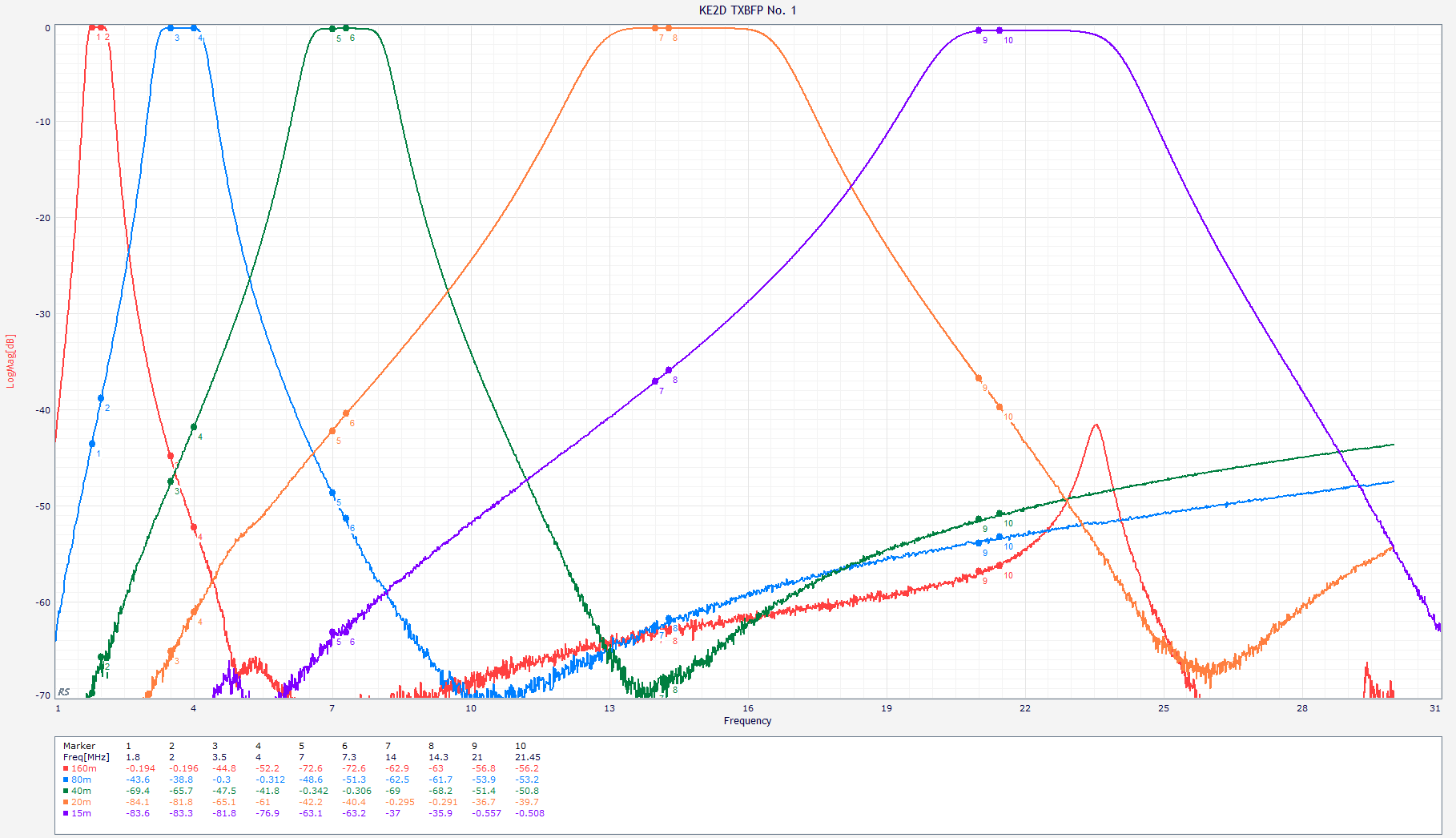

·         Plots of filter band pass (S21 insertion loss



73, Bob – KE2D
