[SJDXA] FOR SALE FT-1000

Fri Oct 20 14:39:35 EDT 2017

Listed for a local ham via the email reflectors and OBARC Newsletter. Got to
see this in action on Monday. It looks like new
.operates like NEW and no
there is no Armor-All making it look that good...it is that good. If
interested contact Michael at roadking1076 at gmail.com .

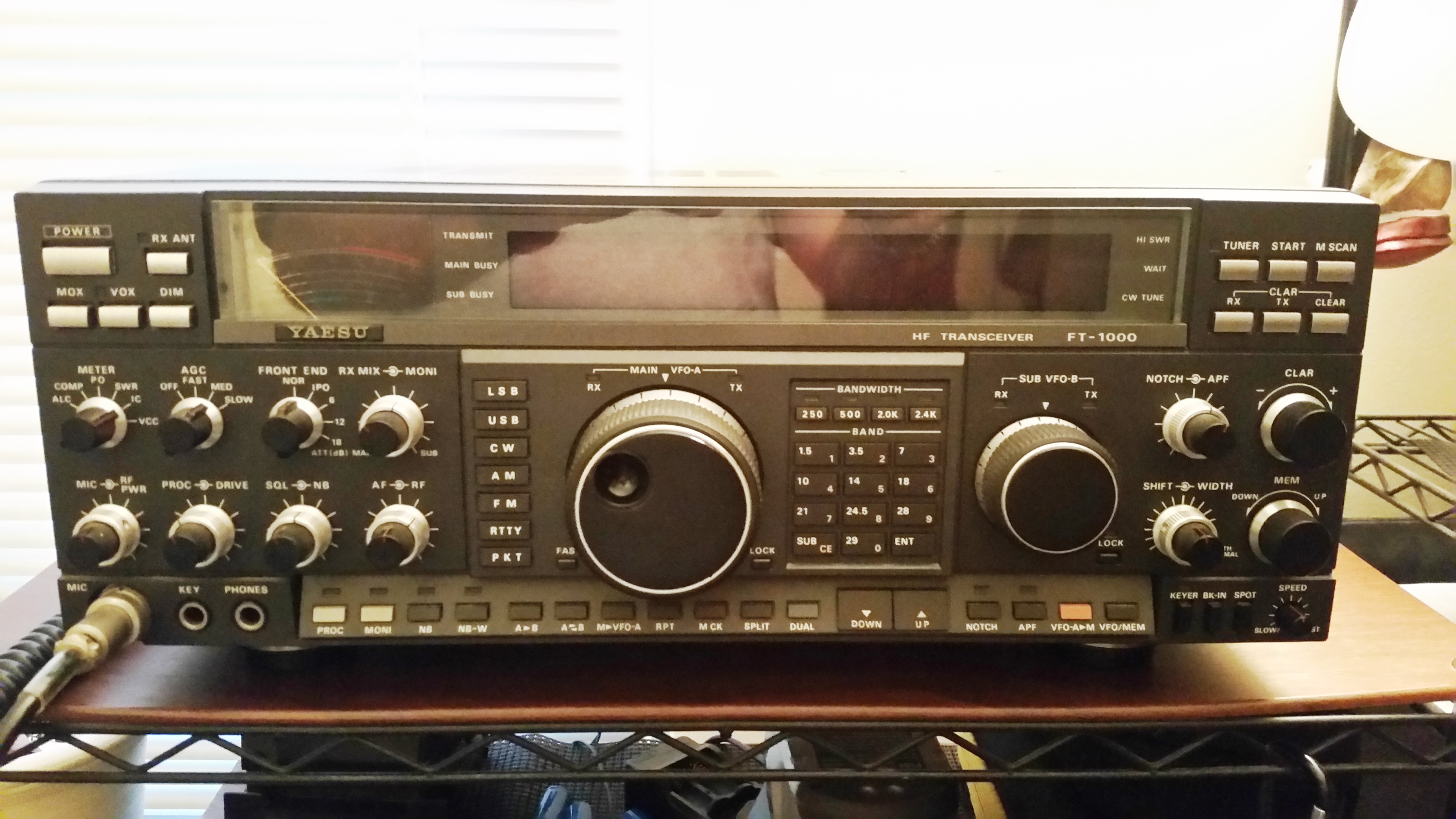

Yaesu 200w FT-1000 HF Radio $600

Features

*	Adjustable power up to 200 watts
*	Five Direct Digital Synthesizers
*	QRM Rejection Systems
*	100 Memories
*	Optimized Digital Communications Modes

*	Simultaneous Dual (Unlimited) Frequency Reception
*	Flexible Mode and IF Filter
*	Automatic Antenna Tuner with 39 memories
*	Special Features for CW Operation
*	Enhanced Integration = Simplified Control

The new Yaesu FT-1000 was designed sparing no effort or expense for optimum
performance and operability. The FT-1000 is the fruit of over 25,000
man-hours of intensive research and development by Yaesu's top design
engineers. Instead of merely offering incremental improvements on existing
designs or adding bells and whistles to an old model, the FT-1000 project
involves a wholly new approach to the application of the latest digital and
RF technologies to today's most demanding needs of the HF bands.

Extensive surface-mount component technology allowed six microprocessors and
five Direct Digital Synthesizers to be harmoniously integrated with a simple
operator interface into a highly reliable full-featured HF application. The
quad conversion (triple for FM) receiver covers 100 kHz to 30 MHz. With
MH-1C8 hand mic.

FT-1000D Specifications

GENERAL

RX Frequency Range:

100 kHz ~ 30 MHz

TX Frequency ranges:

160 ~ 10m amateur bands only

Freq. Accuracy:

<±5 ppm (except FM <±100 Hz)

Freq. Stability:

<±2 ppm (0 °C ~ 50°C) (except FM <±200 Hz)

0

<±0.5 ppm (-10°C ~ 60°C) w/TCXO-1 (FM <±150 Hz 0°C ~ 50°C)

Emission Modes:

LSB, USB (J3E), CW (A1A), FSK (J1D, J2D), AM (A3E), FM (F3E)

Basic Frequency Steps:

10 Hz for J3E, A1A and J1D

0

100 Hz for AM and FMA3E, F3E and J2D

Antenna Impedance:

16.5 to 150 Ohm, 50 Ohm nominal

0

Supply Voltage:

100, 110, 117, 200, 220 or 234 VAC, 50/60 Hz

Power Consumption (approx.):

95 VA Receive, 1050 VA for 200 watts transmit

Dimensions (WHD):

420 x 150 x 375 mm

Weight (approx.):

51 lbs. (25.5 kg.)

0

TRANSMITTER

Power Output:

adjustable up to 200 watts (50 watts AM Carrier)

Duty Cycle:

100% @ 100 watts, 50% @ 200 watts (FM & RTTY, 3-minute TX)

Modulation Types:

SSB: Balanced, Filtered Carrier

0

AM: Low level (early stage)

0

FM: Variable Reactance

0

FSK: Audio Frequency Shift Keying

Maximum FM Deviation:

±2.5 kHz

FSK Shift Frequencies:

170, 425 and 850 Hz

Packet Shift Frequencies:

200, 1000 Hz

Harmonic Radiation:

at least 50dB below peak output

SSB carrier suppression:

at least 40dB below peak output

Undesired sideband suppression:

at least 50dB below peak output

Audio response (SSB):

not more than -6dB from 400 to 2800 Hz

3rd-order IMD:

-36 dB @ 150 watts PEP, -31 dB @ 200 watts PEP, or better

Microphone Impedance:

500 to 600 Ohm

0

RECEIVER

Circuit type:

quad-conversion superheterodyne (triple conversion for FM)

Intermediate Frequencies:

73.62 and 8.215 MHz and 455 and 100 kHz

Sensitivity (For 10 dB S/N):

Frequency

100 ~ 250 kHz

250 ~ 500 kHz

0.5 ~ 1.8 MHz

1.8 ~ 30 MHz

0

Mode

SSB, CW (2.4 kHz)

1.25 uV

1 uV

2 uV

0.25 uV

AM (6 kHz)

10 uV

8 uV

16 uV

1 uV

29 MHz FM (12 dB SINAD)

-

-

-

0.5 uV

Selectivity (-6 / -60 dB):

Button

Modes

Min -6dB BW

Max -60 dB BW

2.4 kHz

all except FM

2.2 kHz

3.8 kHz

2.0 kHz

all exc. AM, FM

1.8 kHz

3.6 kHz

500 Hz

CW, RTTY, Packet

500 Hz

1.2 kHz

250 Hz

CW, RTTY

240 Hz

700 Hz

-

AM (Wide)

6 kHz

14 kHz

Sensitivity (For 10 dB S/N):

Frequency

100 ~ 250 kHz

250 ~ 500 kHz

0.5 ~ 1.8 MHz

1.8 ~ 30 MHz

0

Mode

SSB, CW (2.4 kHz)

1.25 uV

1 uV

2 uV

0.25 uV

AM (6 kHz)

10 uV

8 uV

16 uV

1 uV

29 MHz FM (12 dB SINAD)

-

-

-

0.5 uV

Dynamic Range:

108 dB (@ 50 kHz, 500 Hz BW, RF amp off)

Squelch sensitivity:

1.8 ~ 30 MHz: (CW, SSB, AM): <2.0uV

0

28 ~ 30 MHz: (FM):

<0.32uV

IF rejection (1.8 ~ 30 MHz):

80 dB or better (Main RX)

Image rejection: (1.8 ~ 30 MHz):

80 dB or better (Main)

IF shift range:

±1.12 kHz

Max audio output:

2W into 4 Ohms with < 10% THD

Audio output impedance:

4 to 8 Ohm

0

Specifications subject to change, in the interest of technical improvement,
without notice or obligation.

Steve Molo (KI4KWR)

South Jersey DX Assoc. / Old Barney ARC

       <http://WWW.SJDXA.ORG> WWW.SJDXA.ORG
<http://WWW.OBARC.ORG> WWW.OBARC.ORG

Phone: (609) 489-1878 (C)

Amateur Radio E-mail:  <mailto:KI4KWR at gmail.com> KI4KWR at gmail.com

APRS: KI4KWR (Home - Up 24/7)

EchoLink : KI4KWR (Node 255434 Up 24/7)
