[R-390] Removing Megacycle Change shaft

[rochep at comcast.net]

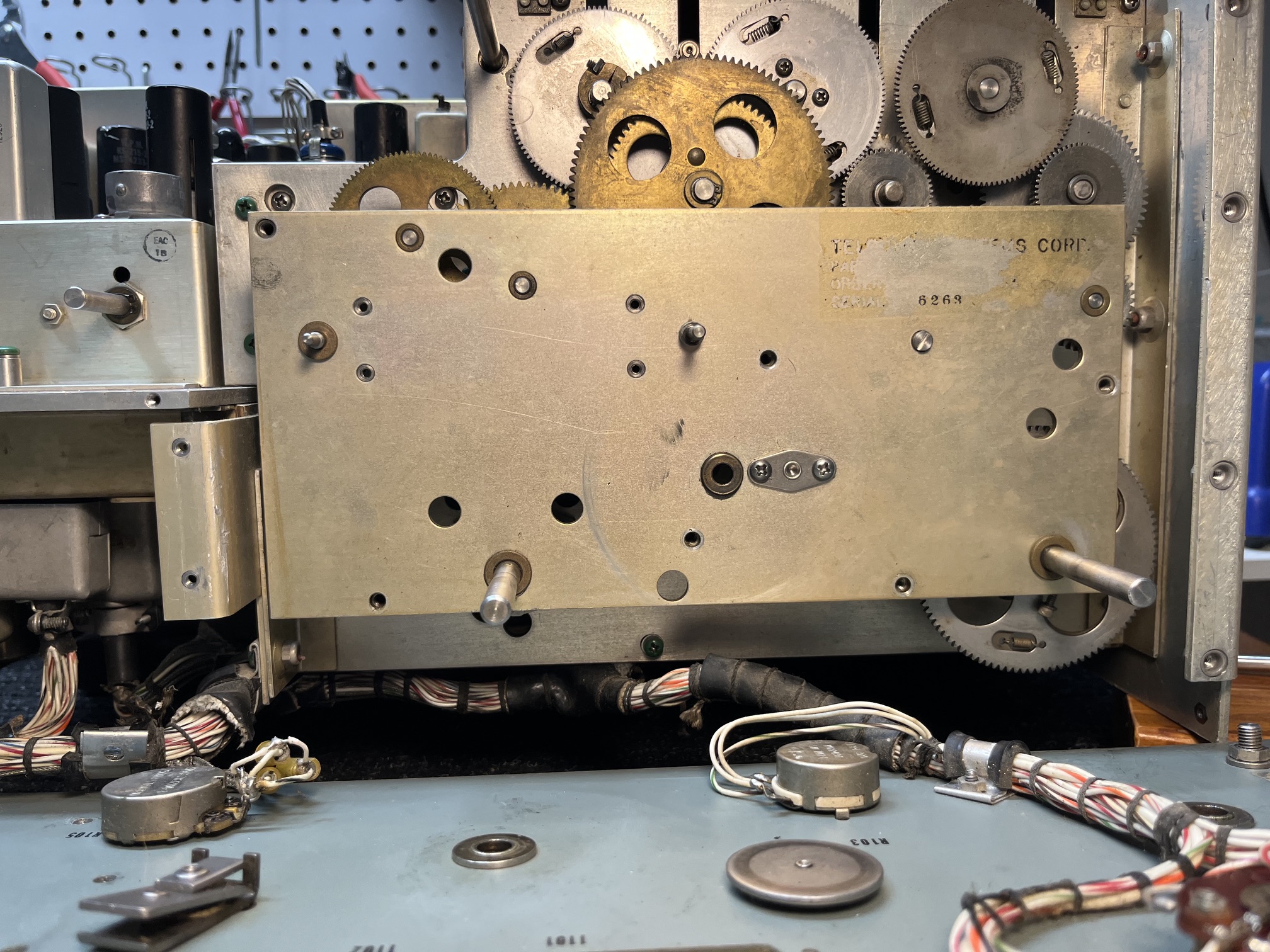

I have read it over and over. Here is where I am in removing the panel. In Chapter 10 Step 15 is where I WANT to be. Step 16 shows how everything looks before I remove the panel. In STEP17 there is a screw just under the Teledyne nameplate; it is not there in Step 16. Must this screw be removed before I can pull out the front panel?

From: r-390-bounces at mailman.qth.net <r-390-bounces at mailman.qth.net> on behalf of Jacques Fortin via R-390 <r-390 at mailman.qth.net>
Date: Wednesday, June 17, 2026 at 8:17 AM
To: Paul Roche via R-390 <r-390 at mailman.qth.net>
Cc: R390A <r-390 at mailman.qth.net>
Subject: Re: [R-390] Removing Megacycle Change shaft

Chapter 10 again: Read everything to the end !
Jack14 iPhone 16e

Le 16 juin 2026 à 23:09, Paul Roche via R-390 <r-390 at mailman.qth.net> a écrit :


<image0.jpeg>
<image1.jpeg>

Sent from my iPhone
I dont know if you can get see this. Now what? I see how to remove the KHZ gear but not sure about the clutch disk and the “gear” above it.

Paul
> On Jun 16, 2026, at 10:09 PM, Jacques Fortin via R-390 <r-390 at mailman.qth.net> wrote:
>
> Here is the needed clamp.
>
> 73, Jacques, VE2JFE in Montreal
>
> Hello Nick,
> Good try, but the hole on this one is too big (0.435) the one to be replaced
> measures 13/32" (0.406).
