[R-390] Removing Megacycle Change shaft

[Paul Roche]

A non-text attachment was scrubbed...
Name: image0.jpeg
Type: image/jpeg
Size: 674032 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20260616/c2954e6e/attachment-0002.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image1.jpeg
Type: image/jpeg
Size: 999865 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20260616/c2954e6e/attachment-0003.jpeg>
-------------- next part --------------

Sent from my iPhone

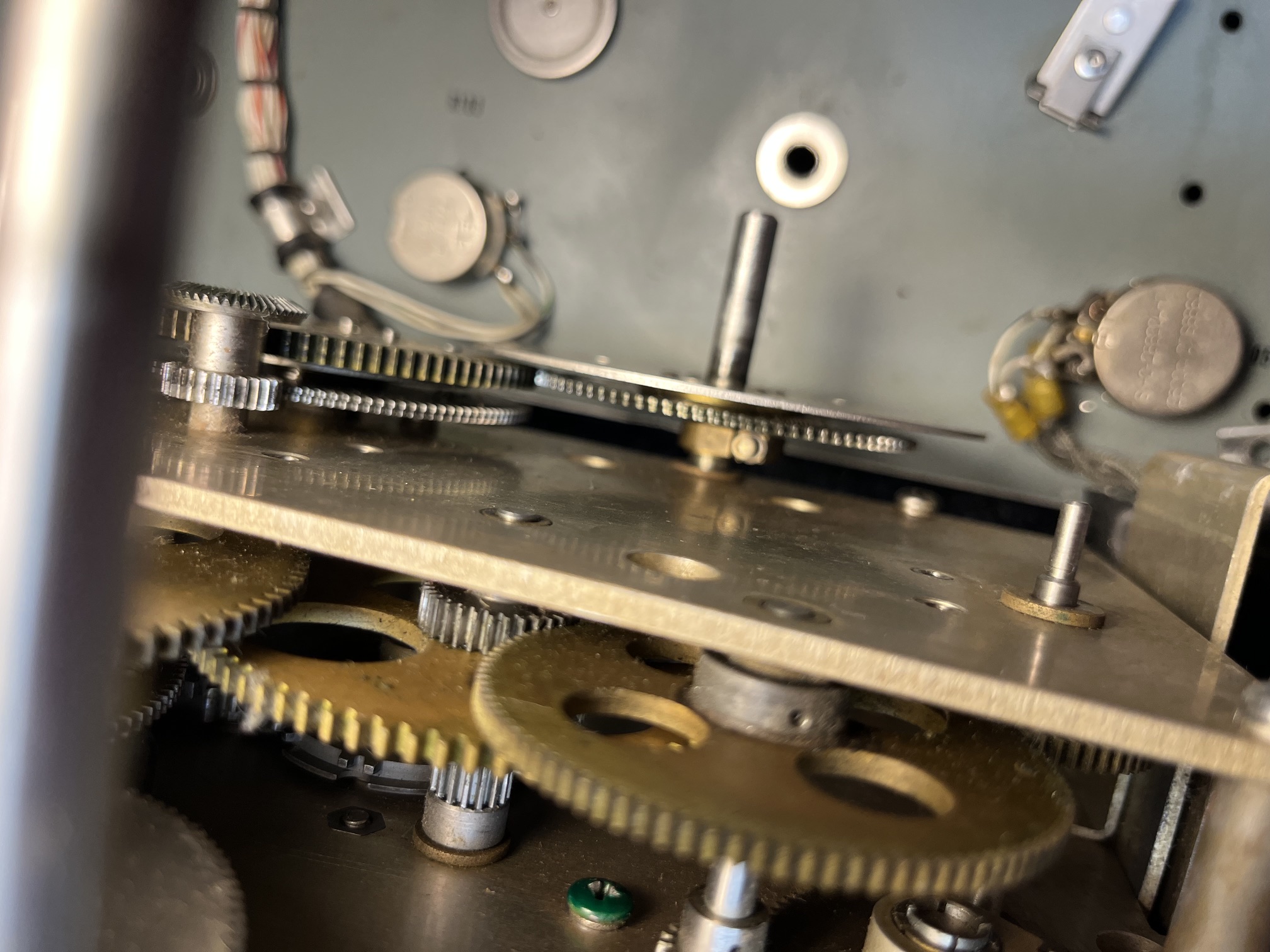

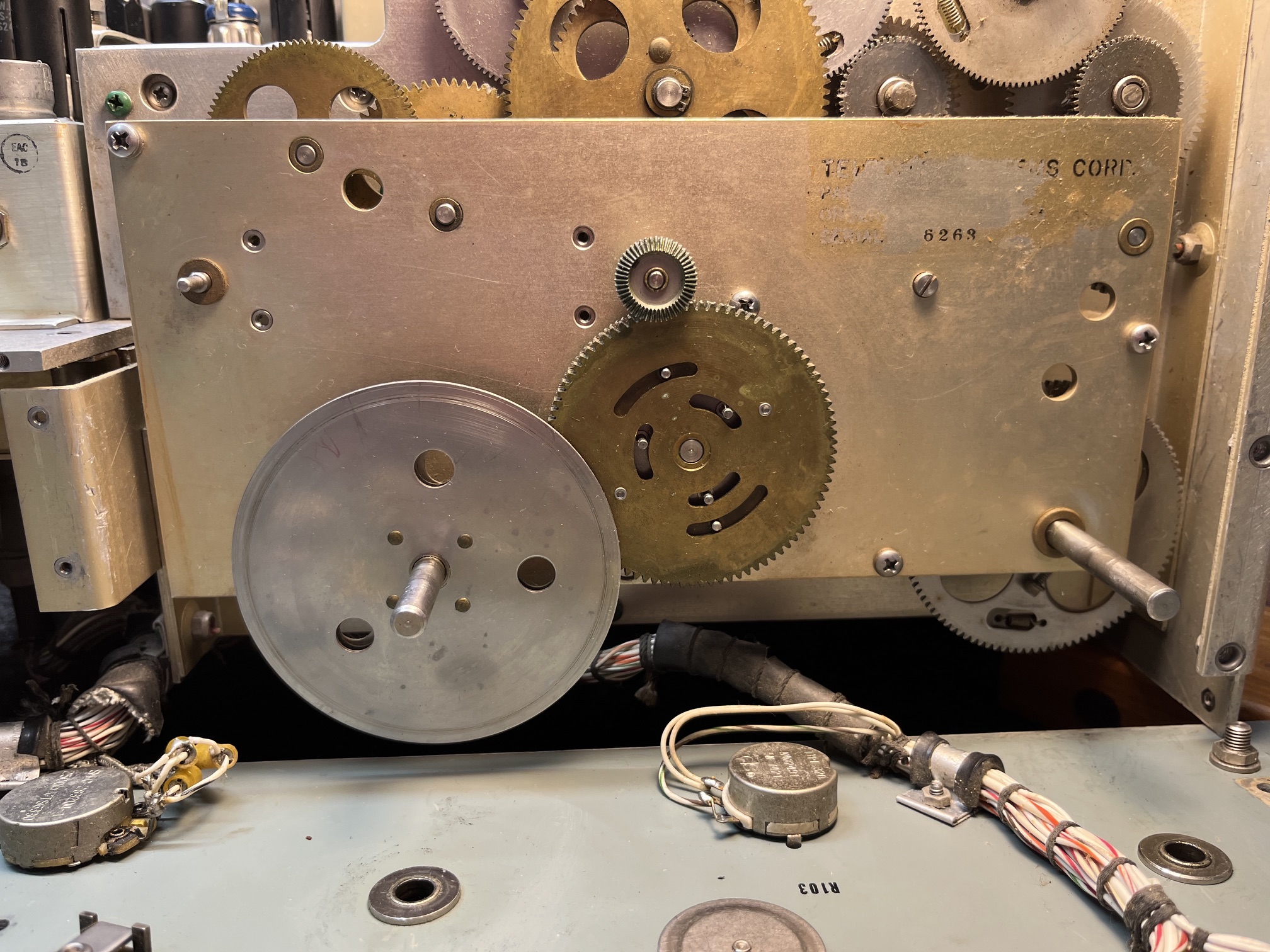

I dont know if you can get see this. Now what? I see how to remove the KHZ gear but not sure about the clutch disk and the “gear” above it.

Paul
> On Jun 16, 2026, at 10:09 PM, Jacques Fortin via R-390 <r-390 at mailman.qth.net> wrote:
>
> Here is the needed clamp.
>
> 73, Jacques, VE2JFE in Montreal
>
> Hello Nick,
> Good try, but the hole on this one is too big (0.435) the one to be replaced
> measures 13/32" (0.406).
> <00-99-SM-B-178486-CLAMP.pdf>
