[R-390] R-390A stuck slugs

[Jacques Fortin]

Karsten, can you give more precisions about the "stuck" slugs ?
Are you talking about the top or the bottom ones in each of the IF
transformers, or both ??
Are the slugs seems to be cracked ?
Is the slug of Z503 moving ?

Which tool are you using ?
The hexagonal openings of the tuning slugs are 3/32th of inch in size
(2,38mm)
Maybe that if you use metric size drivers (2,0mm ?) that they just "turn" in
the cores hex openings without moving those.

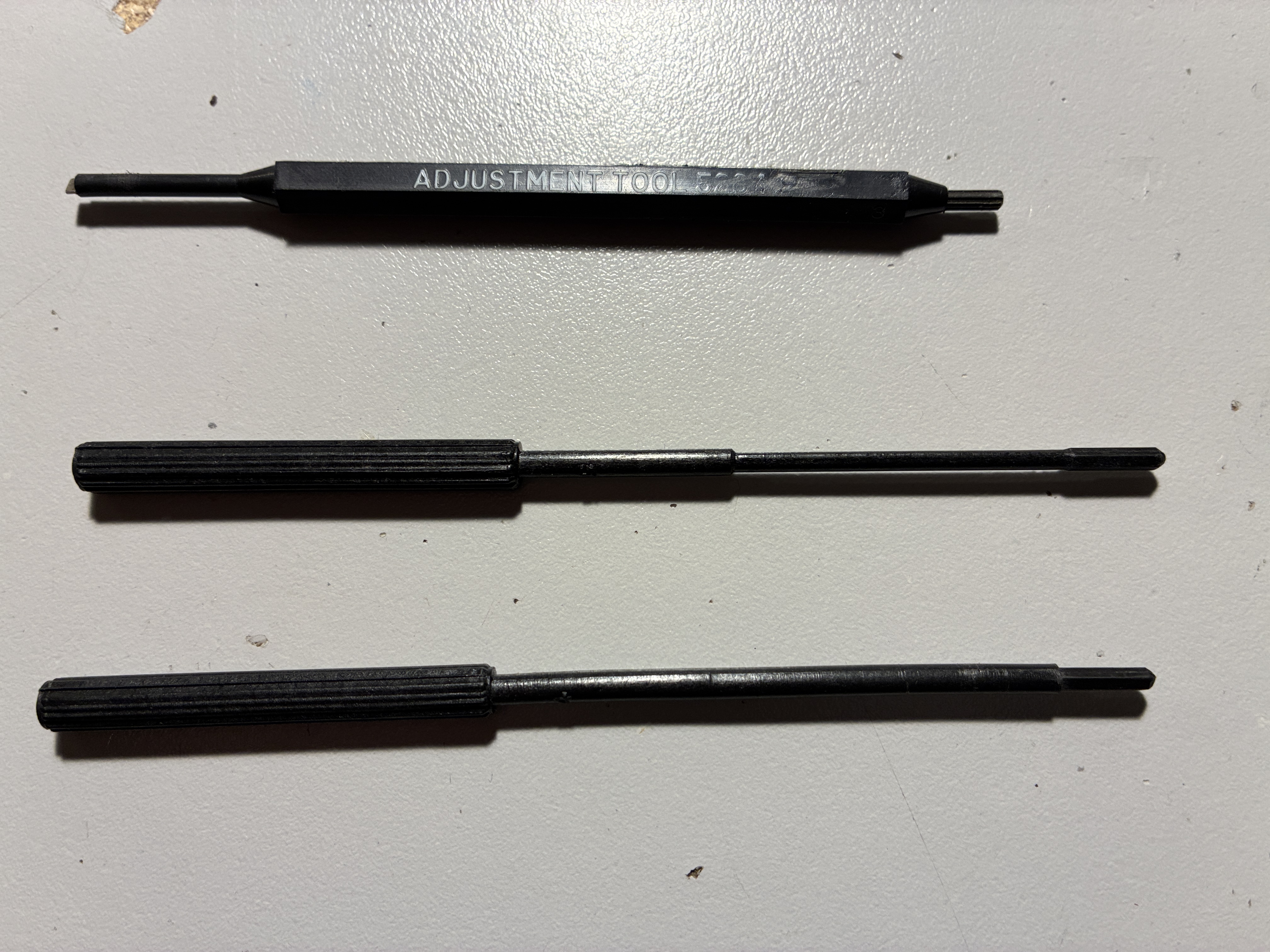

See attached picture.

73, Jacques, VE2JFE in Montreal
