[R-390] Misbehaving Audio Pot

[jkharvie]

Sent from AOL on Android

  On Wed, Sep 25, 2024 at 13:05, Roy Morgan<k1lky68 at gmail.com> wrote:   Get Caig FaderLube. Make tiny hole in the pot. Squirt and rotate control. If that does not work, find a different pot or take that one apart.

Is that pot linear or audio taper? Allen Bradley Type J pots cost over $50 each new. (Do they still make them?) One of those will last the rest of your life.
Roy Morgan
K1LKY Western Mass
K1LKY68 at gmail.com

> On Sep 25, 2024, at 11:10 AM, Barry Scott <72volkswagon at gmail.com> wrote:
>
> When I turn the LOCAL GAIN in my R-390/URR all the way CCW, something is
> causing the audio to suddenly increase significantly.  It's just at the
> very CCW position and I suspect dirt/trash/whatever is the cause and a good
> cleaning would probably fix it.
>
> Anyone opened one of these and successfully repaired it?  I've done that
> for a lot of other pots very similar to this one and I think it's quite
> doable but thought I'd ask here first.
>
> If I can't fix it with a cleaning, then I think I could swap the internals
> with another similar pot or maybe just swap the LINE GAIN pot with the
> LOCAL GAIN pot as I really don't use the LINE AUDIO all that much (except
> to watch the meter because that's kind of fun to do).  I'd just get another
> pot but I'm not finding any just like it - at least not yet.
>
> Thanks,
> Barry - N4BUQ
> ______________________________________________________________
> R-390 mailing list
> Home: http://mailman.qth.net/mailman/listinfo/r-390
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:R-390 at mailman.qth.net
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html
______________________________________________________________
R-390 mailing list
Home: http://mailman.qth.net/mailman/listinfo/r-390
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:R-390 at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: http://www.qsl.net/donate.html
-------------- next part --------------
A non-text attachment was scrubbed...

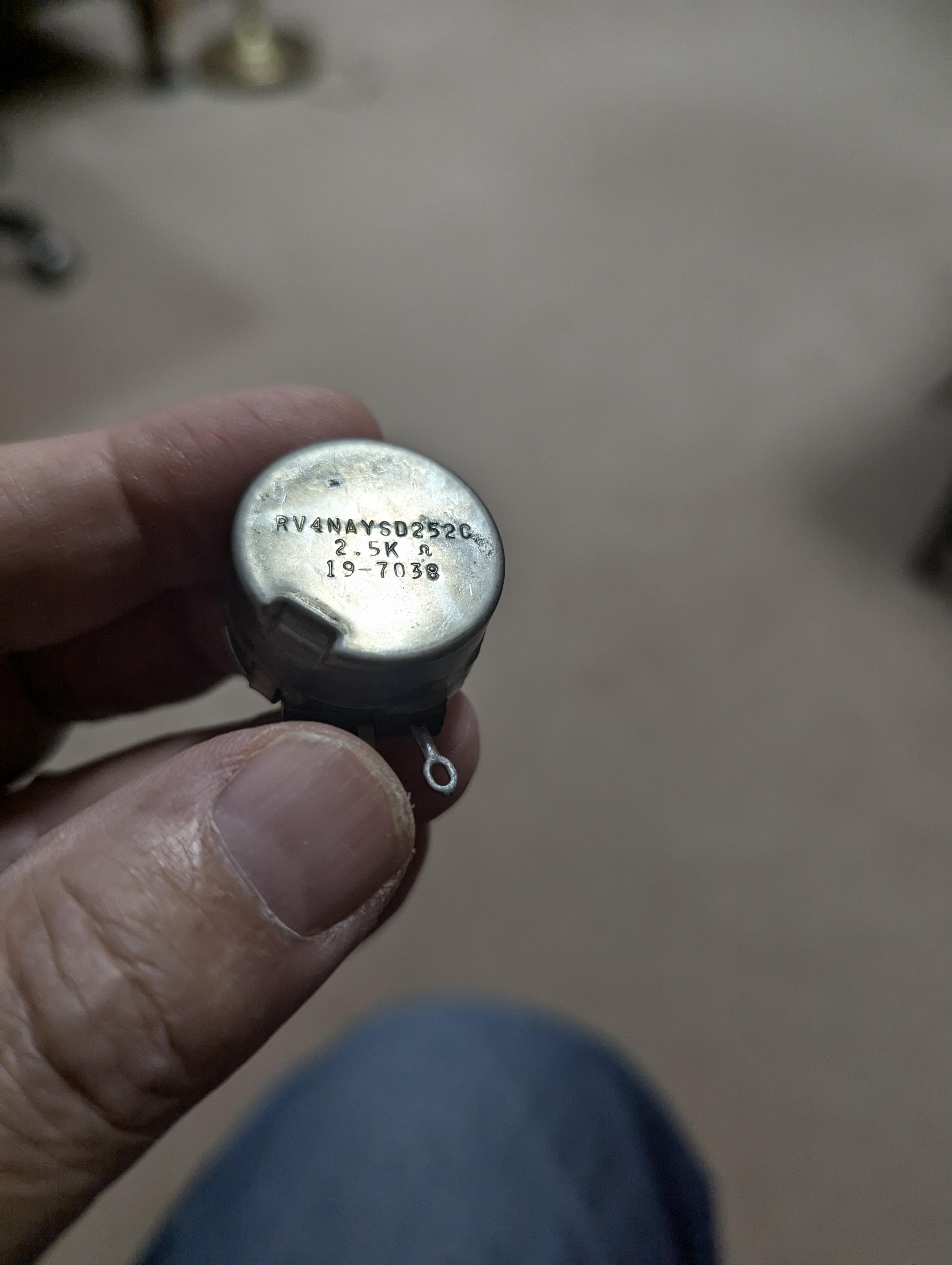

Name: PXL_20240925_195656515.RAW-01.COVER.jpg
Type: image/jpeg
Size: 2093935 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20240925/24c7e7d2/attachment-0002.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

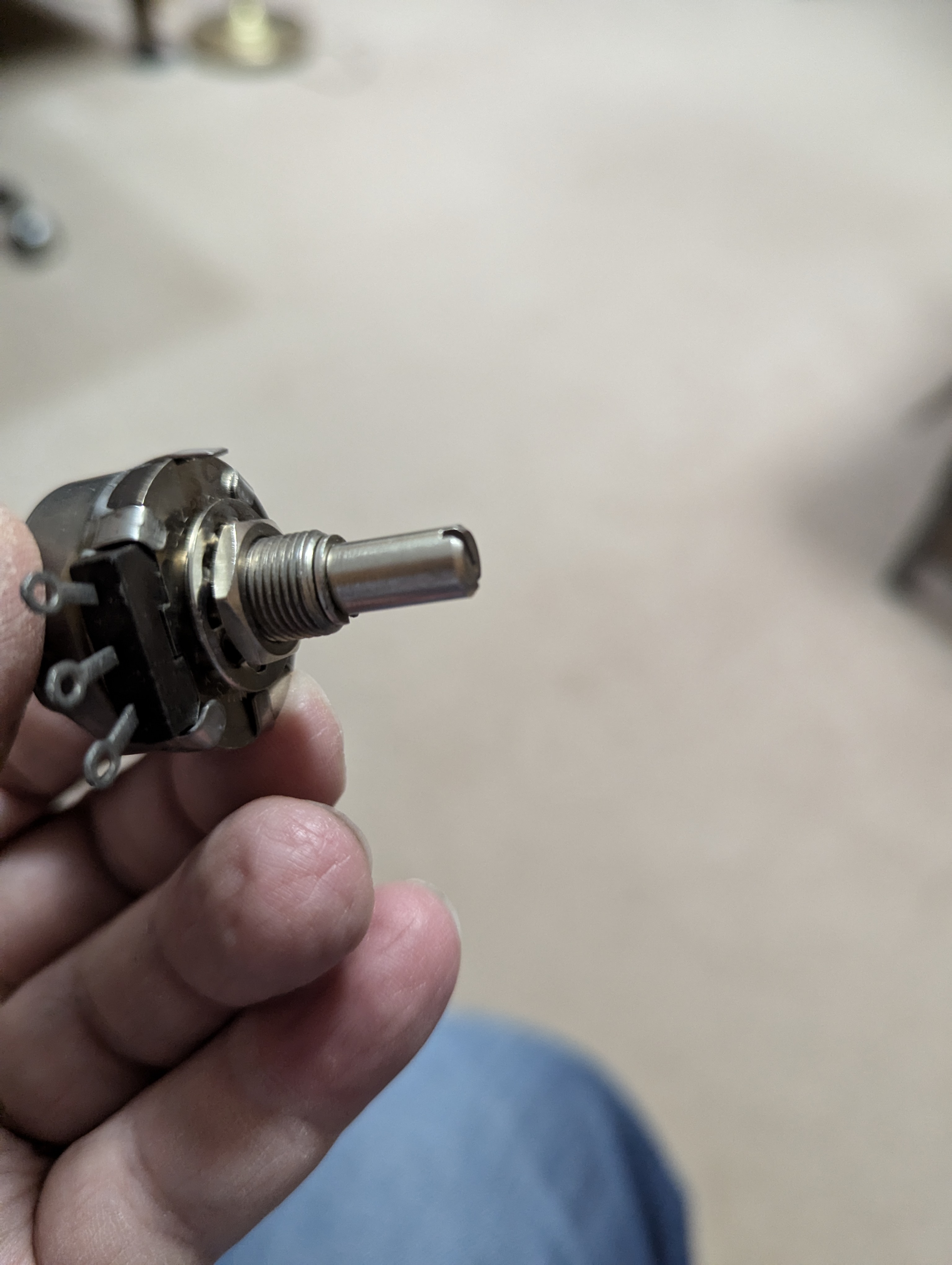

Name: PXL_20240925_195631089.RAW-01.COVER.jpg
