[R-390] Wanted: R-390 IF Deck/Parts

[Jacques Fortin]

Hi Alex,
Despite being physically different, the Z503 parts in the R-390 and R-390A are electrically identical.
Meaning that a Z503 extracted from a R-390A IF deck can be used to replace the defective one in your R-390.

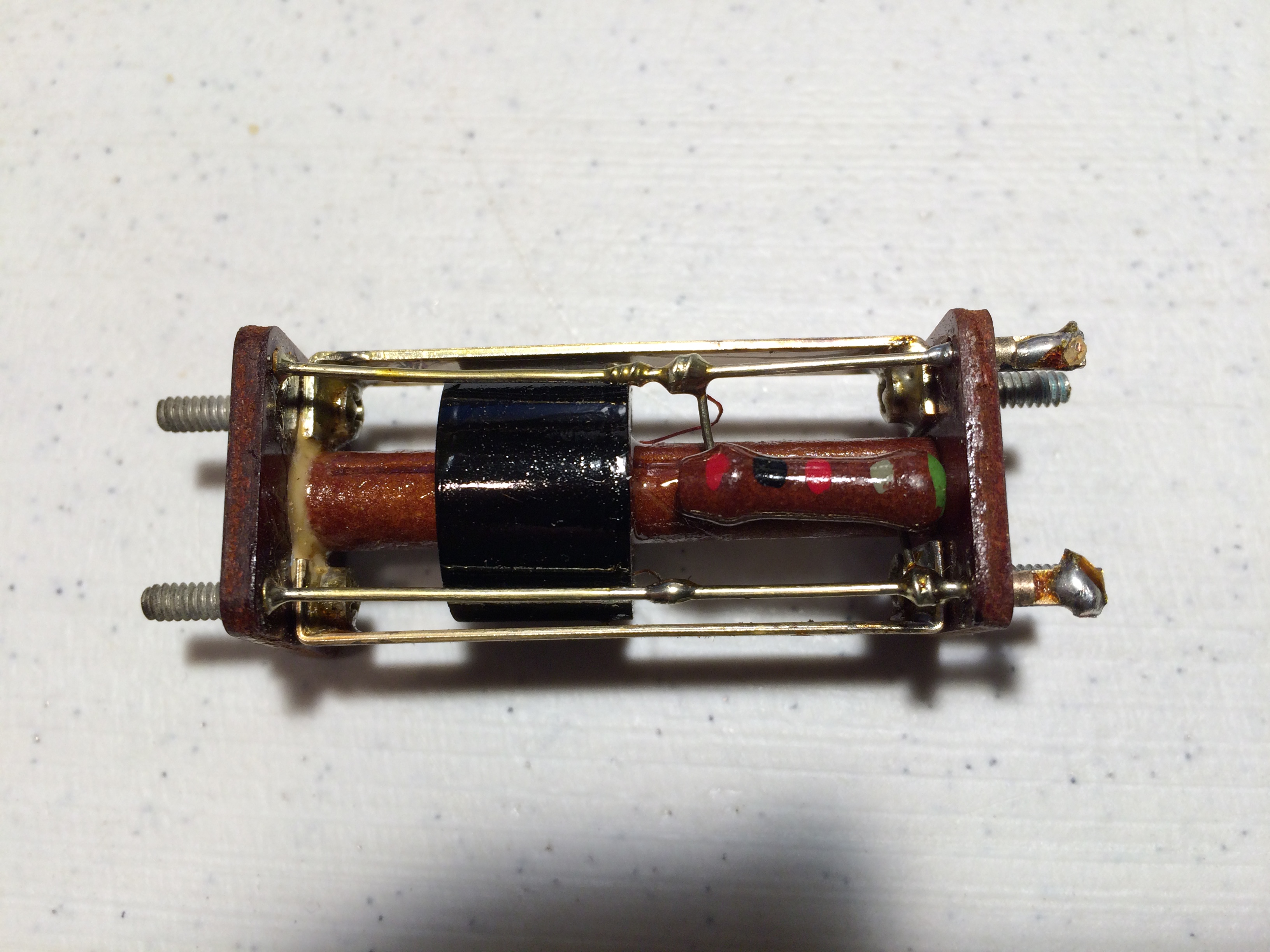

See picture of a Z503 from a R-390A.

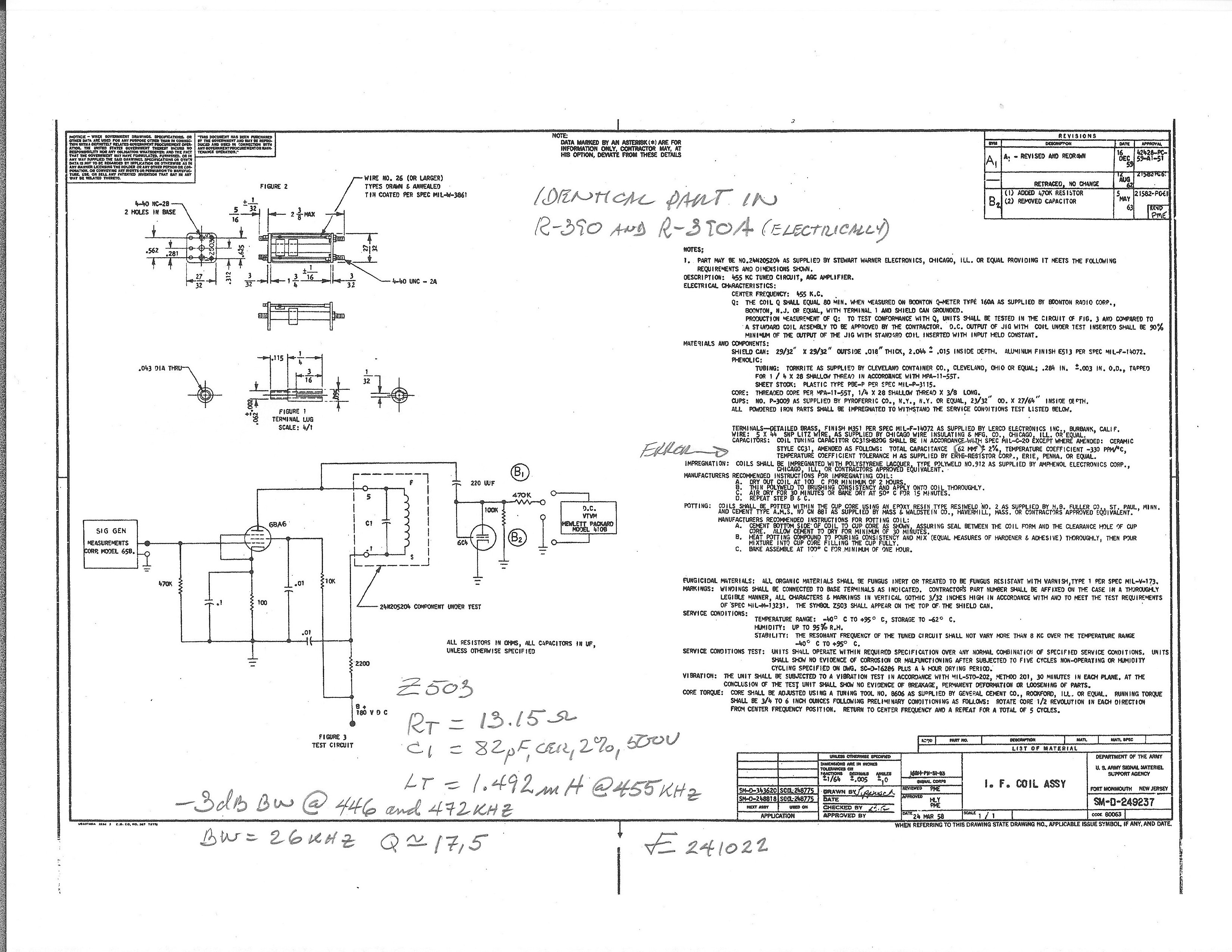

Some other info about in the .pdf attached.
Just being curious: how yours failed ?
Is the winding test open ?
Can you provide some pictures of it with the cover removed ?

73, Jacques, VE2JFE in Montreal
