[R-390] R-390/URR - PTO Flatness

[Jacques Fortin]

Barry, if your 70H-2 PTO have a top adjustment on the Z702, you have the 2nd
version (see attached .pdf for the differences).
This 2nd version 70H-2 is virtually identical to the 70H-12 used in the
R-390As.

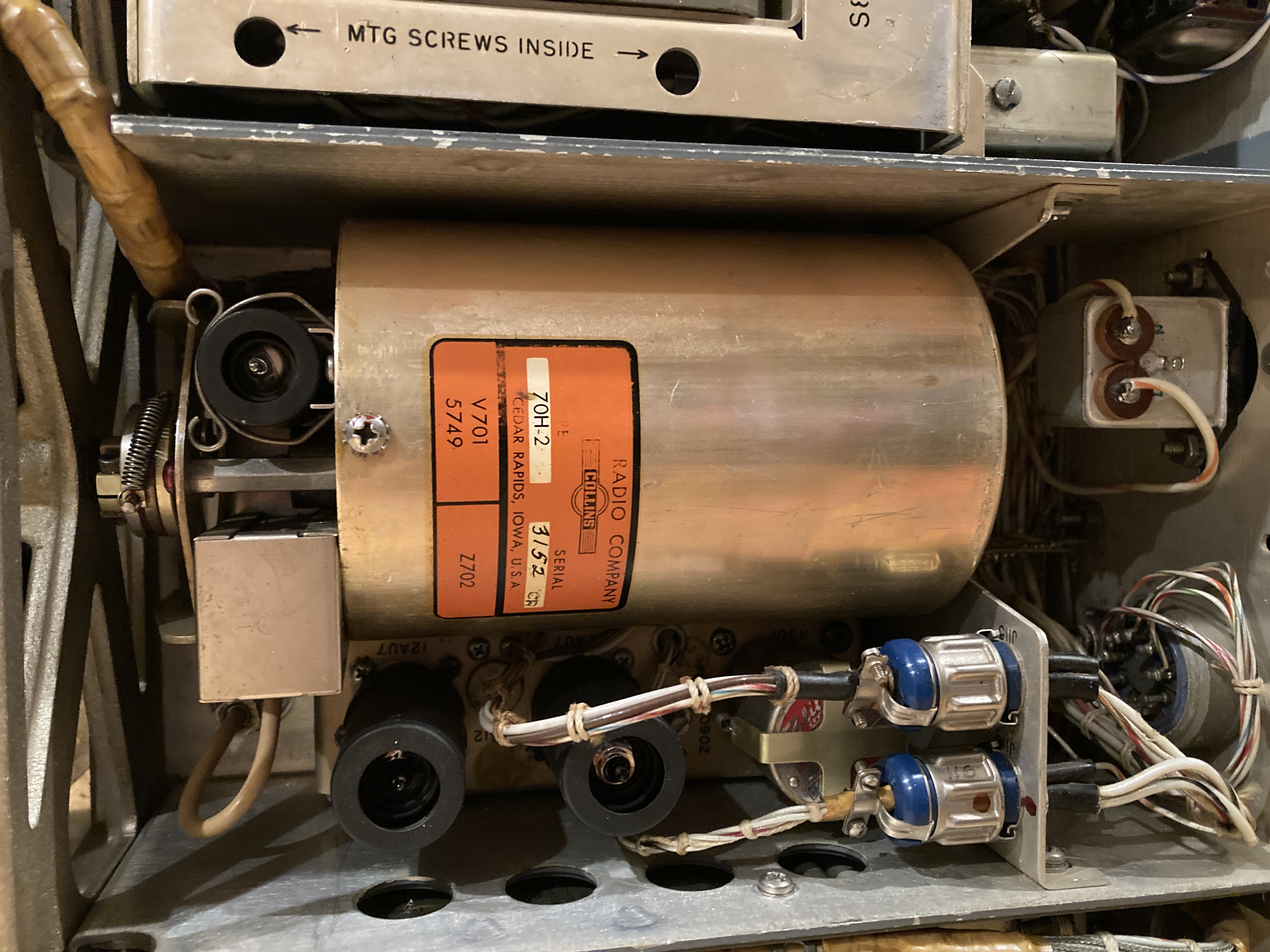

The 1st version do not have a top adjustment (like in the picture attached).

73, Jacques, VE2JFE in Montreal
-------------- next part --------------
A non-text attachment was scrubbed...
Name: IMG_4485.JPG
Type: image/jpeg
Size: 3646510 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20241120/f182f761/attachment-0001.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: TM11-5820-357-35_p16.pdf
Type: application/pdf
Size: 175059 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20241120/f182f761/attachment-0001.pdf>
