[R-390] R-390 (non-A) - Low RF Gain or bad Antenna relay?
k1jos at att.net
k1jos at att.net
Mon Nov 4 20:14:05 EST 2024
Several years ago, Don W5OR (SK) asked me to share administrator responsibilities with him to manage the r-390 mail list server. While I have several R-390/R-390A, I never had the need to repair any. So, this is my first post for help…

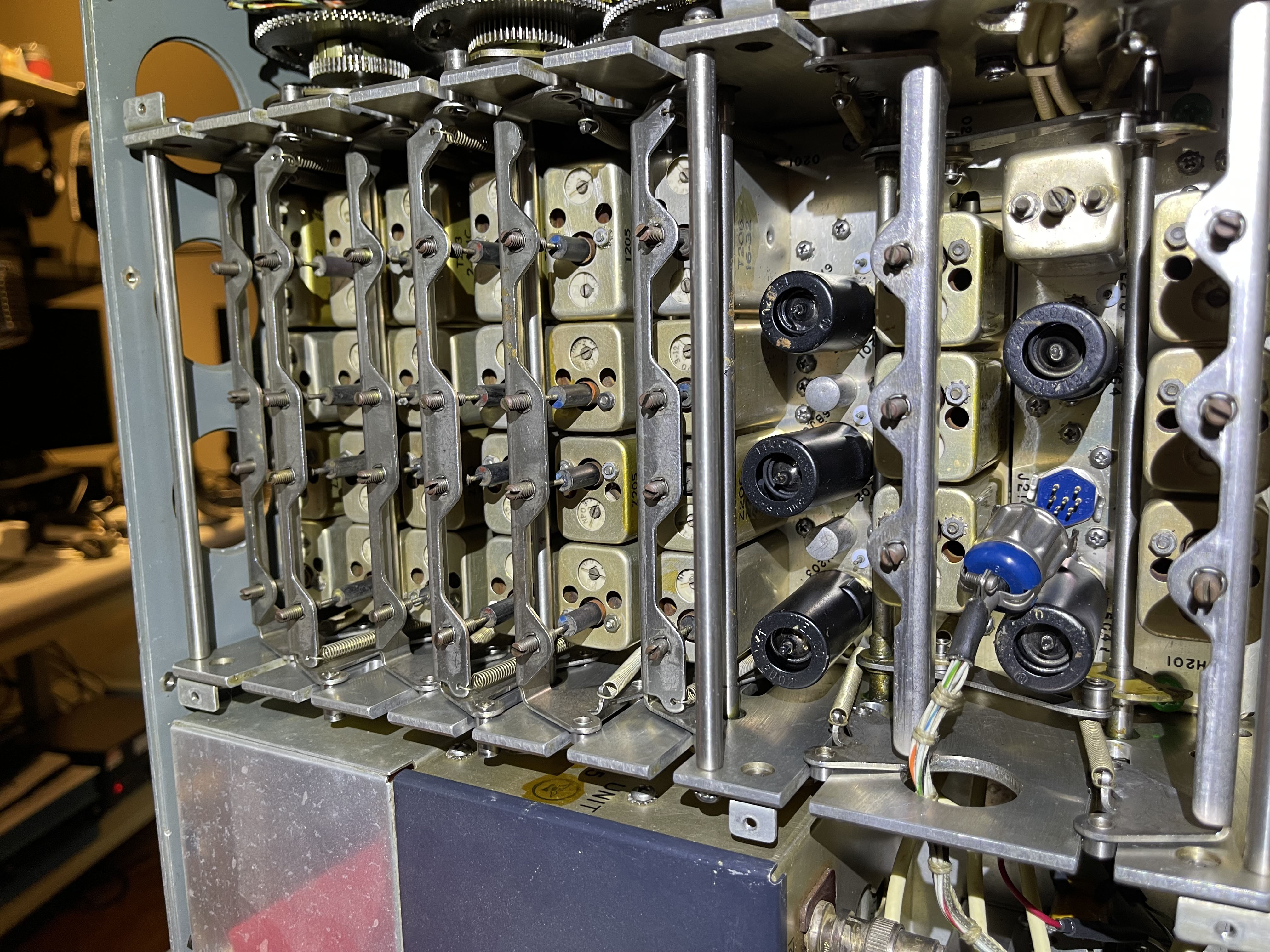

My R-390 has gone partially deaf. It sits in a fan-ventilated rack which rarely gets rolled around. Its last maintenance was in 2002 when Don Heywood did an incredibly thorough job. It worked great until a few weeks ago when it became completely deaf. My initial inspection found something bizarre, the RF cable had popped loose (see attached picture). After reconnecting, it was only partially deaf. I could tune in moderate and strong signals across all bands but I need to set Local Gain to 7 or higher just about where hum comes into the speakers. The best description is what you might expect to hear if RF Gain is not at maximum. Also, another ‘clue’ is I noticed that switching to CAL does not remove or attenuate a CW or phone signal.. sounds same as if in AGC. I checked that the antenna relay is working:
* On powering to STBY – the relay clicks and pulls in visually and checking both twin-ax connector pins, I confirmed both 2 pins are grounded.
* On switching to AGC or MGC – the relay clicks off and neither of the twin-ax pins are grounded.
* On switching to CAL – the relay clicks on again and the twinax pins are grounded. The manual says in CAL, unlike in STBY, +180 volts de is applied to the rf. if., af, and calibration oscillator stages and in both STDBY and CAL, terminal 2 of CR801 is grounded to apply 6 volts dc to relay K101.
I also checked Break-In and that works in AGC giving complete silence, but the manual says that’s achieved by grounding the AF output in addition to grounding the antenna inputs. How does that prevent overloading the RF section with a local transmitter?
My 1st question is, why is there no signal attenuation when switching to CAL? Is there anything in the electromechanics that could explain this? Is this coincidental to the R-390 partial deafness or part of the same problem?
Pending some replies, my next step is to check the tubes in the RF and audio stages but I’m hoping that my description may sound familiar to the many experienced members of the list.
TIA Jerry
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Loose RF Cable_reduced.jpg
Type: image/jpeg
Size: 1683946 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20241104/1cb483b9/attachment.jpg>
