Late to comment also:

The original poster showed a photograph that he ALREADY HAS A VERY FINE line to voice coil transformer.

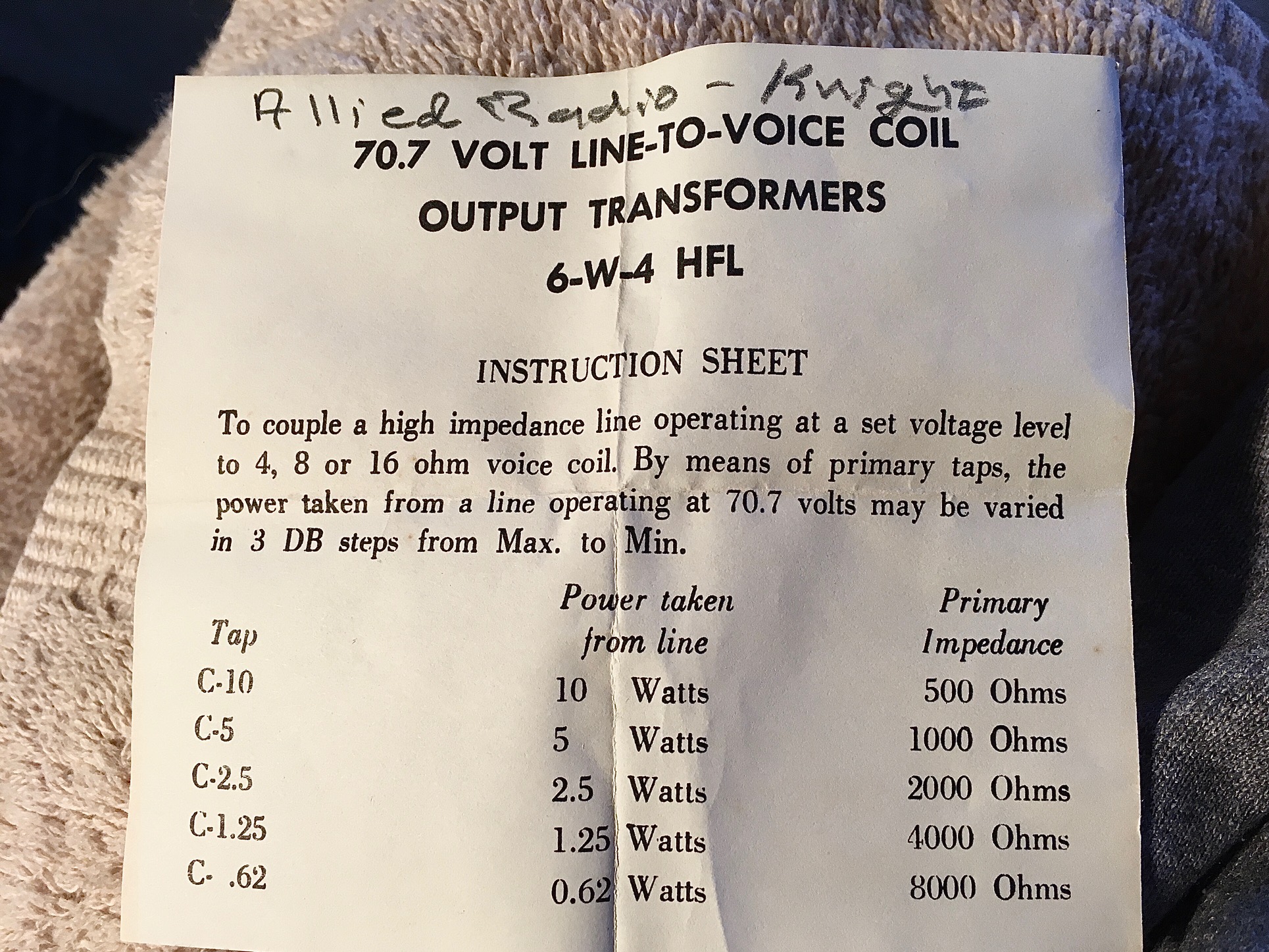

Attached is the data sheet from a 10-watt line transformer. The 10-watt line input tap is rated at 500 ohms impedance - this is ideal for the R-390A line output to drive a normal speaker.

Some notes:
-Stated impedance of speakers VARY GREATLY over the range of audio frequencies
-The R-390's radio maximum audio output available power is about ONE WATT (?)
-A reasonably efficient speaker gives you plenty of sound driven by a small portion of a watt.
-Most any line to speaker transformer will "work a treat", even though original costs and quality levels varied greatly**
-Some such transformers are meant for 25 volt lines. Input impedance for them at corresponding power levels will be lower.

**My security contractor suggests that I neither confirm nor deny that I have a pair of Altec Lansing Peerless Type 15066 line transformers rated at 8, 16 and 32 watts operating level.
