[R-390] 600 to 8 ohm speaker converter

[K PERALES]

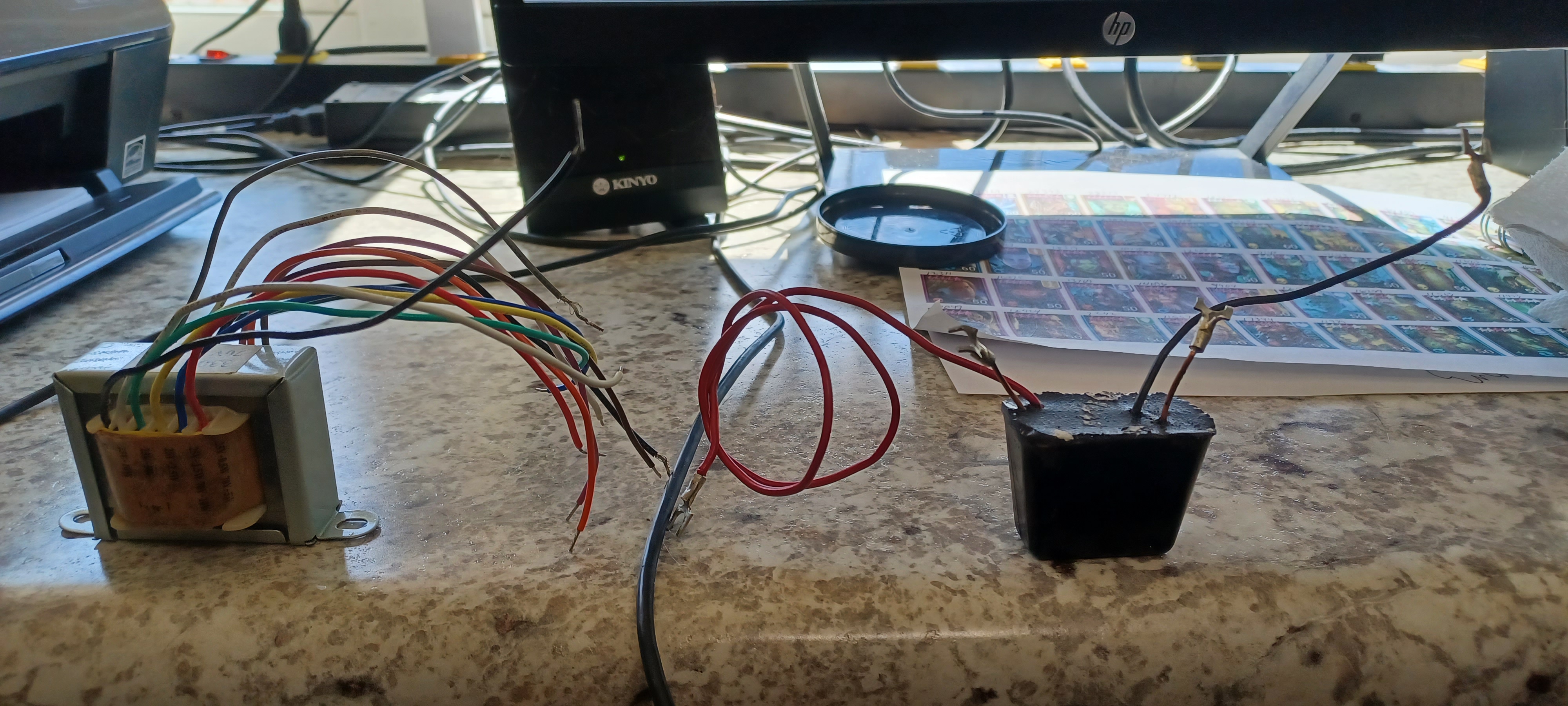

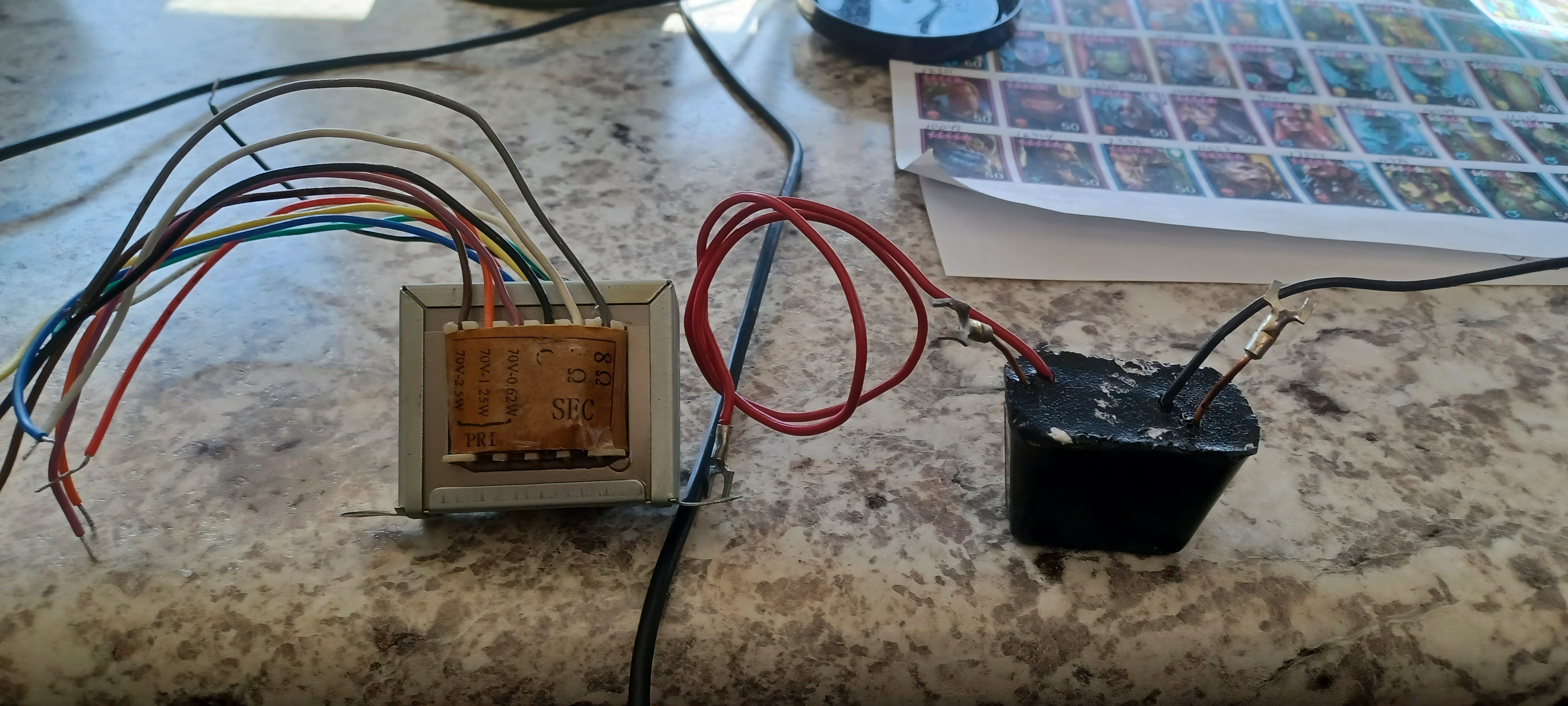

When I got my R-390 it has what I assume to be some kind of transformers to allow a modern 8ohm speaker to be hooked up.  I did not think to diagram how the wires were hooked up.  Is there any manual that tells a non-electrician how to connect these transformers to the R-390A to let me listen without headphones.

Ken

-------------- next part --------------
A non-text attachment was scrubbed...
Name: 20220214_123550.jpg
Type: image/jpeg
Size: 1843166 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20220214/2c884b31/attachment-0002.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 20220214_123635.jpg
Type: image/jpeg
Size: 1871487 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20220214/2c884b31/attachment-0003.jpg>
