[R-390] Question About the 20 Pin male bulkhead on the IF deck

[Doug Hensley]

 Yep, I'm nailed.  Thanks for the prompt Steve.  See attached.  Looks like two wires
(red/white) are coming up on it.  But, the thought of changing the connector makes the
heart burn even worse 🙁 ....  I used to have a small "micro torch", a little handheld
butane thing.  If I can find it, that would make quick work of heating a point on the pin,
at the risk of melting down the base molded plastic of course.

Wife did give me one option:  "Quit complaining and just throw that old thing away!" ...

Doug W5JV



Visit https://www.qrz.com/db/W5JV for some great vacuum tube finds.



________________________________
From: Steve Carter <kd0pxx at gmail.com>
Sent: Thursday, July 8, 2021 9:30 AM
To: Doug Hensley <w5jv at hotmail.com>
Cc: Collins R-390 HF Receiver List <r-390 at mailman.qth.net>
Subject: Re: [R-390] Question About the 20 Pin male bulkhead on the IF deck

Hi Doug
IS that pin even hooked up?
If not, just cut it back?

If you're going to bend it back, maybe heat it as you bend it.

I had pins snap off, Sometimes you can just butt solder them back together...

Of course the right way is to replace the connector. :-)
Steve


On Thu, Jul 8, 2021 at 9:04 AM Doug Hensley <w5jv at hotmail.com<mailto:w5jv at hotmail.com>> wrote:
When I looked at the picture I took of the jumper that I need, I noticed
a damaged pin on the connector on the corner of the IF deck.  See attached.

My memory, which is getting as bad as my old lawnmower seems to recall
the last time I tried to straighten a Collins connector pin, it broke off.  So,
armed with this indigestible memory, I'm wondering if heating it and putting
a light coat of solder might not give it a fighting chance?

Any engineers out there with experience in this?

TIA,

Doug W5JV




Visit https://www.qrz.com/db/W5JV for some great vacuum tube finds.


______________________________________________________________
R-390 mailing list
Home: http://mailman.qth.net/mailman/listinfo/r-390
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:R-390 at mailman.qth.net<mailto:R-390 at mailman.qth.net>

This list hosted by: http://www.qsl.net
Please help support this email list: http://www.qsl.net/donate.html


--
Steve
KD0PXX

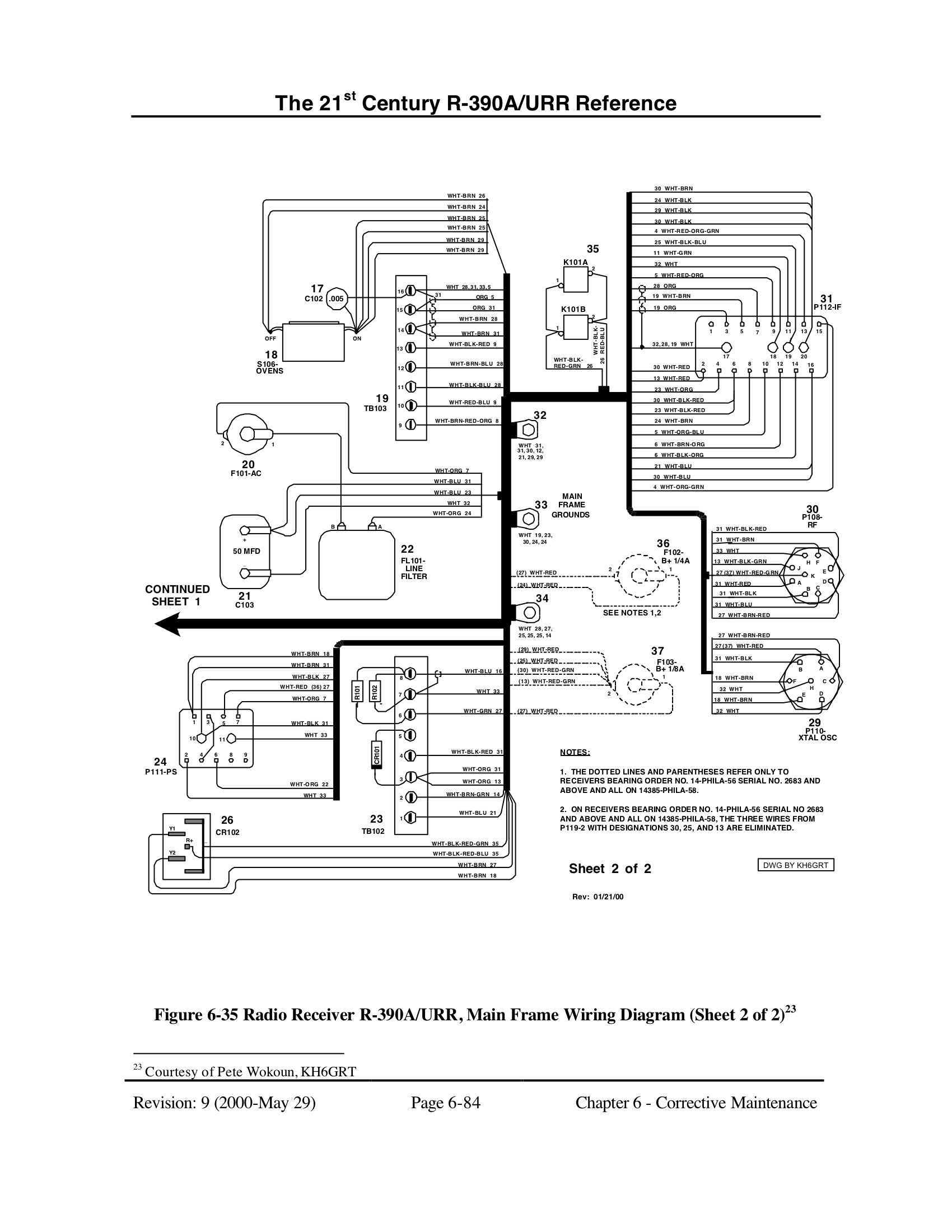

-------------- next part --------------
