[R-390] CX-1363/U

[wc4g@knology.net]

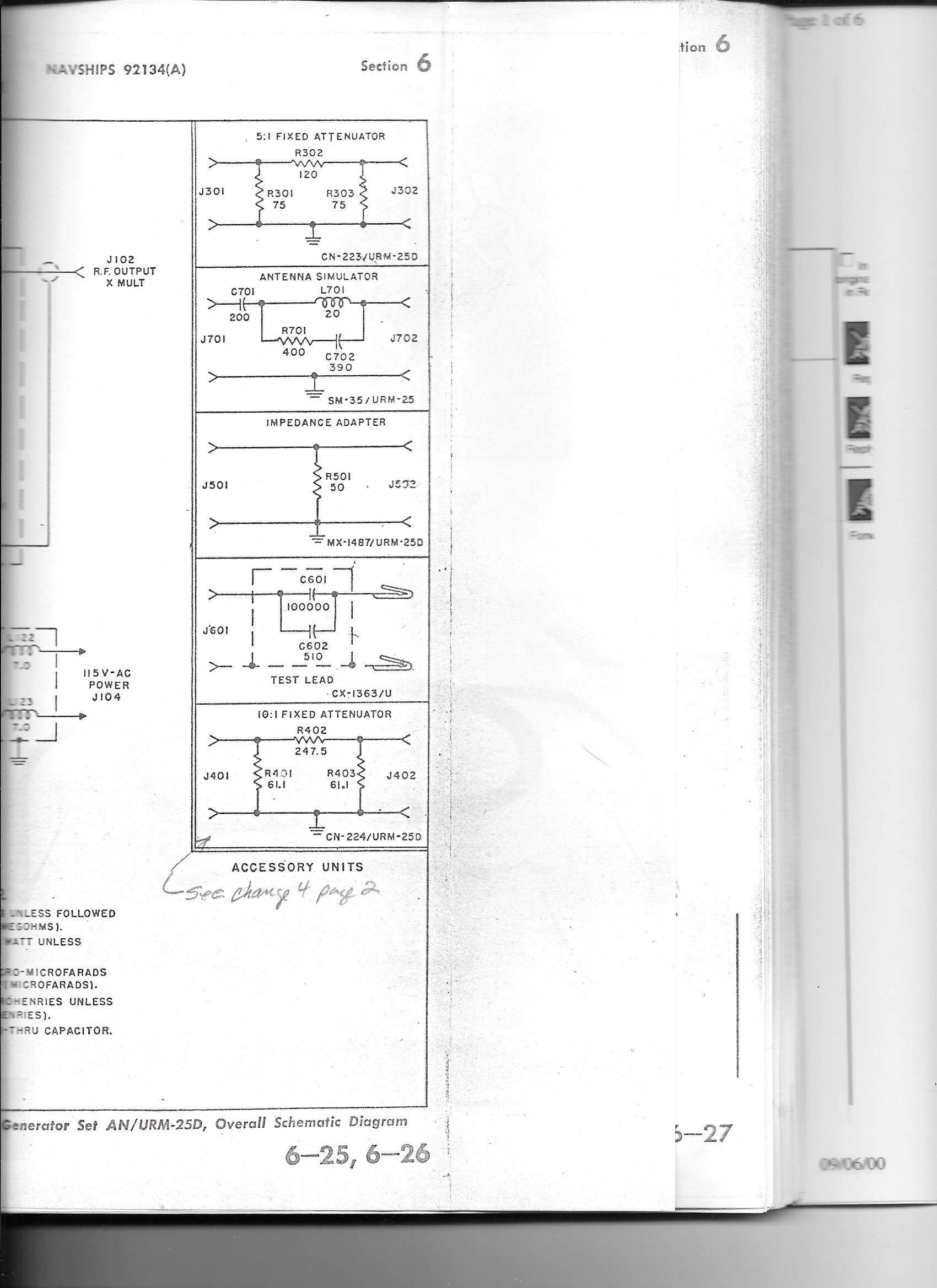

Hello Bob, I have scanned the last portion of the schematic of the URM-25
showing the schematics of what's inside the test accessories.

There is another document you should download  "TB SIG 319" which shows
adapters used in the alignment of the R3XX family

Regards,
Don WC4G

On Wed, Apr 8, 2020 at 7:43 PM Robert Nickels <ranickel at comcast.net> wrote:

> Looking for a schematic or description of what's inside the CX-1363/U
> test least that is part of the AN/URM-25 so I can make an equivalent.
> Haven't been able to turn up anything but a photo thus far.
>
> Thanks and 73,
> Bob W9RAN
