[R-390] Calibrator Problems

[jgedde at optonline.net]

I had my RF deck out yesterday to replace a few more bad resistors.  After I
put it all back together, I noted some strange behavior with the calibrator.
It used to be when I engaged the calibrator, it would swamp out anything
being received and I'd get clear calibration signals all over.  Now, they
seem feeble and are often overcome by stations being received or even noise.
With the antenna disconnected, I can hear them loud and clear.

I'm a bit puzzled about the output from the calibrator's cathode follower.

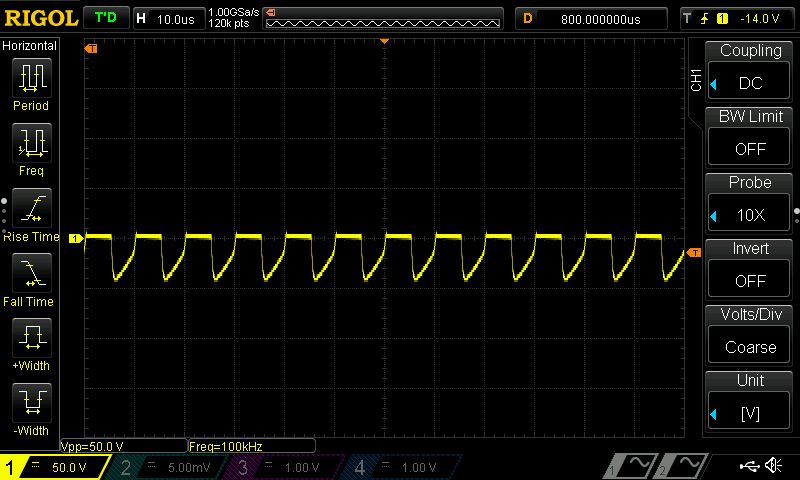

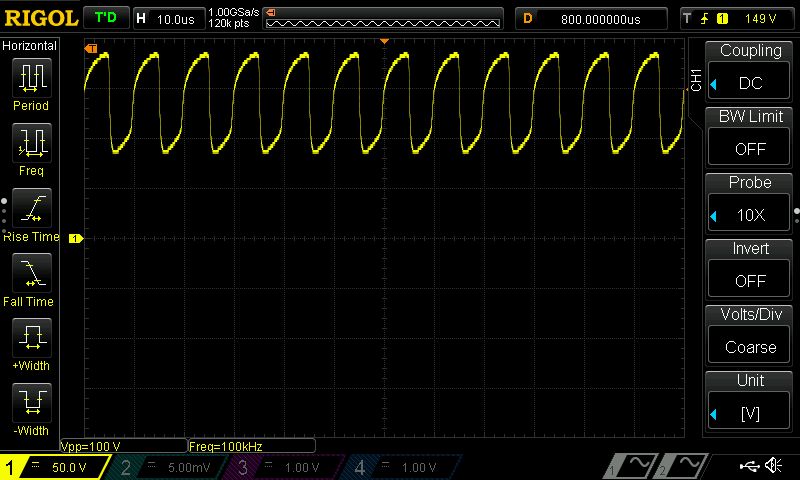

I captured some oscilloscope waveforms which I've attached, and the
calibrator output is rather small compared to what's on the grid...  What do

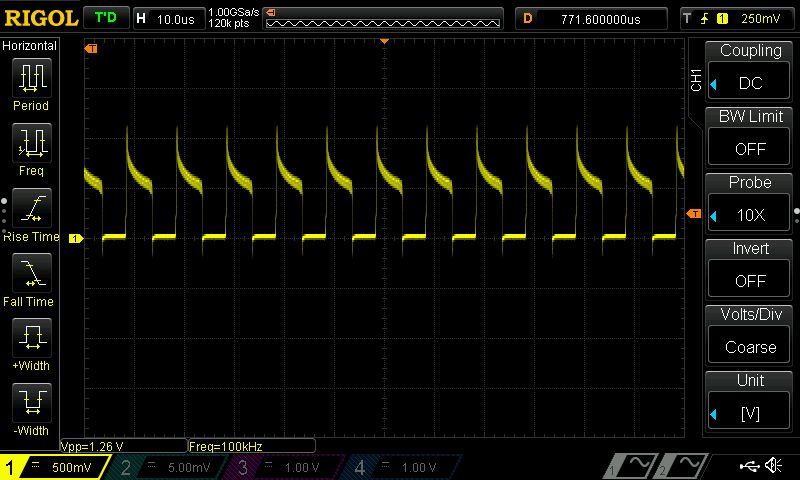

you think?  The grid and the multivibrator were captured with a vertical
scale of 50V/div.  The output at pin 8 was captured at 500 mV/division.
Small in comparison.  I can't help to think it should be bigger sincew it's
coupled through a 1 pF cap into the RF amp.

John
