Hi jm,

the balun transforms 50 Ohms unbalanced to about 130 Ohms balanced. But most important is RF noise
cancellation (CMR).

The balun shown in your photo is much too large and thus has high (stray) losses (insertion loss).
Baluns at the receiver front-end should be as tiny as possible.

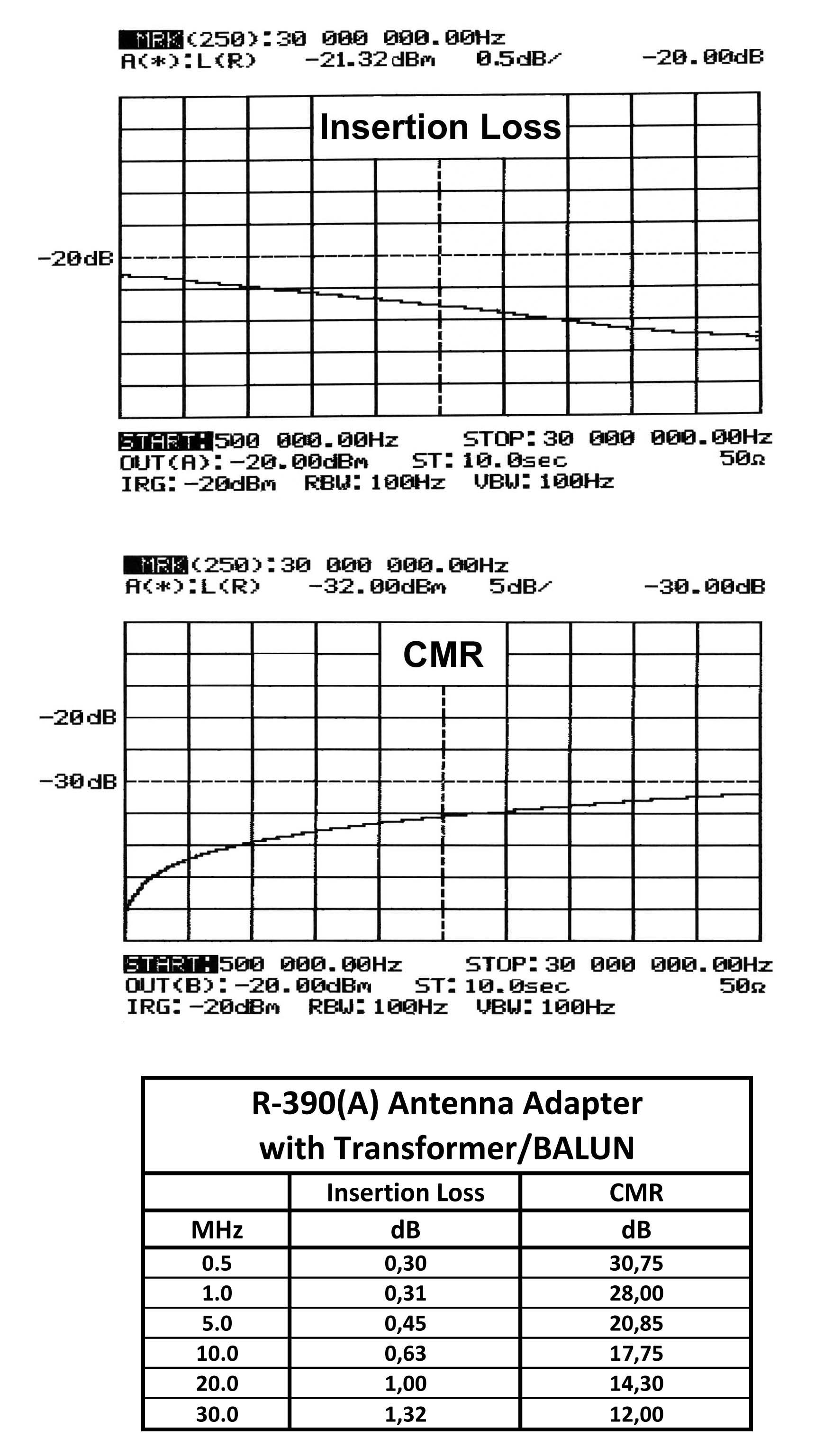

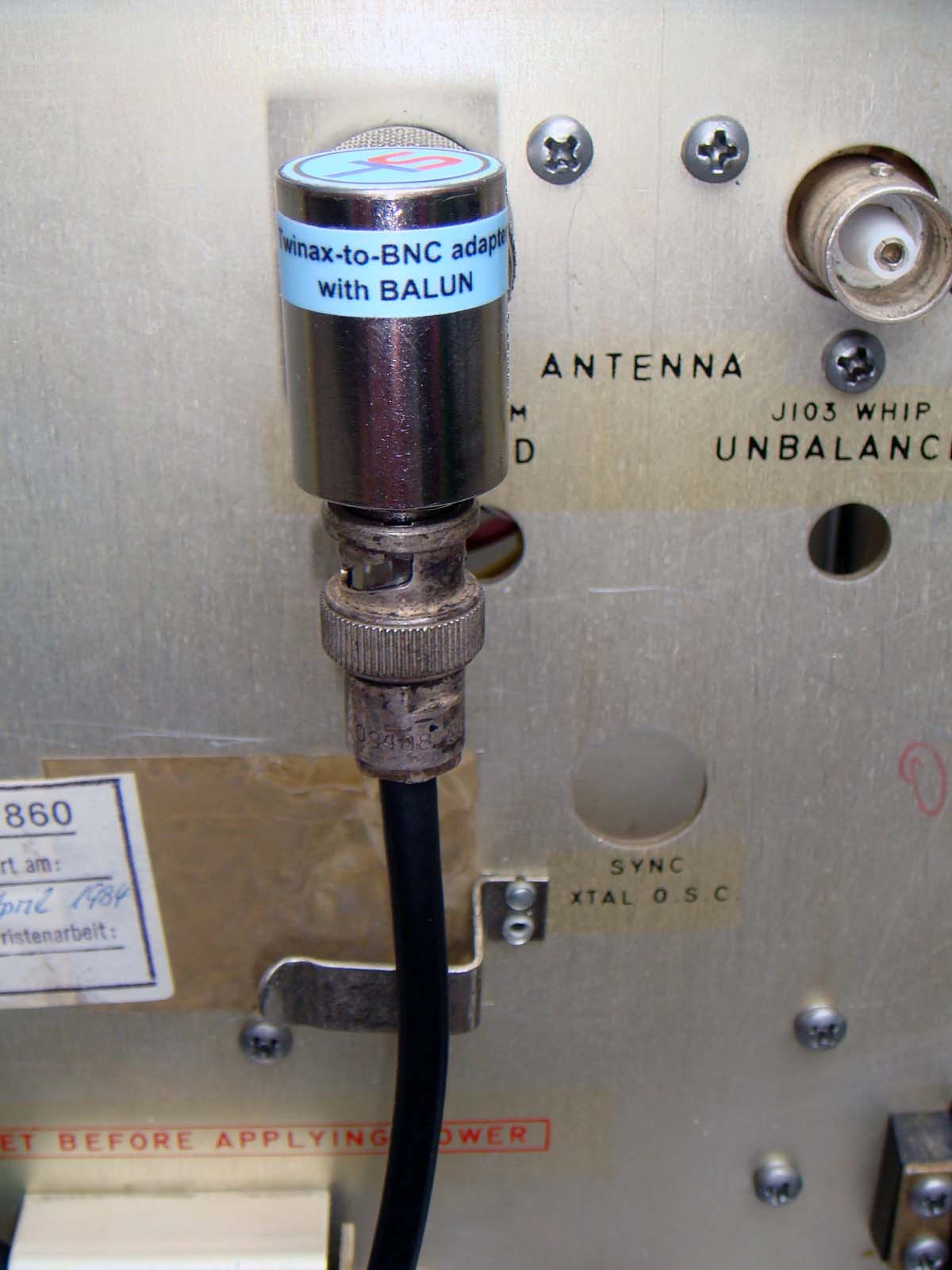

The enclosed photo shows an adapter containing a tiny balun with low loss (MiniCircuits). The second
photo depicts, charts a) insertion loss, b) CMR versus input frequency (0.5 - 30 Mc), c) both as
table.

sigmapert

am Montag, 29. April 2019 um 18:39 schrieben Sie:

> Re. Antenna connection

> Hi guys!

> I have done some experiments with the antenna connectors in the r390a.

> First of all, I have followed the extended and ‘official line’
>  instructions about the use of the balanced connector, grounding one of the
> terminals being the antenna connected to the other through a capacitor. My
> antenna is a long wire one fed with coax and pl259 connector.

> My questions:

> 1.       Sometimes I plug the antenna to the unbalanced connexion and I
> think that it is a slightly stronger signal.   Has it any sense? If so, why
> the common belief is the connection  to the balanced terminals? The
> military manuals state that the unbalanced connector is intended for whip
> and long wire specifically.



> 2.       I have found on ebay one r390a for sale. The seller mentions one
> mod in which the antenna is connected through a toroidal 4:1 balun instead
> of a capacitor (photo attached).  He claims that ‘matches and balances the
> 100+ohm receiver input to 50 ohm coax, grounding out household RF noise
> picked up by the coax shield. Popular adapters which directly connect the
> coax shield to one side of the balanced input let this noise in, and also
> cause signal loss due to impedance mismatch’.

> Has anyone tried this way?

> Many thanks and regards

> Jose Isasa EA8DCP
