[R-390] Collins R-389 RF deck assist request

[Don Heywood]

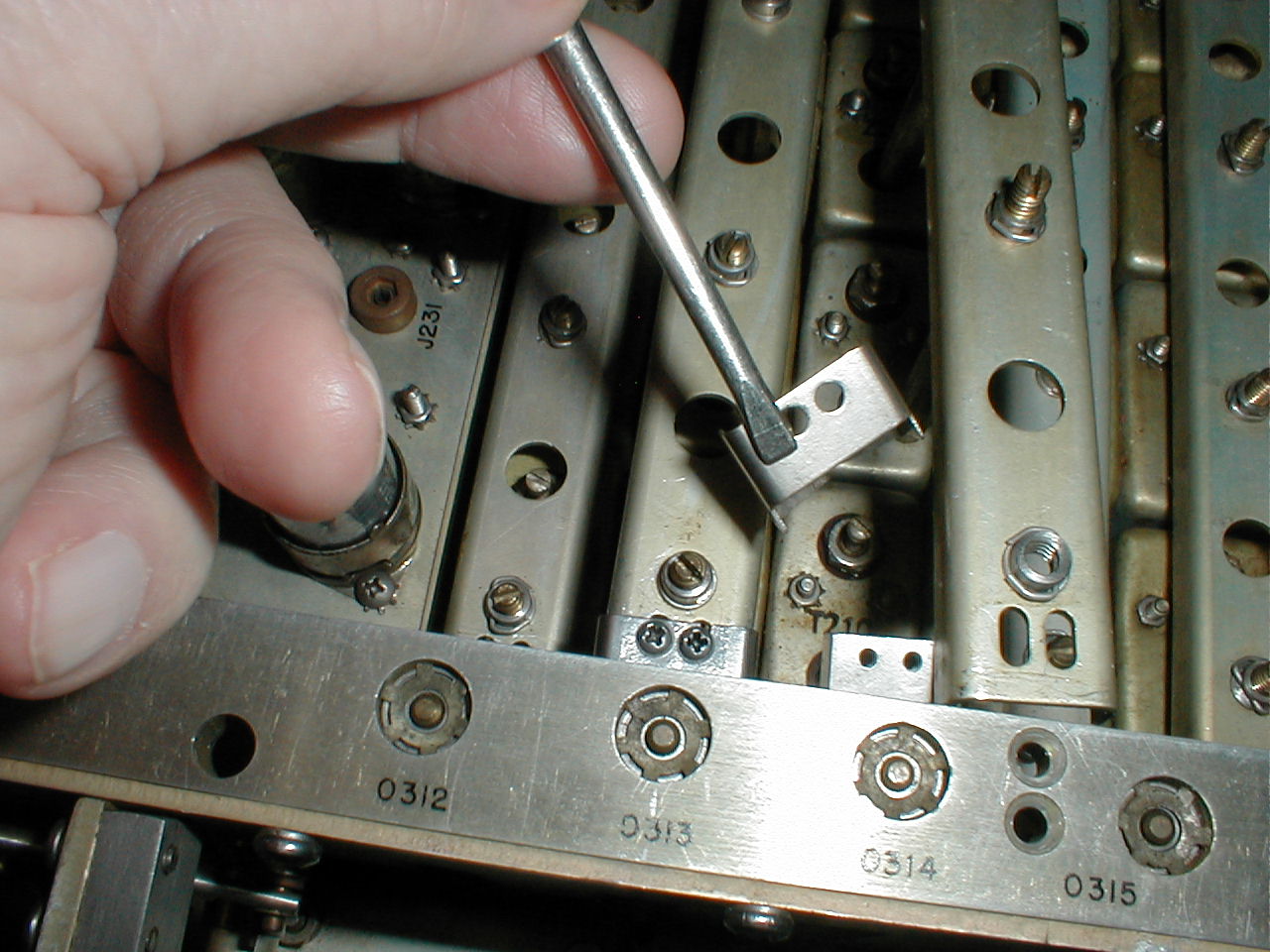

Would someone with expertise in the R-389 RF deck please explain to me how
to reinsert the clip shown in the tweezers. The adjacent rack to the left
has a broken clip which allows the small block to swing to the side and
cause the next rack to bind and let it's block snap out of the clip. I
managed to get the clip out but have no idea how to reinsert it. The first
slug has been removed so as not to damage it while trying to get the clip
back in place. The slug will be replaced when the clip is screwed back in
place.

Thanks,

Don WC4G
Charleston, SC
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 565 rack clip.JPG
Type: image/jpeg
Size: 199858 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20180807/4b25ca62/attachment-0001.jpe>
