[R-390] A 6kc. mechanical filter for a R-390a?

[Charles Steinmetz]

Al wrote:

> I'll have to have a look at how this 6kc filter is terminated etc in the
> Racal 6790 receiver. Its not one of the physically tiny torsional
> filters. The only info that I have with the filter is that it needs a
> 750 pf. cap for resonating on the input and output of the filter in the
> circuit.

The 6790 terminates the filter inputs with 4.7k ohms and the filter
outputs with 5k ohms (2x 10k in parallel).  The different filters use

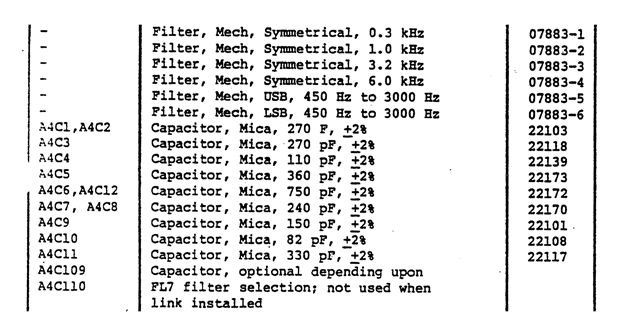

different resonating capacitors, from 82pF to 750pF (see table attached
below).

The manual does not provide sufficient information to say what the
correct resonating capacitors are for the 6kHz filter (at least, not in
the schematic and parts list -- I didn't read any of the text).  One of
the filters does use 750pF + 750pF, but I can't say which one from the
information at hand.  (Note that some of the filters use different value
capacitors on the input and output.)
