Stan wrote:

> Hi Charles,
> Another list member sent me the same info from URM-25B manual.
> Many thanks to both of you!

You're very welcome.  Sorry the image didn't come through. It was only
9kB, I can't imagine what the problem was.  Maybe the list server
doesn't like GIFs??  I'll try one more time with a PNG.

Correction:  Where I referred to the self-resonant frequency of  "C-101"
in my previous post, I meant C-601.

Charles


>> NB:  The 510pF capacitor is in *parallel* with the 0.1uF capacitor,
>> from input to output, for better performance at higher frequencies
>> (above the self-resonance frequency of C-101).



-------------- next part --------------
A non-text attachment was scrubbed...

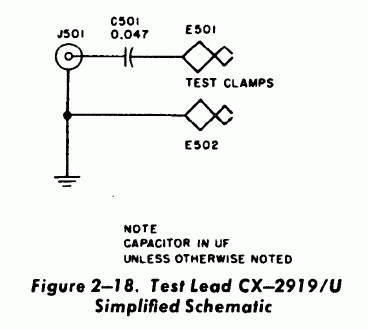

Name: URM-25F_CX-2919U_test_lead_schematic.png
Type: image/png
Size: 9015 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/r-390/attachments/20160613/2fe8793e/attachment.png>
