[R-390] Filter repair

[quartz55]

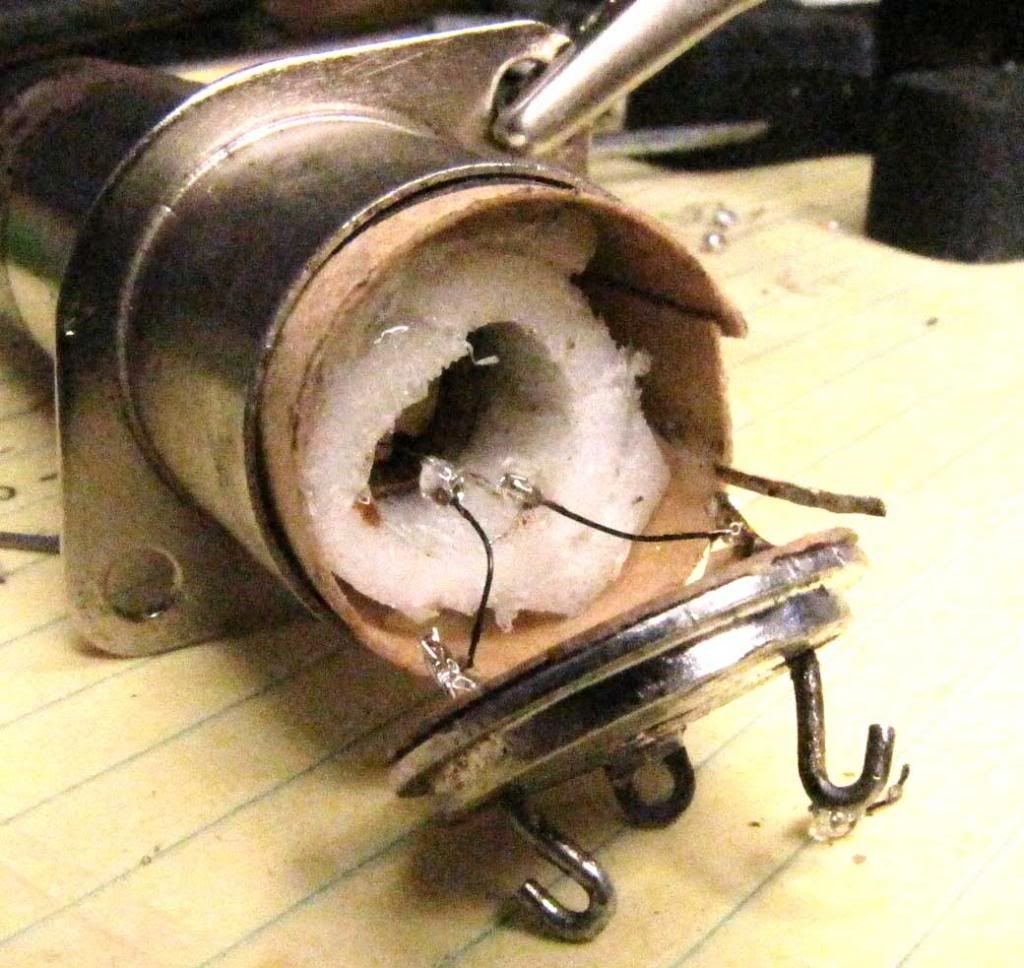

I had to take a break and do some yard work, but I'm back on it today.  Broke the wires trying to install one side, so back to the drawing board.  Too hard to solder #40 end to end, and also too hard to solder pieces together, so I soldered a couple of #34 to the header pins, and then to the #40 wires from the coil.  Added glue to all 4 joints and now waiting for glue to dry and see if I can stuff it back in the tube without breaking wires. Then comes the other side. This stuff is about the limit of my seeing, even with the headband magnifiers and also about the limit of what I can hold and maneuver.

Then I need to see if my test setup is working. Maybe I can get this one finished if I don't break any more wires today.

http://i251.photobucket.com/albums/gg287/DogTi/R390A/filterwirends_zpsdab6c395.jpg

Do image codes work in email?  That way people don't have to click on the link, maybe the pic will just show up in the email? Can't hurt to try.

[IMG]http://i251.photobucket.com/albums/gg287/DogTi/R390A/filterwirends_zpsdab6c395.jpg[/IMG]

N3DT
