 Hi,

I have recapped many of these IF's in R 390A's and here is what I do.

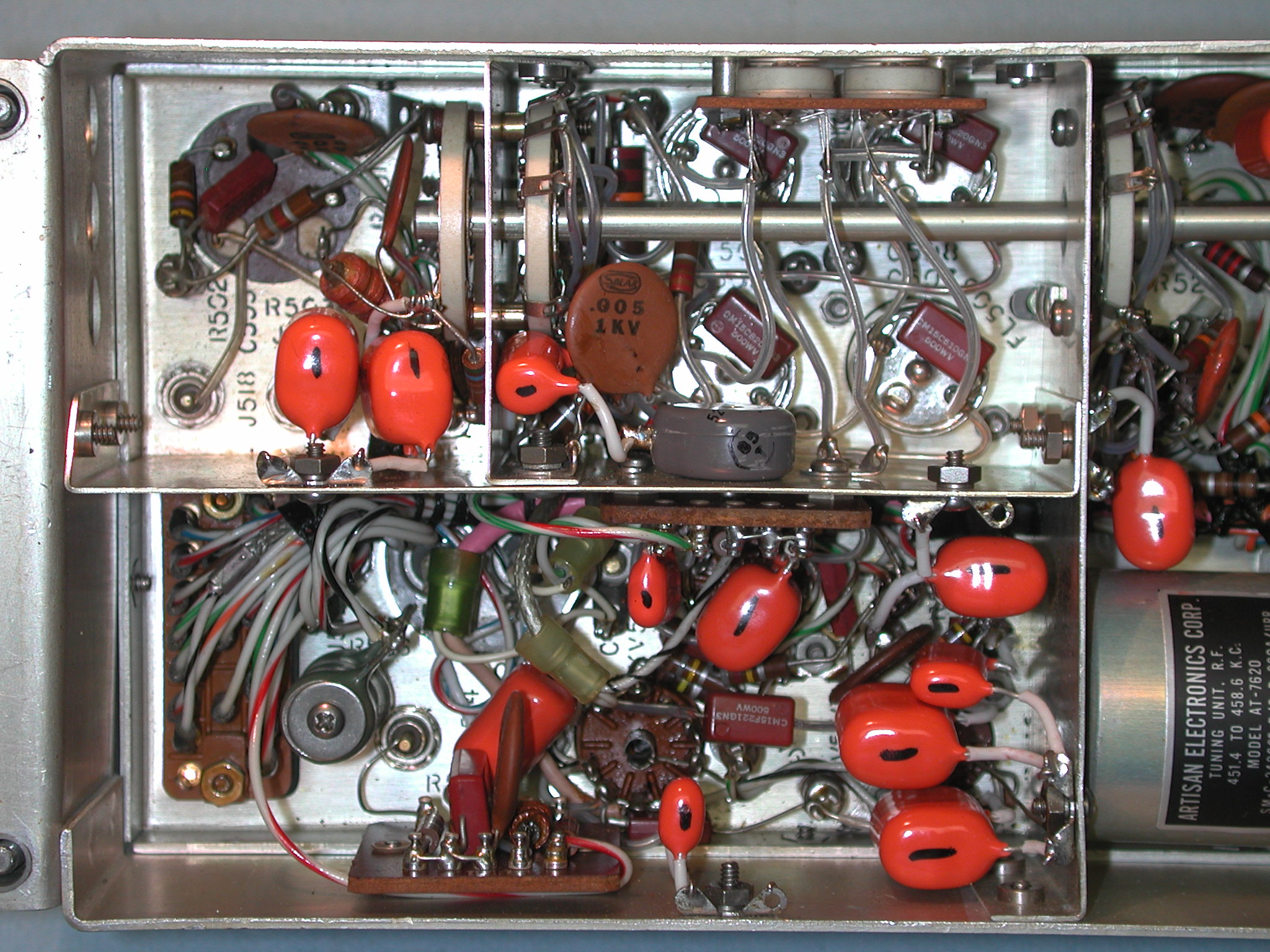

If you click on the link you will see part of a chassis I have done recently.
Others may use other capacitors or layouts but this is some of my work.

http://dsmlabs.com/Natan390A112009/Natan%2011%2030%202009/62.jpg

By changing the last two numbers from 62 to 63 will see another pic.
Other pics of that IF are at 64, 65, 75 and 80.
However, there are many other pics in that file, just change the last two numbers from  1 to 95. There may be some omissions/blank files.

Other files of interest are as follows.

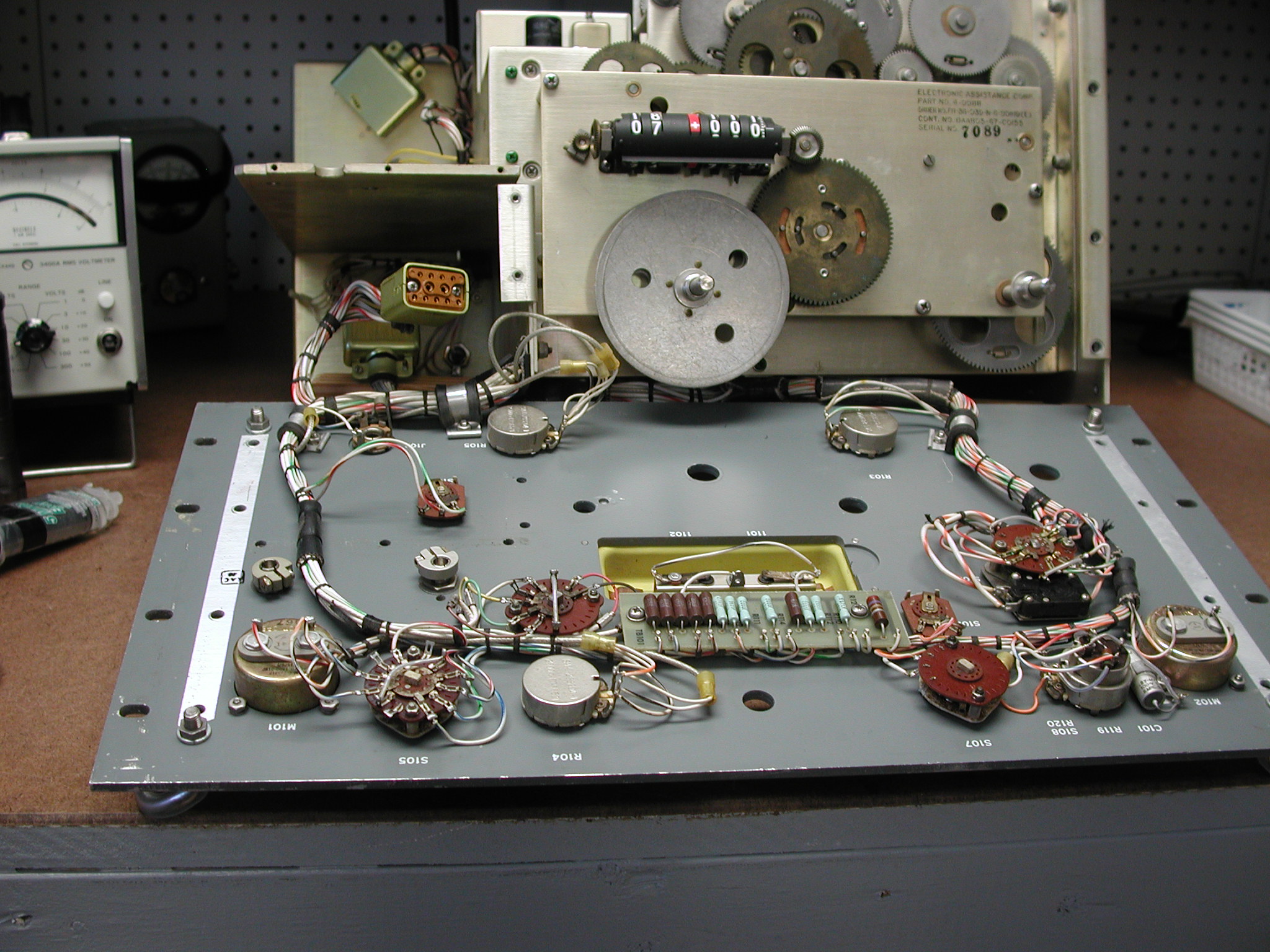

http://www.dsmlabs.com/Natan390A112009/Natan%2011%2020%202009/DSCN5317.JPG

Files 5317 ...  5441

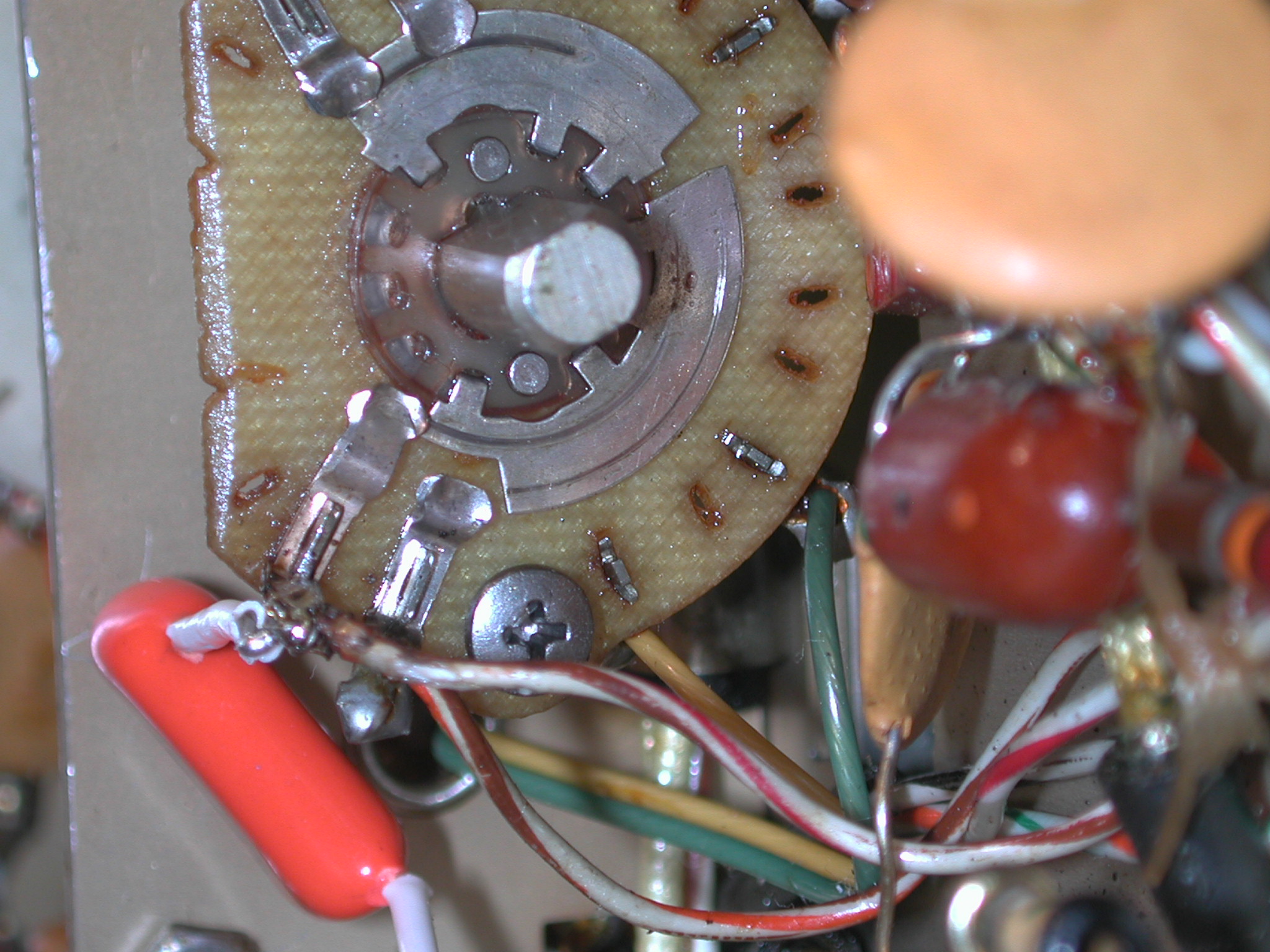

http://www.dsmlabs.com/Natan390A112009/Natan%2001%202010/DSCN5588.JPG

Files 5588 ....5740

Lots of boring pics but maybe some of it might help.

Remember just change the last 2 or 3 letters in the link, depending, and remember there may be some blanks and lots of extras.

73,
Glenn WA4AOS
