I see the beginnings of a club project.



From: ralph phillips [mailto:ke5hdf at sbcglobal.net]
Sent: Tuesday, July 21, 2020 11:08 PM
To: lcowden58 at comcast.net; 'OFARC'; MLandress
Subject: Re: [OFARC] home made keyer cable



We all have some unexpected free time, so take advantage of it to learn a new skill, make something, or progress toward some goal that has been on the back burner

Plus have a little fun!

Get Outlook for Android <https://aka.ms/ghei36>







On Tue, Jul 21, 2020 at 9:40 PM -0500, "MLandress" <gammamann at aol.com> wrote:

I think Ralph has way too much time on his hands.  Heres my goto keyer.  Plus a Bencher and J38.



From: ofarc-bounces at mailman.qth.net [mailto:ofarc-bounces at mailman.qth.net] On Behalf Of lcowden58 at comcast.net
Sent: Tuesday, July 21, 2020 9:06 PM
To: Ralph; OFARC
Subject: Re: [OFARC] home made keyer cable



Here are my homemade cables. I didn't feel like removing the wires on my paddle so you get to see how I wired it to the Bencher.



The straight key cable is a mono audio cable with crimped rings. Also shown is my U.S. Army Signal Corps J-38 key.



Paddles are much, MUCH easier to learn with.



Lee

NR5Q









On Jul 21, 2020 8:18 PM, Ralph <ke5hdf at sbcglobal.net> wrote:

lets start with a very easy project..... make you own paddle/keyer cable.

for a straight key, cut 2 pieces of 20ga wire about 30 inches long

for a paddle, cut 3 pieces

twist the wires together at each end

put one end in a vise or other method to secure it

the other end goes into the chuck of your drill motor

trigger the drill to SLOWLY turn the wire.  it will make a nice twisted set

stop when you are happy with the twist.

get a 1/8 or 1/4 inch plug... depending on your radio.


for a straight key, use a MONO plug.  it does not matter which wire goes
to which

for a paddle, use a STEREO plug.  The common/center blade goes to the
LONG (common) connection in the plug.  the left contact goes to the tip,
right contact goes to the ring.

here is a photo of my new paddle cable


Ralph,    KE5HDF




______________________________________________________________
OFARC mailing list
Home: http://mailman.qth.net/mailman/listinfo/ofarc
Help: http://mailman.qth.net/mmfaq.htm
Post: mailto:OFARC at mailman.qth.net

This list hosted by: http://www.qsl.net
Please help support this email list: http://www.qsl.net/donate.html
Message delivered to lcowden58 at comcast.net



-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/ofarc/attachments/20200722/69a6a95c/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

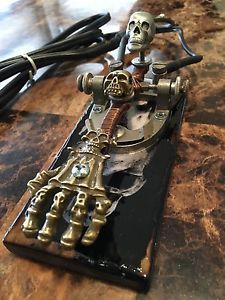

Name: skullkey.jpg
