lets start with a very easy project..... make you own paddle/keyer cable.

for a straight key, cut 2 pieces of 20ga wire about 30 inches long

for a paddle, cut 3 pieces

twist the wires together at each end

put one end in a vise or other method to secure it

the other end goes into the chuck of your drill motor

trigger the drill to SLOWLY turn the wire.  it will make a nice twisted set

stop when you are happy with the twist.

get a 1/8 or 1/4 inch plug... depending on your radio.


for a straight key, use a MONO plug.  it does not matter which wire goes
to which

for a paddle, use a STEREO plug.  The common/center blade goes to the
LONG (common) connection in the plug.  the left contact goes to the tip,
right contact goes to the ring.

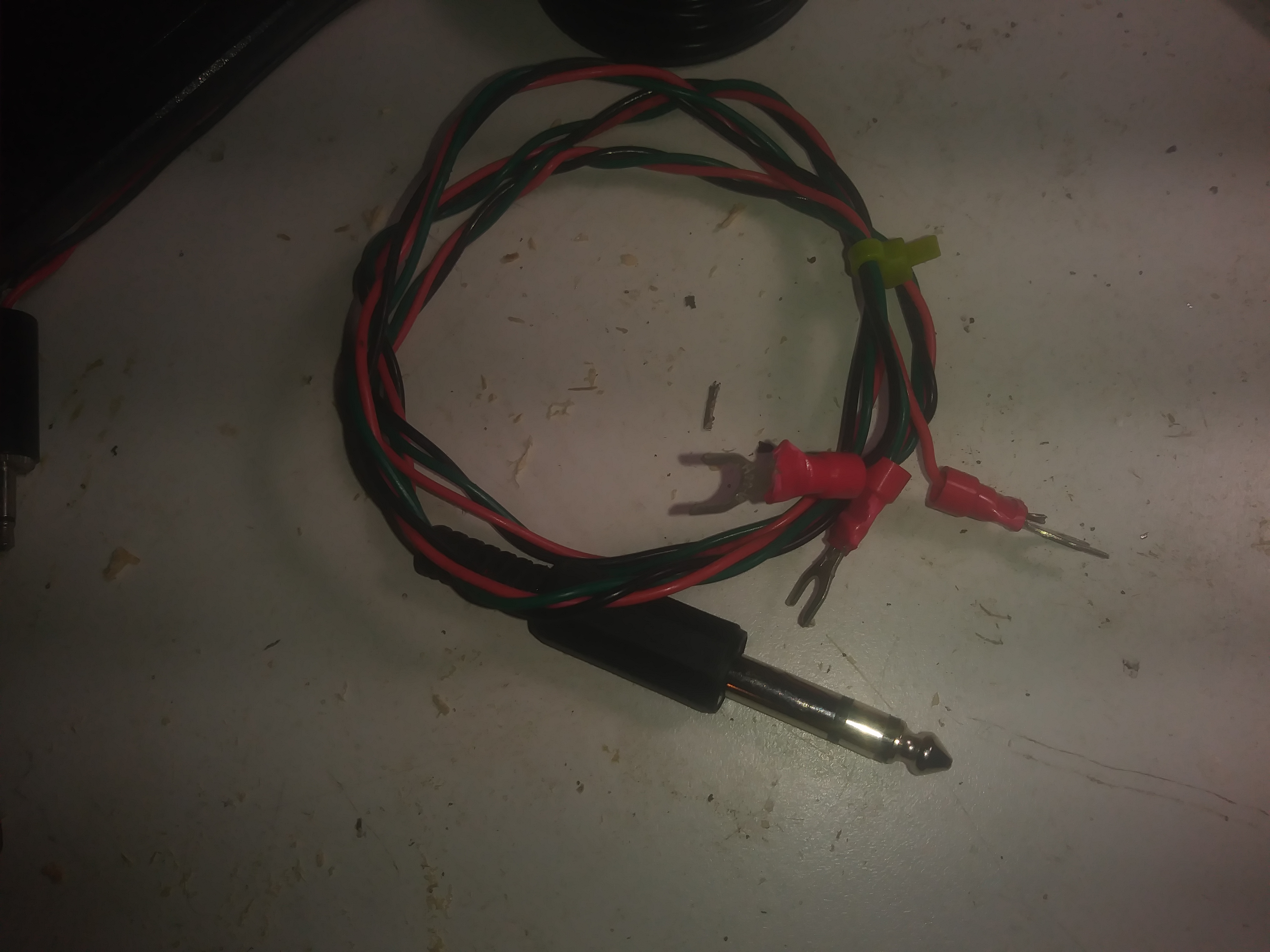

here is a photo of my new paddle cable


Ralph,    KE5HDF
